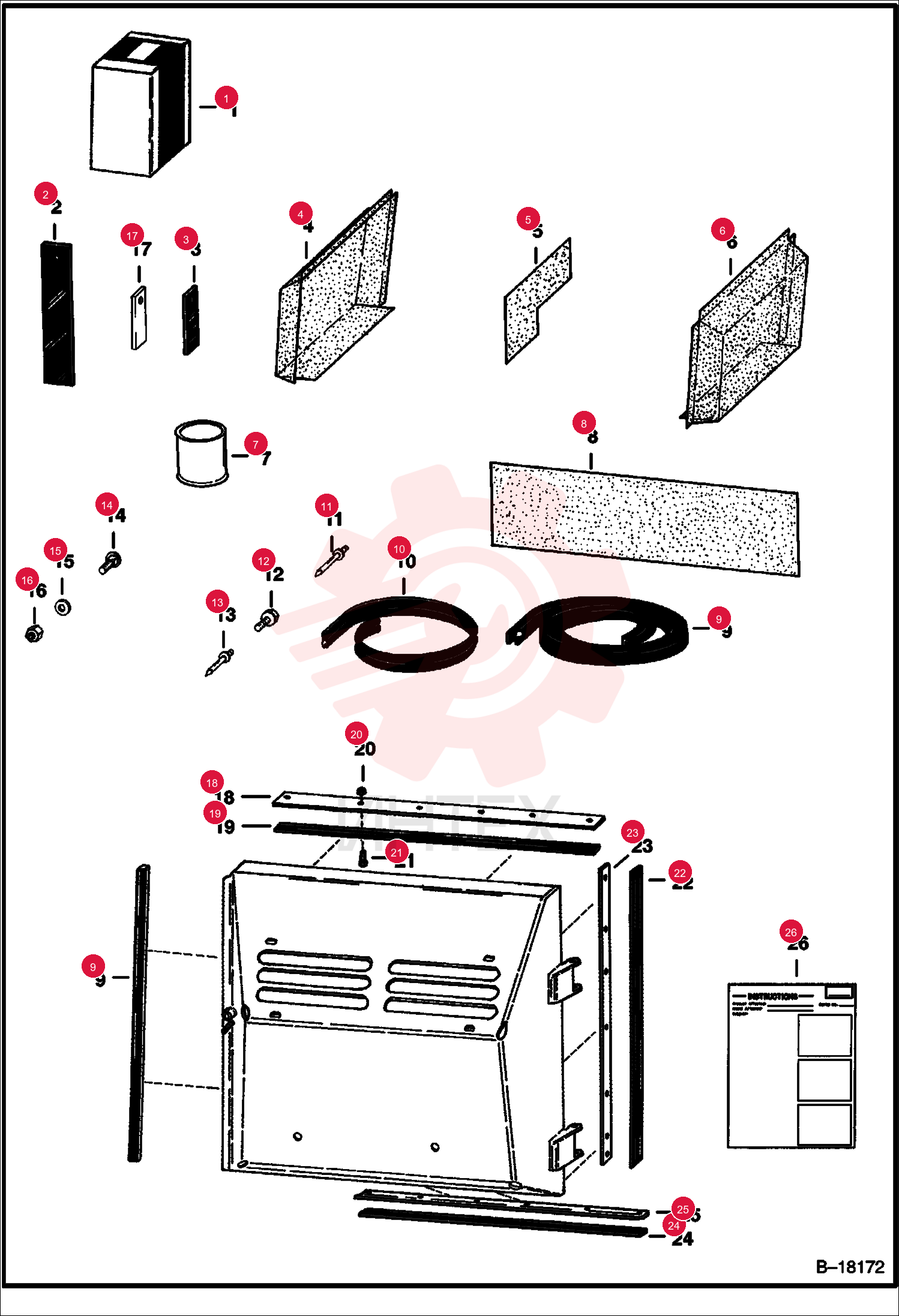

KIT, SCREEN 6565153

KIT, SCREEN 6565153

KIT, SCREEN 6565153

1 6565153

  • 6565153 - KIT
  • SCREEN
  • Ref. 2 - 26

2 6565134

  • 6565134 - COVER
  • rubber - Lift Cylinder

3 6565141

  • 6565141 - COVER
  • rubber - For Slots

4 6565021

  • 6565021 - SCREEN
  • R.H.

5 6565118

  • 6565118 - SCREEN

6 6565022

  • 6565022 - SCREEN
  • L.H.

7 6633583

  • 6633583 - SEALANT
  • POLYURETHANE 300 ML
  • Was 6555349

8 6565142

  • 6565142 - SCREEN
  • rear door

9 6513152

  • 6513152 - SEAL
  • BULK/FT 25
  • air duct - bulk - sold per foot

10 6591035

  • 6591035 - RIVET
  • For Rear Door

11 84G3716

  • 84G3716 - SCREW THD ROLLING TT

12 6515213

  • 6515213 - RIVET
  • For Cab Screen

13 25E17

  • 25E17 - WASHER FLAT PLAIN

14 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

15 6567664

  • 6567664 - COVER
  • spring

16 6567303

  • 6567303 - STRIP

17 6567304

  • 6567304 - SEAL
  • DOOR

18 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

19 17C516

  • 17C516 - BOLT

20 6569876

  • 6569876 - SEAL

21 6569877

  • 6569877 - STRIP

22 6569937

  • 6569937 - SEAL

23 6569938

  • 6569938 - STRIP
