Bobcat
/
642.0
/

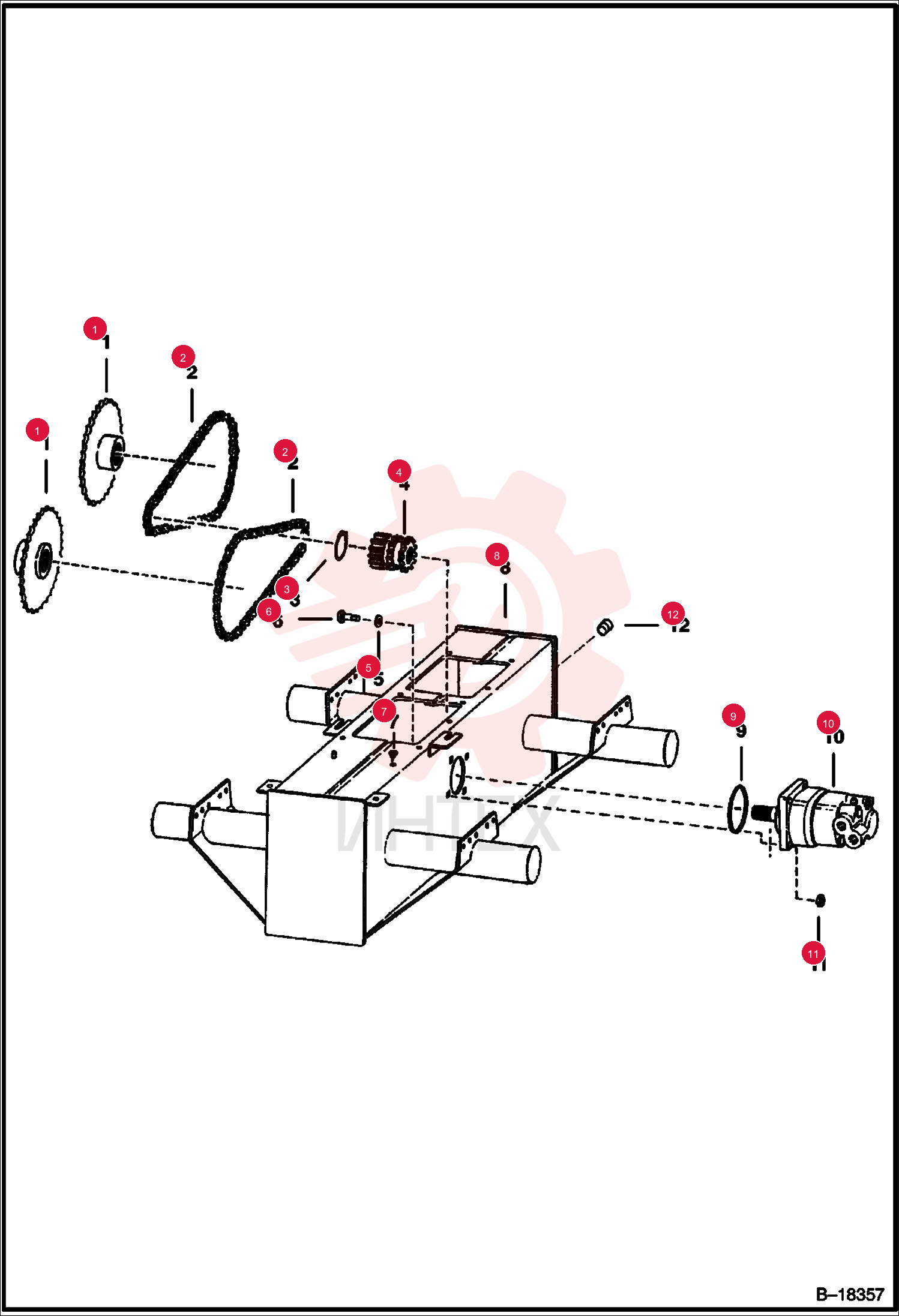

LINK 6515191

LINK 6515191

LINK 6515191

1 6515191

  • 6515191 - LINK

2 6557830

  • 6557830 - CHAIN
  • DRIVE
  • drive

3 791442

  • 791442 - RING SNAP

4 6714469

  • 6714469 - SPROCKET
  • Was 6565185

5 6564740

  • 6564740 - WASHER

6 6564741

  • 6564741 - BOLT WHEEL

7 6558506

  • 6558506 - PLUG
  • breather

8 6565242

  • 6565242 - CHAINCASE

9 25K30424

  • 25K30424 - O RING 10

10 86D8

  • 86D8 - NUT PRETRQ HEX LOCK

11 40K12

  • 40K12 - PLUG
