645.0
/

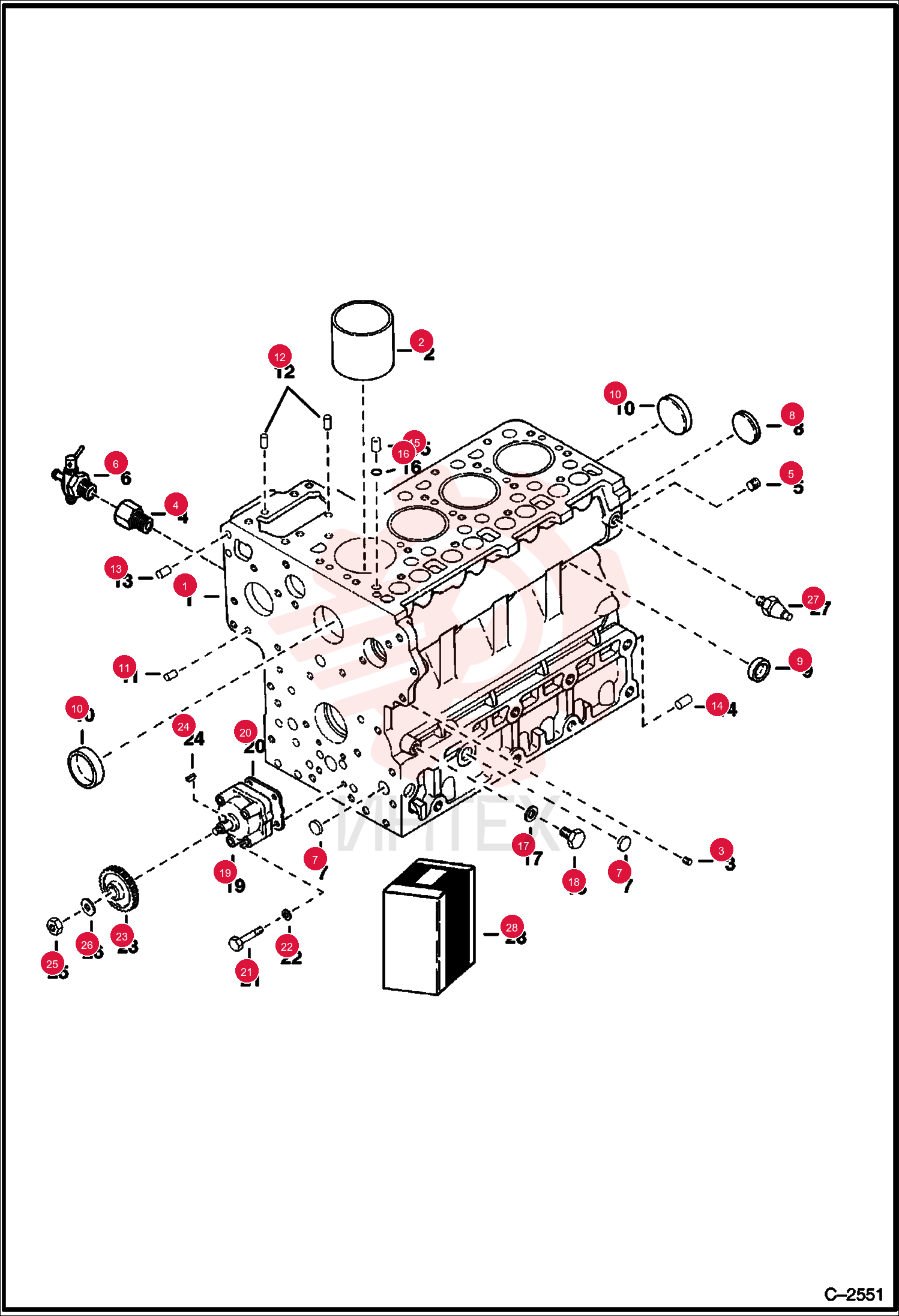

CRANKCASE 6598183

CRANKCASE 6598183

CRANKCASE 6598183

1 6598183

  • 6598183 - CRANKCASE
  • assy. - W/Ref. 2-15

2 6598109

  • 6598109 - LINER
  • CYL CRANKCASE
  • cylinder

3 6652574

  • 6652574 - PLUG

4 3974871

  • 3974871 - CONNECTOR

5 6652575

  • 6652575 - PLUG

6 6672190

  • 6672190 - VALVE
  • DRAIN
  • Was 6630177

7 4FM18

  • 4FM18 - PLUG
  • expansion

8 4FM45

  • 4FM45 - PLUG
  • expansion

9 3974389

  • 3974389 - PLUG
  • sealing

10 3974390

  • 3974390 - PLUG
  • sealing

11 3974393

  • 3974393 - PIN
  • straight

12 3974394

  • 3974394 - PIN
  • straight

13 3974395

  • 3974395 - PIN
  • straight

14 3974868

  • 3974868 - PIN
  • straight

15 3974037

  • 3974037 - PIN
  • pipe

16 3974038

  • 3974038 - O-RING

17 3974095

  • 3974095 - GASKET
  • METAL

18 6655884

  • 6655884 - PLUG
  • Was 3974840B

19 6689441

  • 6689441 - НАСОС МАСЛЯНЫЙ
  • BOBCAT

20 1547135010

  • 1547135010 - НАСОС МАСЛЯНЫЙ
  • KUBOTA

21 1547135012

  • 1547135012 - НАСОС МАСЛЯНЫЙ
  • KUBOTA

22 1547135013

  • 1547135013 - НАСОС МАСЛЯНЫЙ
  • KUBOTA

23 253704000

  • 253704000 - НАСОС МАСЛЯНЫЙ
  • CARRIER

24 PO60000

  • PO60000 - НАСОС МАСЛЯНЫЙ
  • AUTOWELT

25 6666782

  • 6666782 - GASKET
  • Was 3974456

26 4CM650

  • 4CM650 - HEX BOLT

27 6EM60

  • 6EM60 - WASHER

28 3975441

  • 3975441 - GEAR
  • CAMSHAFT

29 6969805

  • 6969805 - KEY
  • FEATHER
  • Was 15JM00410B

30 6653888

  • 6653888 - NUT

31 3974870

  • 3974870 - WASHER

32 6969775

  • 6969775 - SWITCH
  • OIL PRESSURE
  • oil PSI - Was 6652576

33 6630555

  • 6630555 - KIT
  • GASKET
  • - lower
