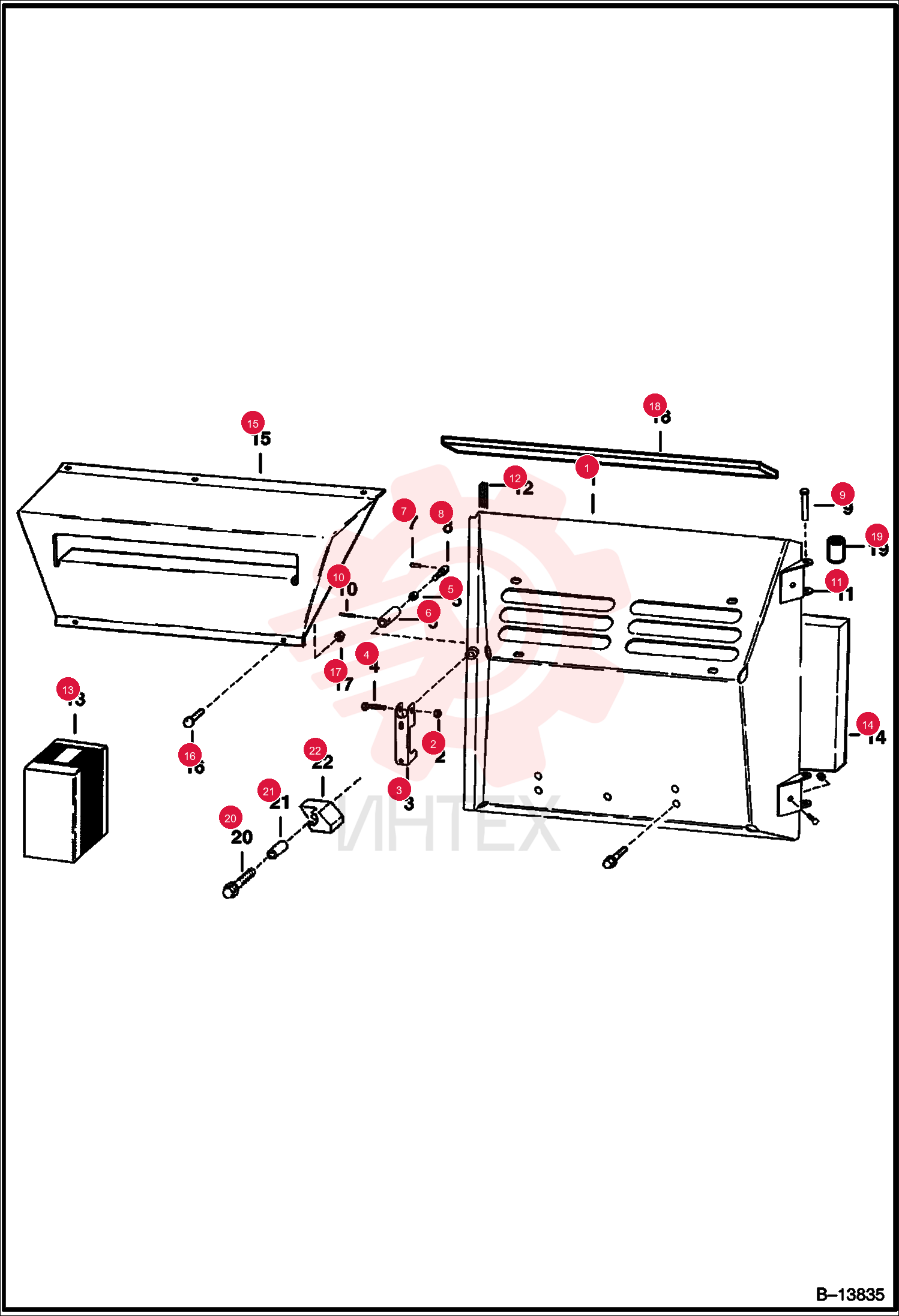

TAILGATE 6704328

TAILGATE 6704328

TAILGATE 6704328

1 6704328

  • 6704328 - TAILGATE

2 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

3 6563681

  • 6563681 - HANDLE

4 38C624

  • 38C624 - BOLT 5
  • Was 6564599

5 6565627

  • 6565627 - NUT 5

6 6565628

  • 6565628 - NUT

7 6599361

  • 6599361 - PIN 5

8 6565629

  • 6565629 - SCREW

9 6564340

  • 6564340 - PIN HINGE

10 33G404

  • 33G404 - SET SCRW5

11 6562225

  • 6562225 - HINGE

12 6579448

  • 6579448 - KIT
  • LATCH REAR
  • Ref. 2-8 & 10

13 6577264

  • 6577264 - INSULATION

14 6579562

  • 6579562 - SHIELD

15 10C616

  • 10C616 - BOLT SHRT SQ NK RHD? 3/8-16X1 GRD 5

16 81D6

  • 81D6 - NUT

17 6579420

  • 6579420 - INSULATION

18 6562225

  • 6562225 - HINGE

19 84G3724

  • 84G3724 - SCREW THD ROLLING TT

20 6563612

  • 6563612 - BUSHING PIVOT

21 6577712

  • 6577712 - STOP
