645.0
/

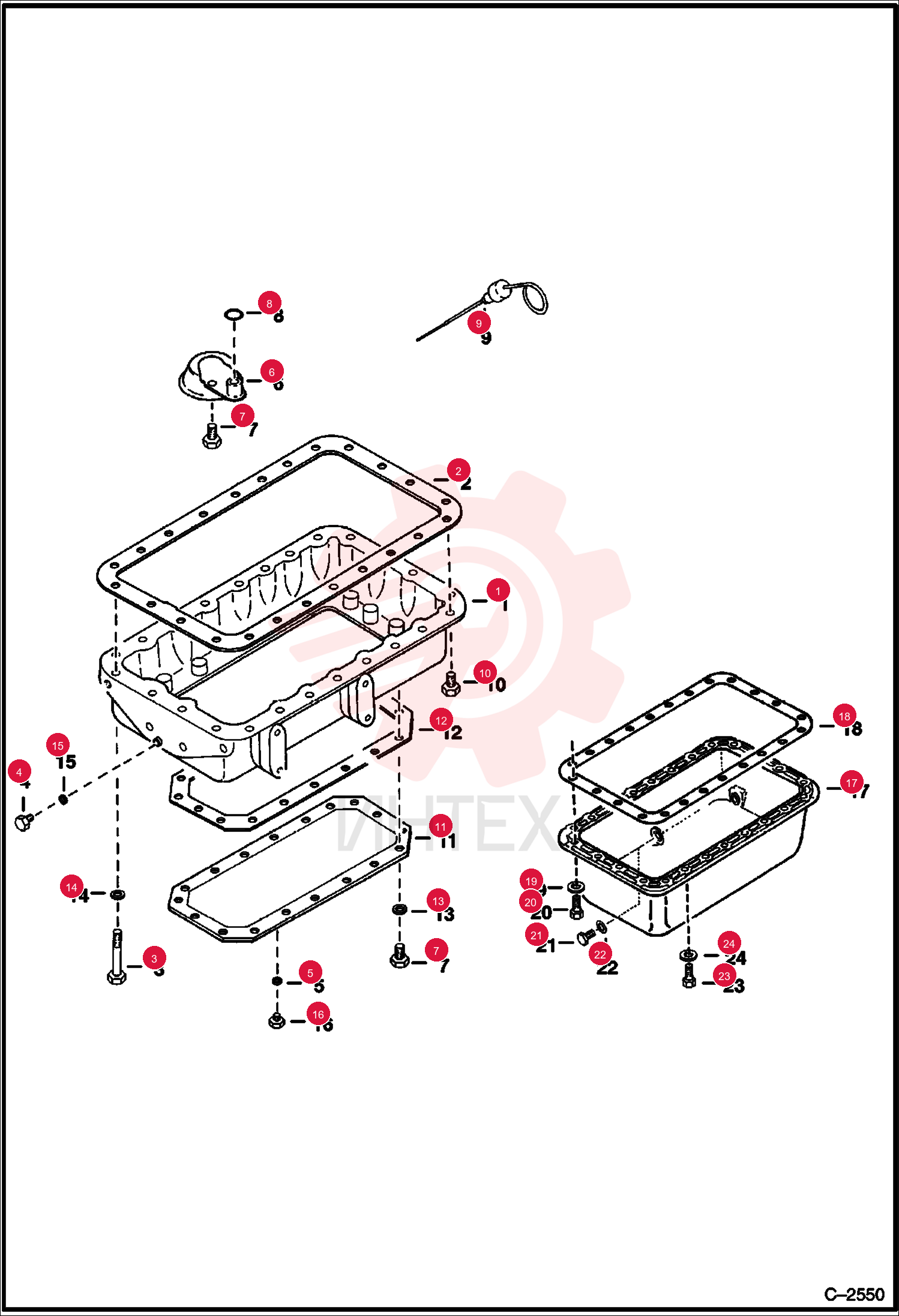

PACKING 6655474

PACKING 6655474

PACKING 6655474

1 6655474

  • 6655474 - PACKING
  • Use W/Two Piece Oil Pan

2 5CM1030

  • 5CM1030 - SCREW FL THD HEX CAP
  • 12 or 13

3 6630815

  • 6630815 - PLUG

4 6680484

  • 6680484 - GASKET
  • Was 3974403

5 6655194

  • 6655194 - O. FILTER
  • Was 6653568

6 4CM816

  • 4CM816 - SCREW HEX HD 8.8
  • Was 1CM816

7 3966516

  • 3966516 - O-RING

8 6598181

  • 6598181 - DIPSTICK
  • oil

9 6653687

  • 6653687 - BOLT
  • 12 or 13 - W/Washer

10 3974411

  • 3974411 - GASKET

11 6EM80

  • 6EM80 - WASHER
  • SPRING

12 8EM100

  • 8EM100 - WASHER
  • spring

13 6631046

  • 6631046 - GASKET

14 3974402

  • 3974402 - PLUG

15 6640727

  • 6640727 - GASKET
  • Use W/One Piece Oil Pan - Was 6640727

16 6640732

  • 6640732 - WASHER

17 6640728

  • 6640728 - BOLT

18 3974402

  • 3974402 - PLUG
  • Was - 6640729

19 6640730

  • 6640730 - GASKET
  • WASHER

20 6669192

  • 6669192 - WASHER
