700.0
/

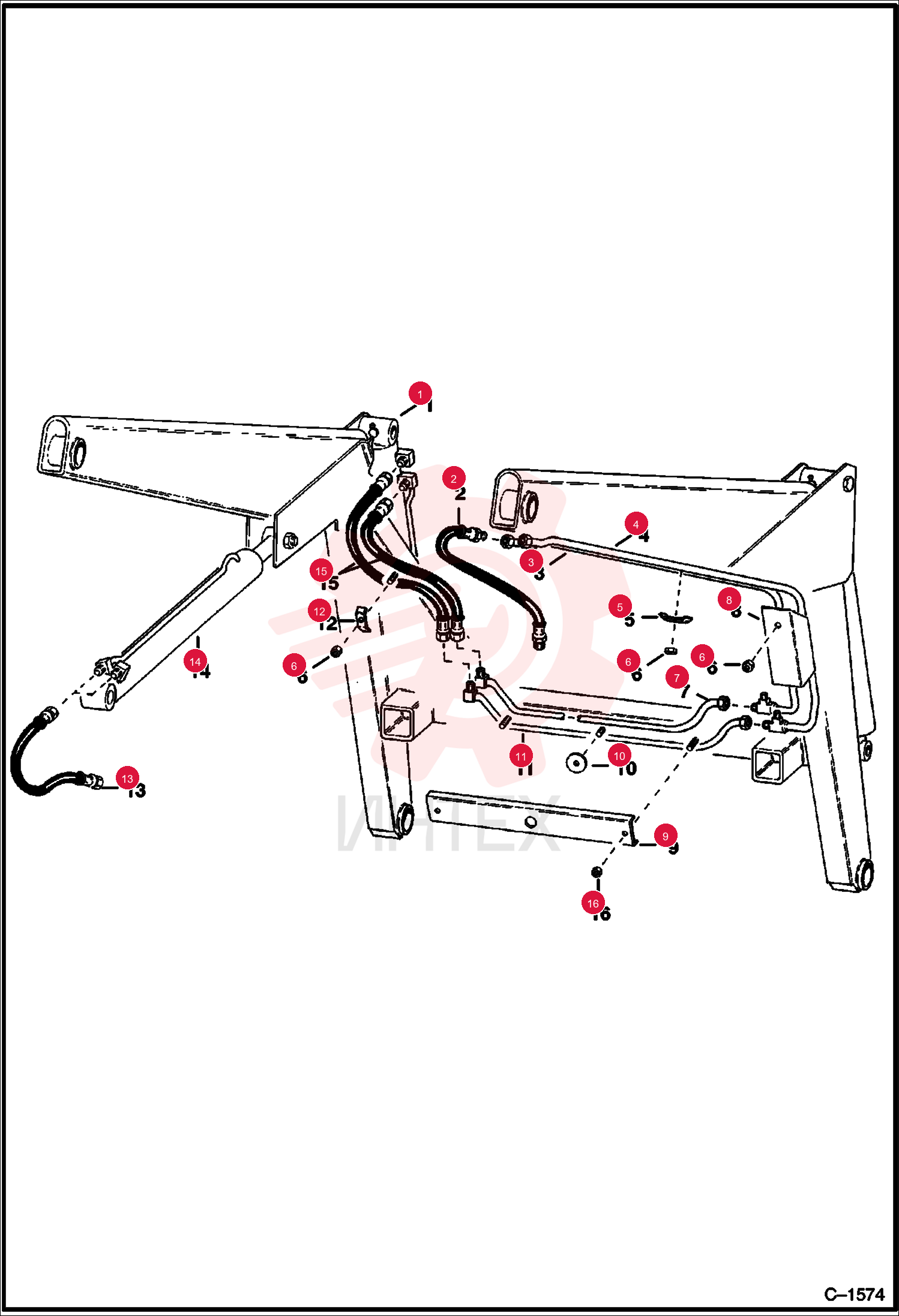

ASSY, HOSE 6541094

ASSY, HOSE 6541094

ASSY, HOSE 6541094

1 6541094

  • 6541094 - ASSY
  • HOSE

2 6541632

  • 6541632 - TUBE

3 6541631

  • 6541631 - TUBE

4 6502203

  • 6502203 - CLAMP

5 81D6

  • 81D6 - NUT

6 6541634

  • 6541634 - TUBE

7 6546214

  • 6546214 - SHIELD

8 6541636

  • 6541636 - CHANNEL

9 25E15

  • 25E15 - WASHER FLAT PLAIN

10 6541633

  • 6541633 - TUBE ASSEMBLY

11 6502426

  • 6502426 - CLAMP

12 6541095

  • 6541095 - ASSY
  • HOSE

13 6540229

  • 6540229 - CYLINDER
  • LIFT

14 6551935

  • 6551935 - ASSY
  • HOSE

15 57D6

  • 57D6 - NUT HEX FLNG GR8
