Bobcat
/
700.0
/

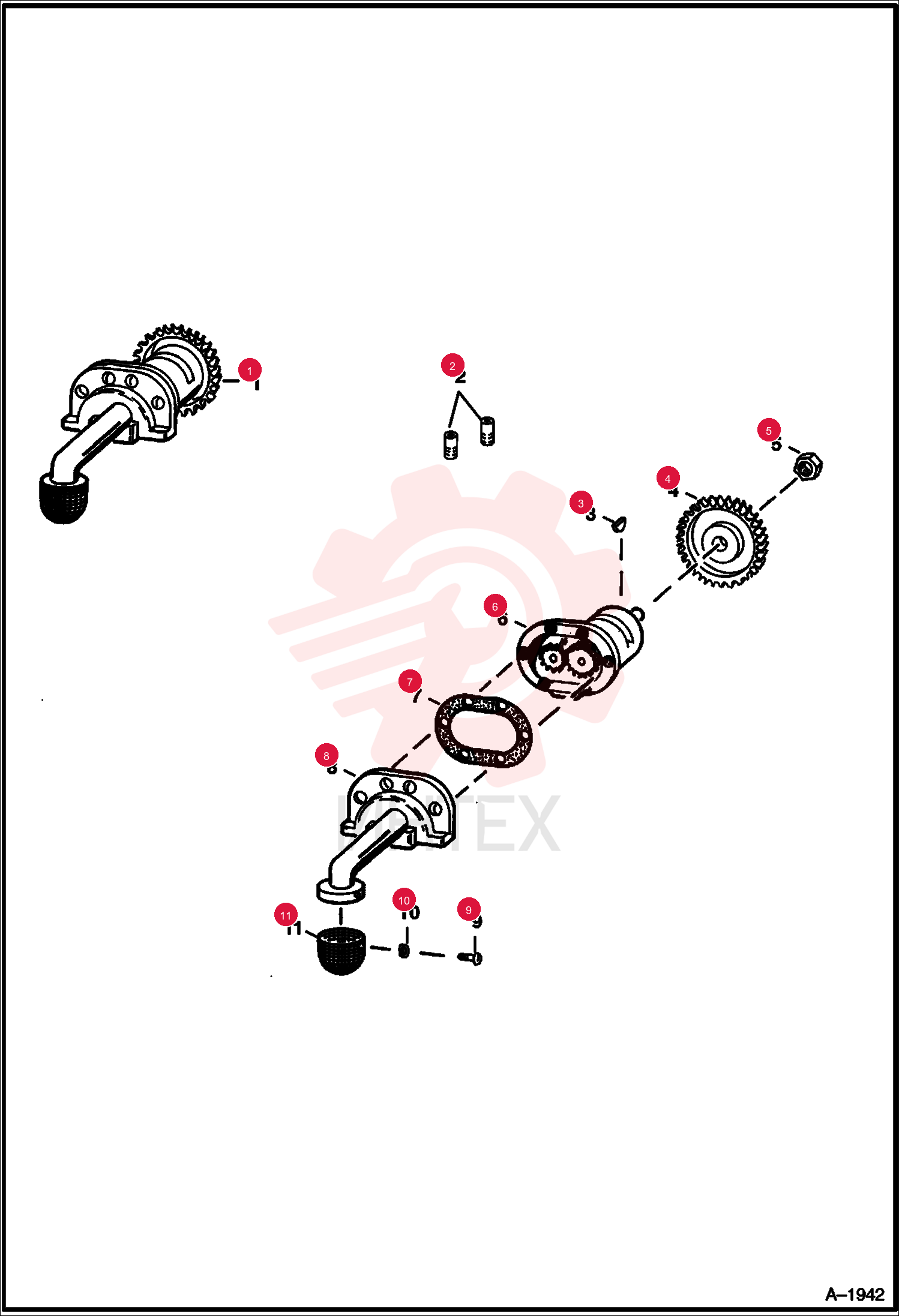

PUMP 6512389

PUMP 6512389

PUMP 6512389

1 6512389

  • 6512389 - PUMP
  • Ref. 3-11

2 6516640

  • 6516640 - NOZZLE

3 6516638

  • 6516638 - GEAR

4 8D7

  • 8D7 - NUT

5 6516645

  • 6516645 - GASKET

6 85G1004

  • 85G1004 - SCREW
  • Was 86G001004B

7 21E10

  • 21E10 - WASHER

8 6516650

  • 6516650 - SCREEN
