700.0
/

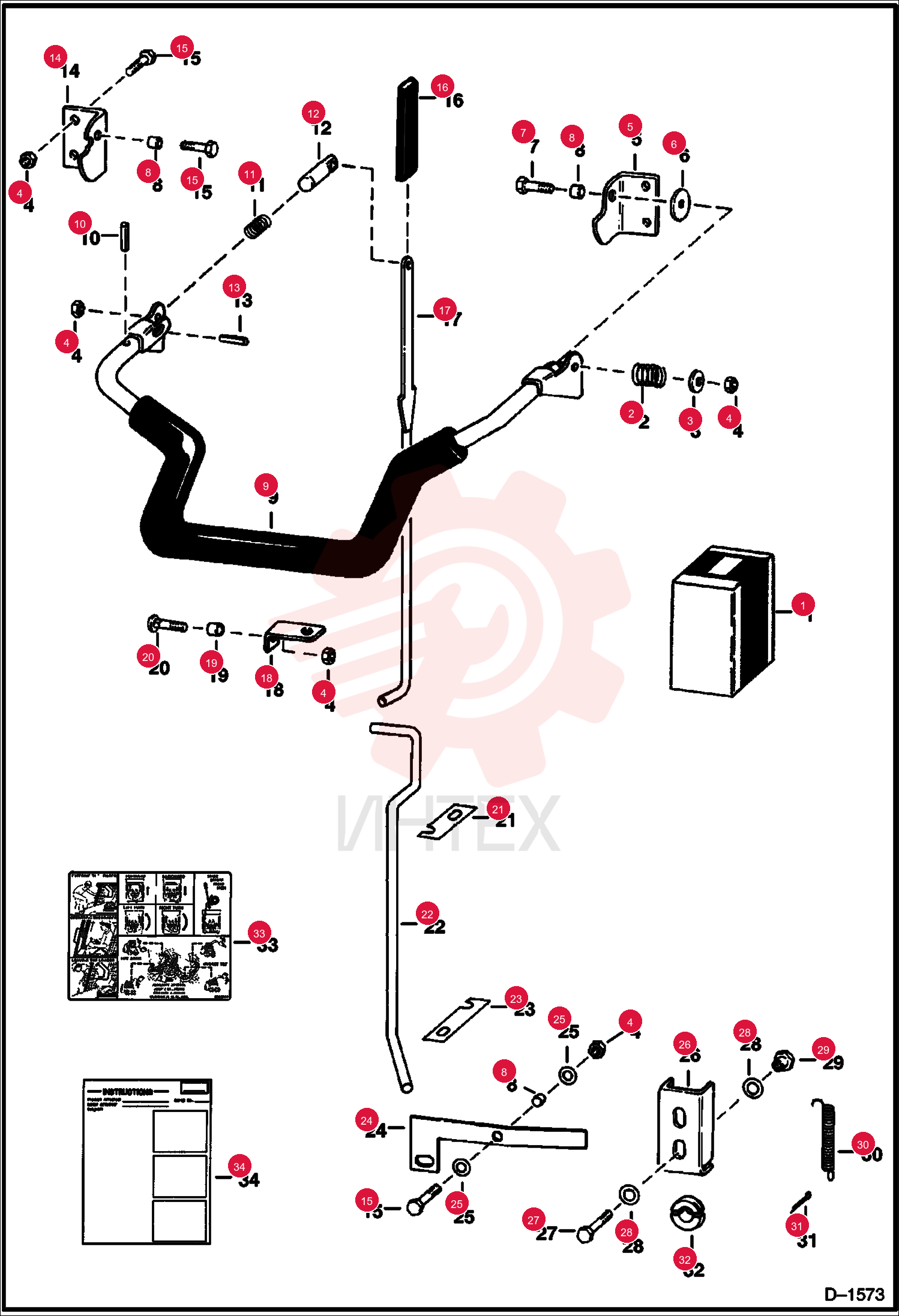

SPRING 6562126

SPRING 6562126

SPRING 6562126

1 6562126

  • 6562126 - SPRING

2 27E6

  • 27E6 - WASHER HARDEN PLAIN

3 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

4 6562127

  • 6562127 - WASHER

5 17C636

  • 17C636 - BOLT

6 6544654

  • 6544654 - BUSHING

7 14J3716

  • 14J3716 - PIN

8 6702430

  • 6702430 - SPRING
  • COMPRESSION
  • Was 6563149

9 6563200

  • 6563200 - PIN

10 14J3724

  • 14J3724 - PIN

11 6563198

  • 6563198 - BRACKET

12 17C616

  • 17C616 - BOLT 5

13 6563181

  • 6563181 - BRACKET

14 6555798

  • 6555798 - SPACER

15 17C620

  • 17C620 - BOLT

16 616791

  • 616791 - WASHER

17 17C612

  • 17C612 - SCREW HEX CAP

18 6700170

  • 6700170 - WASHER
  • plastic - Was 6563152

19 6559479

  • 6559479 - NUT RETAINING

20 1F416

  • 1F416 - PIN
  • Was 1F-412

21 6569022

  • 6569022 - DECAL
  • WARNING
