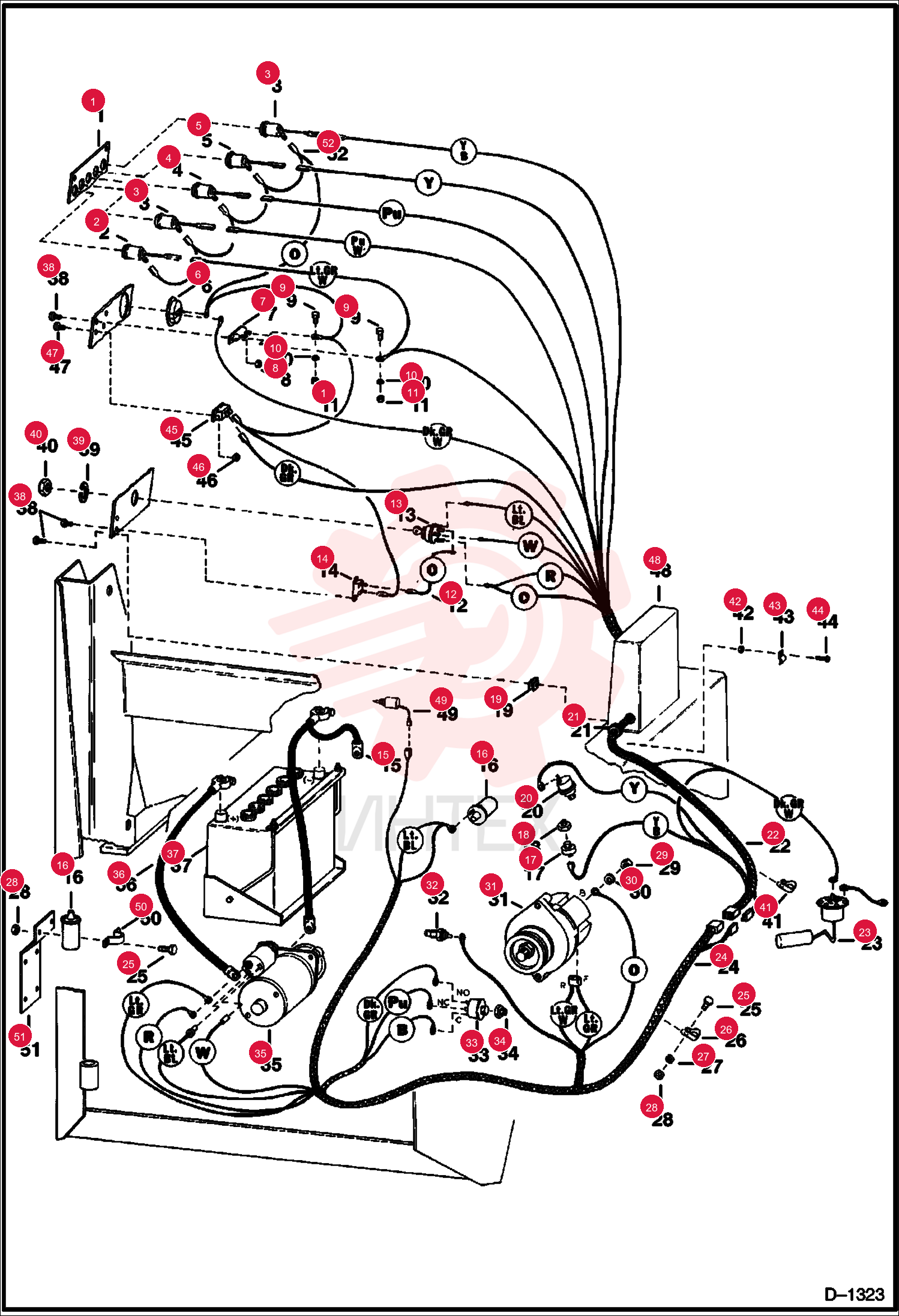

PANEL 6543185
1 6543185
- 6543185 - PANEL
- instrument
2 6669665
- 6669665 - GAUGE FUEL
- W/O clamp
3 556489
- 556489 - RESISTOR
4 12D10
- 12D10 - NUT
5 85G804
- 85G804 - SCREW
6 12E8
- 12E8 - WASHER
7 12D8
- 12D8 - NUT HEX MACH SCREW
8 6505412
- 6505412 - KEY 5
- ignition
9 6519907
- 6519907 - SWITCH
- ignition
10 6512153
- 6512153 - BREAKER
- CIRCUIT
11 6555785
- 6555785 - CABLE
- ground
12 881097
- 881097 - COIL ASSEMBLY
13 534711
- 534711 - CONNECTOR
14 1303869
- 1303869 - NUT
- spring
15 6519334
- 6519334 - SWITCH
- hydrostatic oil pressure
16 730630
- 730630 - GROMMET
17 6554979
- 6554979 - HARNESS
- wiring
18 5204933
- 5204933 - SENDERKIT
- fuel level
19 17C512
- 17C512 - BOLT 5
20 30H30
- 30H30 - CLIP
21 25E15
- 25E15 - WASHER FLAT PLAIN
22 91D5
- 91D5 - NUT 5
- Was 81D000005B
23 12D12
- 12D12 - NUT
24 12E12
- 12E12 - WASHER
25 6630821
- 6630821 - SWITCH
- engine temperature
26 6512346
- 6512346 - SWITCH
- engine oil pressure
27 19F1
- 19F1 - BUSHING
28 6514504
- 6514504 - CABLE
- battery
29 6630152
- 6630152 - CAP
- battery
30 7312552
- 7312552 - BATTERY 650 CCA DRY
- - Was 6674687
31 7269859
- 7269859 - BATTERY 650 CCA
32 87G1008
- 87G1008 - SCREW
33 6E9
- 6E9 - LOCKWASHE
34 6502904
- 6502904 - NUT
35 61D4
- 61D4 - NUT 5
36 5H7
- 5H7 - CLIP
37 6664886
- 6664886 - METER HOUR
- Was 6631657
38 12D6
- 12D6 - NUT HEX MACH SCREW
39 87G608
- 87G608 - SCREW
40 6541569
- 6541569 - BOX
41 6555915
- 6555915 - SOLENOID
- SHUTOFF FUEL
- carburetor
42 6558257
- 6558257 - BRACKET
43 6554976
- 6554976 - WIRE
