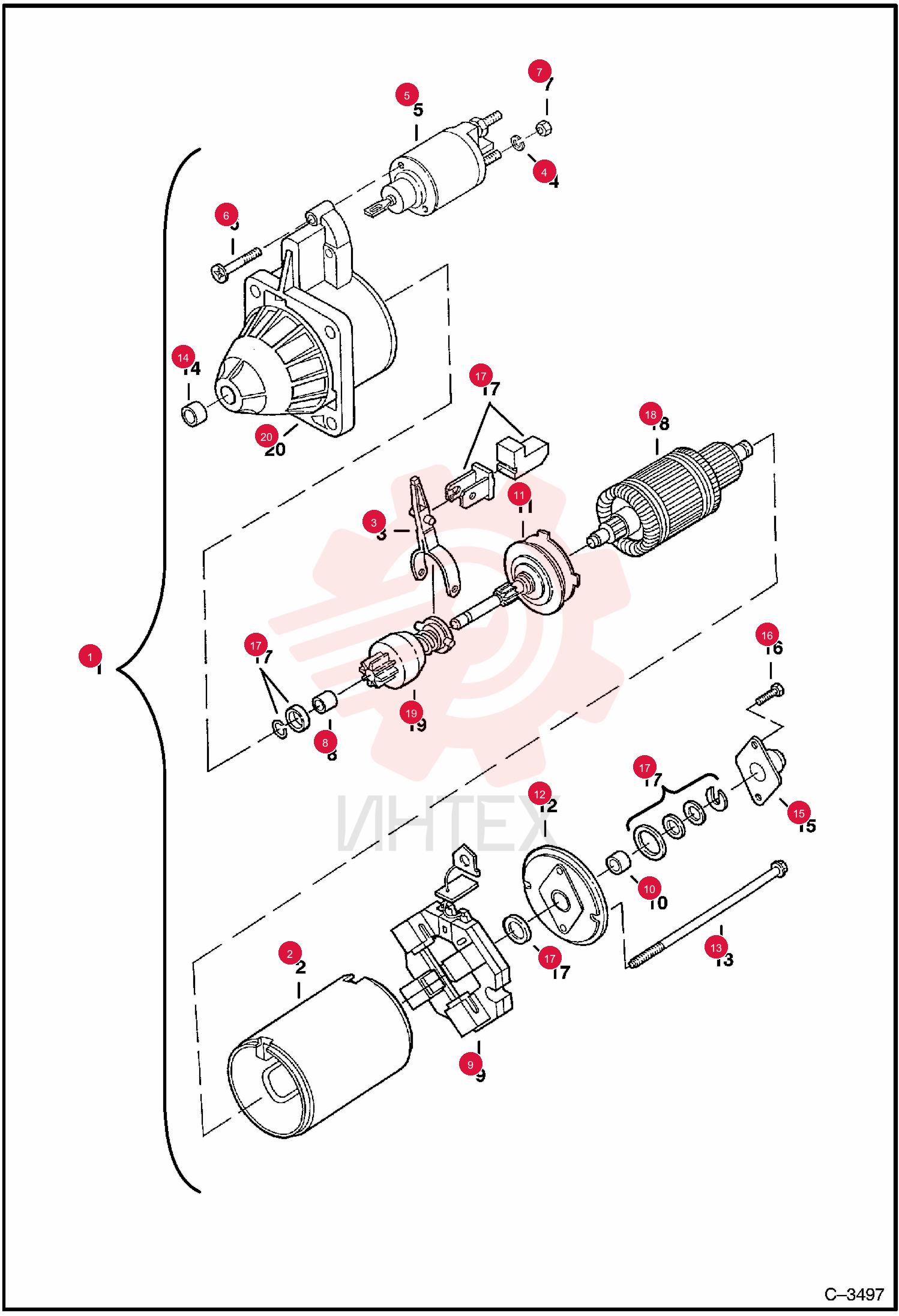

STARTER 6670269

STARTER 6670269

STARTER 6670269

1 6670269

  • 6670269 - STARTER

2 6670267

  • 6670267 - HOUSING

3 6670255

  • 6670255 - LEVER

4 6670263

  • 6670263 - WASHER

5 6670256

  • 6670256 - SCREW

6 6670266

  • 6670266 - BUSHING

7 6670264

  • 6670264 - BRSHHOLDR
  • Brush - W/Brushs

8 6670259

  • 6670259 - BUSHING

9 6670253

  • 6670253 - GEAR

10 6670258

  • 6670258 - HOUSING

11 6670260

  • 6670260 - SCREW

12 6513291

  • 6513291 - BUSHING

13 6670261

  • 6670261 - CAP

14 6670262

  • 6670262 - SCREW

15 6670268

  • 6670268 - KIT
  • SHIM
  • armature hardware

16 6670257

  • 6670257 - ARMATURE

17 6670265

  • 6670265 - DRIVE

18 6670254

  • 6670254 - HOUSING
