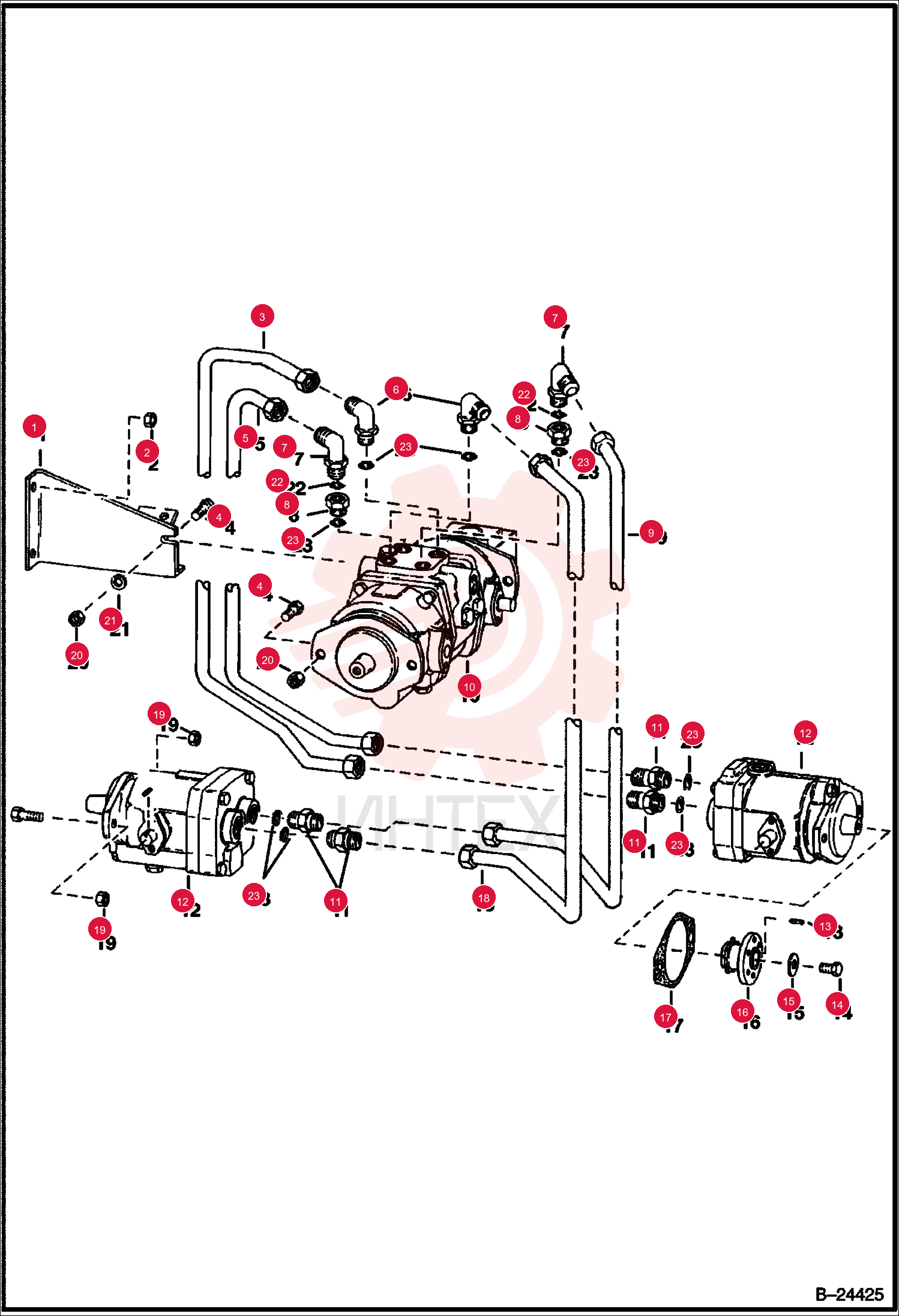

SUPPORT, BRACKET 6546872

SUPPORT, BRACKET 6546872

SUPPORT, BRACKET 6546872

1 6546872

  • 6546872 - SUPPORT
  • BRACKET

2 61D6

  • 61D6 - NUT HEX FINISHED GR5

3 6547607

  • 6547607 - TUBE

4 17C824

  • 17C824 - BOLT 5

5 6547606

  • 6547606 - TUBE

6 17K8

  • 17K8 - FITTING
  • W/Ref. 23 - Was 6557332

7 17KB1210

  • 17KB1210 - FITTING
  • HYD ELBOW
  • W/Ref. 22 - Was 6714901

8 6546667

  • 6546667 - ADAPTER
  • Was 6546973

9 6547604

  • 6547604 - TUBE

10 15K8

  • 15K8 - FITTING
  • W/Ref. 23

11 7J3108

  • 7J3108 - KEY
  • square

12 18C628

  • 18C628 - BOLT

13 774813

  • 774813 - WASHER

14 6547162

  • 6547162 - SPROCKET

15 6544531

  • 6544531 - KIT
  • GASKET
  • shim & gasket

16 6547605

  • 6547605 - TUBE

17 61D7

  • 61D7 - NUT

18 61D8

  • 61D8 - NUT 5

19 25E22

  • 25E22 - WASHER

20 79K10

  • 79K10 - O RING 10

21 79K12

  • 79K12 - O RING 10
