730.0
/

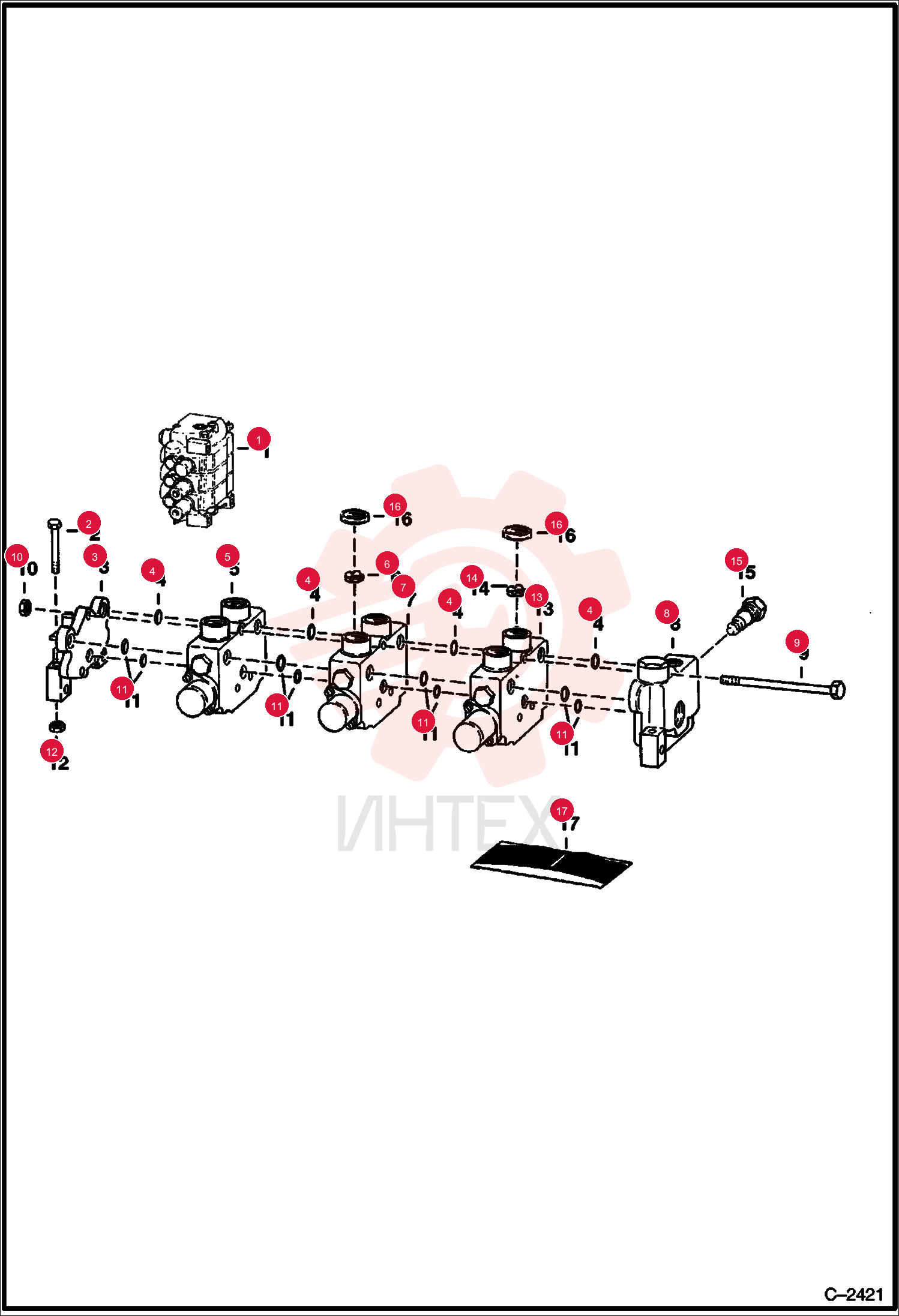

BOLT 17C540

BOLT 17C540

BOLT 17C540

1 17C540

  • 17C540 - BOLT

2 6598689

  • 6598689 - ORIFICE
  • 0.125

3 6513592

  • 6513592 - BOLT
  • 3 Spool Valve

4 1579129

  • 1579129 - NUT

5 61D5

  • 61D5 - NUT HEX FINISHED GR5

6 6519935

  • 6519935 - VALVE
  • relief

7 6660750

  • 6660750 - SEAL KIT
  • 1 section - Ref. 4 & 11 - Was 6511040
