Bobcat
/
730.0
/

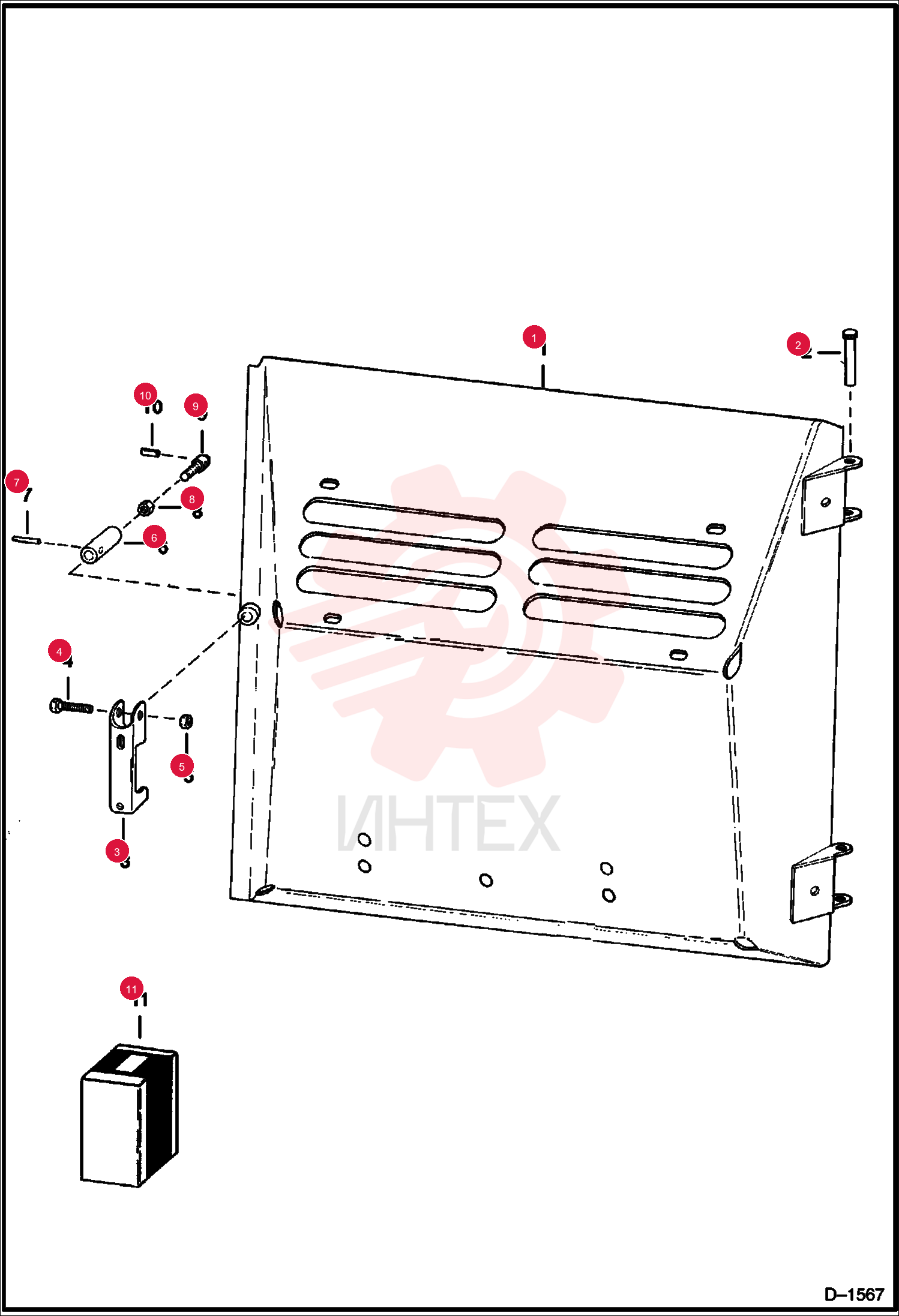

TAILGATE 6704328

TAILGATE 6704328

TAILGATE 6704328

1 6704328

  • 6704328 - TAILGATE
  • hinged - Was 6565073

2 6564340

  • 6564340 - PIN HINGE

3 6563681

  • 6563681 - HANDLE

4 38C624

  • 38C624 - BOLT 5
  • Was 6564599

5 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

6 6565628

  • 6565628 - NUT
  • fine thread (5/8'')

7 33G404

  • 33G404 - SET SCRW5

8 6565627

  • 6565627 - NUT 5
  • fine thread (5/8'')

9 6565629

  • 6565629 - SCREW
  • fine thread (5/8'')

10 6599361

  • 6599361 - PIN 5

11 6579448

  • 6579448 - KIT
  • LATCH REAR
  • Ref. 4 & 6-10
