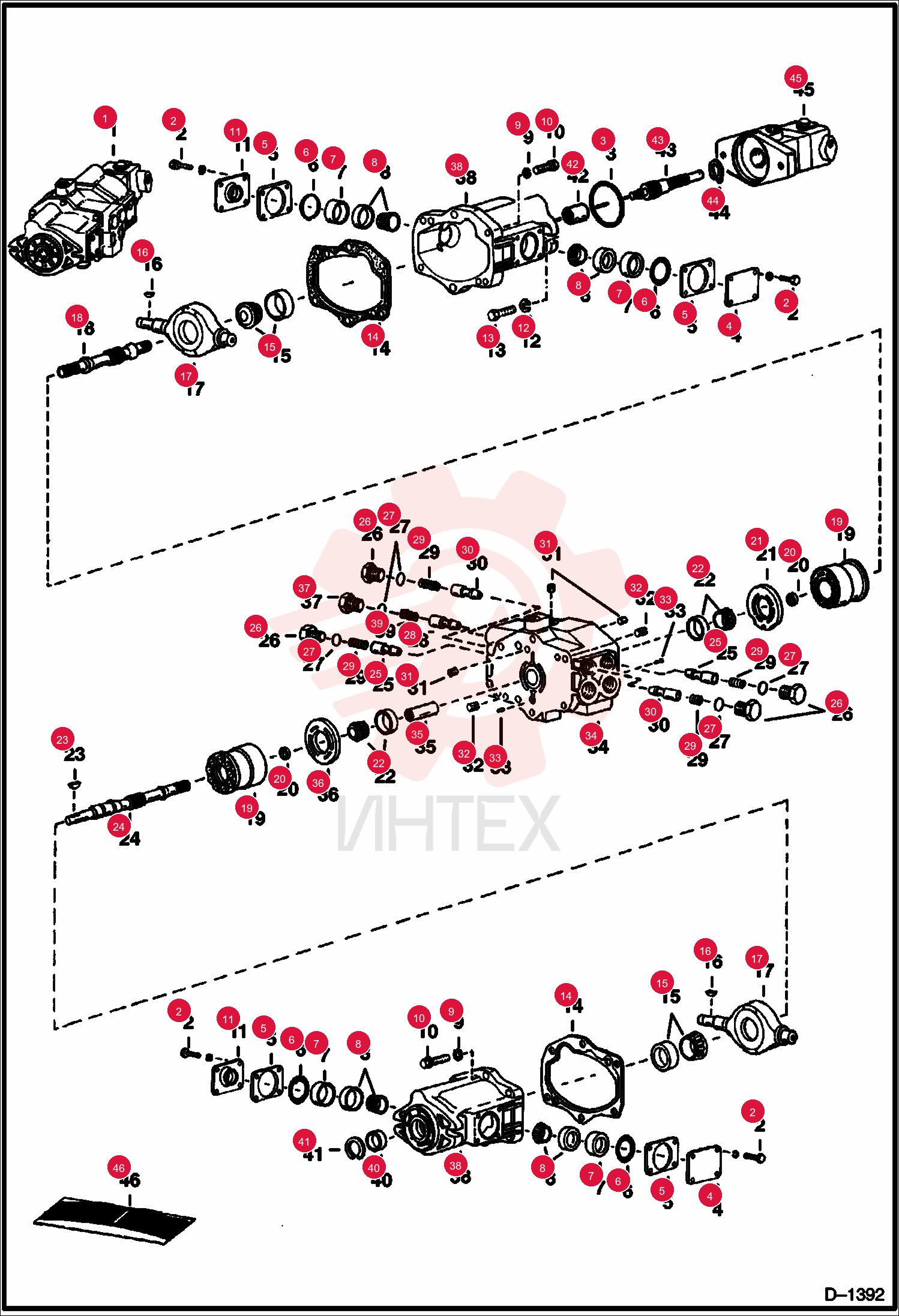

BOLT 6513631
1 6513631
- 6513631 - BOLT
2 6512949
- 6512949 - O-RING
3 6512939
- 6512939 - COVER
4 6512940
- 6512940 - SHIM KIT
5 6512938
- 6512938 - SPACER
6 232539
- 232539 - BEARING
7 4E6
- 4E6 - WASHER
8 93G624
- 93G624 - SCREW
9 6513094
- 6513094 - COVER
- SEAL BEARING
10 616791
- 616791 - WASHER
11 17C820
- 17C820 - BOLT 5
12 6512941
- 6512941 - GASKET
13 6513091
- 6513091 - BEARING
14 5J806
- 5J806 - KEY
15 6512929
- 6512929 - YOKE
16 6512932
- 6512932 - SHAFT
17 6674246
- 6674246 - SPACER
- (.154")
18 6674247
- 6674247 - SPACER
- (.157")
19 6674248
- 6674248 - SPACER
- (.160")
20 6674249
- 6674249 - SPACER
- (.163")
21 6674250
- 6674250 - SPACER
- (.166")
22 6674251
- 6674251 - SPACER
- (.169")
23 6674245
- 6674245 - SPACER
- (.151")
24 6674244
- 6674244 - SPACER
- (.148")
25 6674242
- 6674242 - SPACER
- (.142")
26 6512948
- 6512948 - KIT
- BEARING
- Spacer Kit
- includes one each of the following
27 6674240
- 6674240 - SPACER
- (.137")
28 6674241
- 6674241 - SPACER
- (.139")
29 6598478
- 6598478 - PLATE
- WEAR
30 6513093
- 6513093 - BEARING
31 6519654
- 6519654 - KEY
32 6512942
- 6512942 - SHAFT
- DRIVE HYD
33 6560968
- 6560968 - KIT
- VALVE
- relief valve - High PSI
34 6513434
- 6513434 - PLUG
35 79K12
- 79K12 - O RING 10
36 6513433
- 6513433 - SPRING
37 6513432
- 6513432 - POPPET
- replenishing
38 16F4
- 16F4 - PLUG
39 6513089
- 6513089 - PIN
40 6513092
- 6513092 - PIN
41 6512933
- 6512933 - COUPLER
42 6598902
- 6598902 - PLUG
43 6512946
- 6512946 - SPRING
44 6513090
- 6513090 - SEAL
- SHAFT
45 507695
- 507695 - SNAP RING
46 6512935
- 6512935 - COUPLER
47 6512934
- 6512934 - SHAFT
48 711054
- 711054 - SNAP RING
49 6512950
- 6512950 - VANE PUMP
- VANE
50 6512943
- 6512943 - KIT
- SEAL
- Ref. 3
- 6
- 14
- 27 & 40
