Bobcat
/
731.0
/

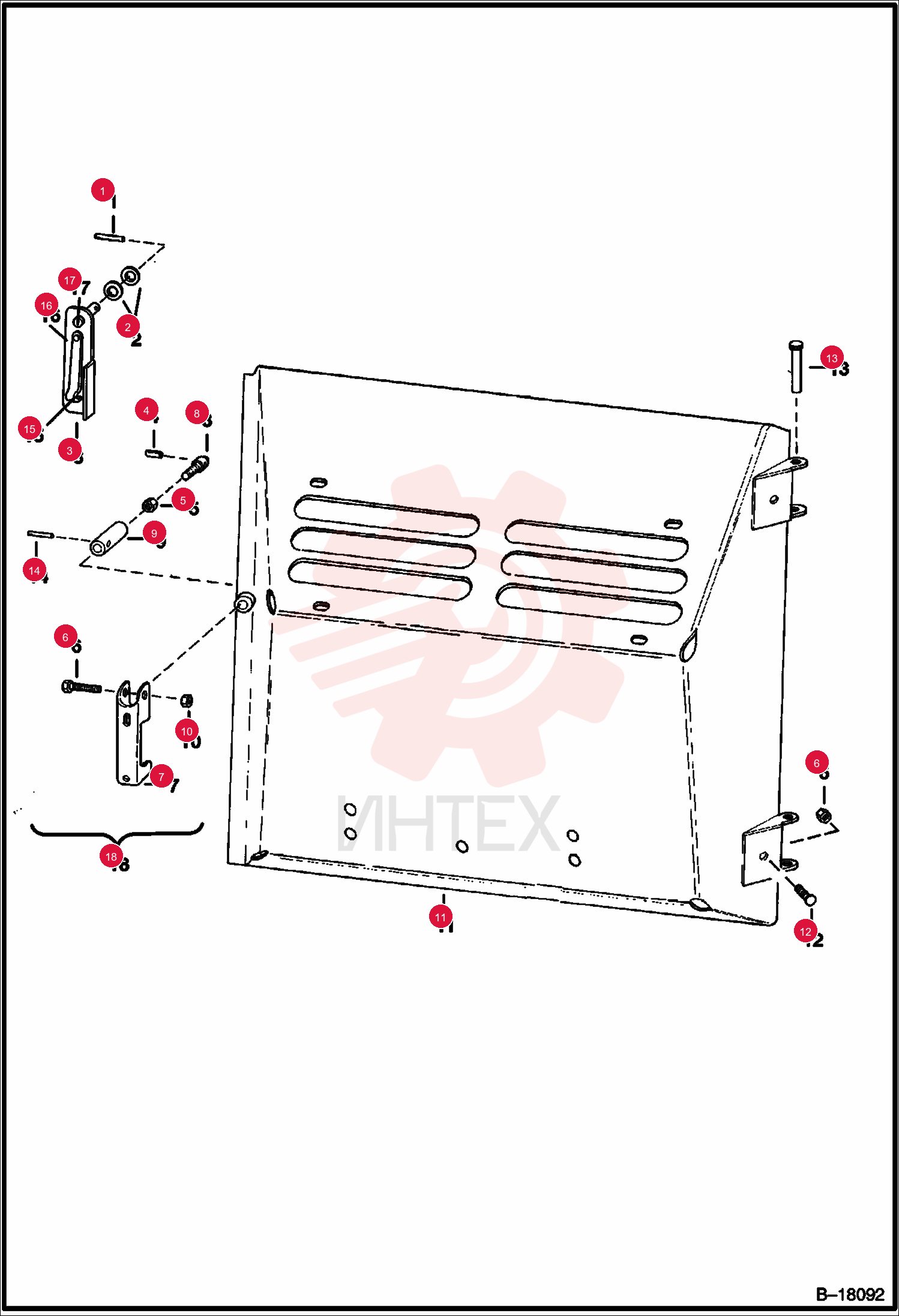

PIN 14J3740

PIN 14J3740

PIN 14J3740

1 14J3740

  • 14J3740 - PIN

2 6513440

  • 6513440 - WASHER

3 6599361

  • 6599361 - PIN 5

4 61D8

  • 61D8 - NUT 5
  • 1/2"

5 6563624

  • 6563624 - NUT JAM
  • 5/8" coarse threads

6 6565627

  • 6565627 - NUT 5
  • 5/8" fine threads

7 38C624

  • 38C624 - BOLT 5
  • Was 6564599

8 6563681

  • 6563681 - HANDLE

9 6565629

  • 6565629 - SCREW
  • 5/8" fine threads

10 6565628

  • 6565628 - NUT
  • 5/8" fine threads

11 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

12 6555419

  • 6555419 - BOLT
  • carriage

13 6564340

  • 6564340 - PIN HINGE

14 33G404

  • 33G404 - SET SCRW5

15 2H310

  • 2H310 - RIVET

16 4E8

  • 4E8 - WASHER

17 6579448

  • 6579448 - KIT
  • LATCH REAR
  • Ref. 4 - 10 & 14
