731.0
/

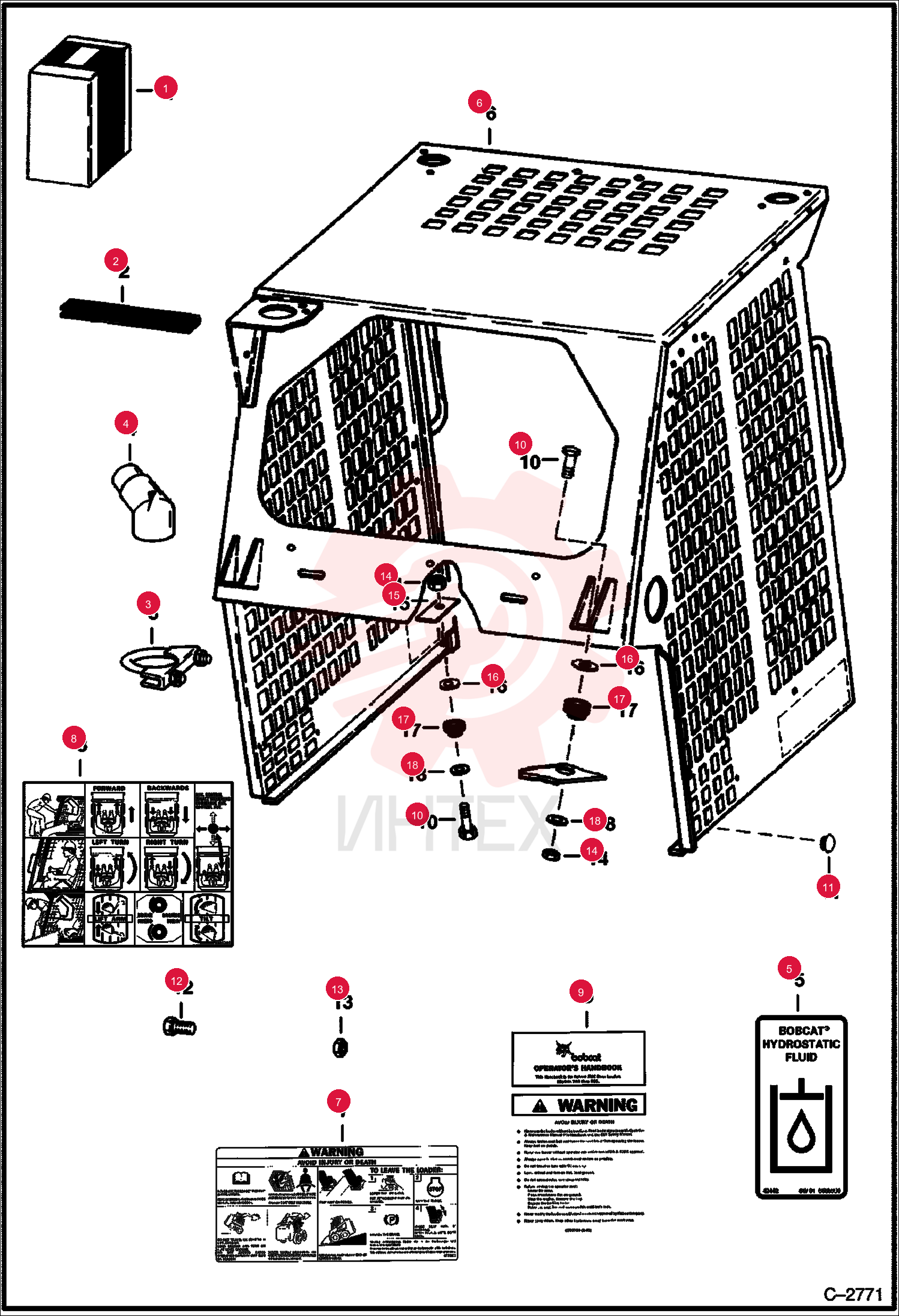

MOULDING BULK 6512686

MOULDING BULK 6512686

MOULDING BULK 6512686

1 6512686

  • 6512686 - MOULDING BULK
  • bulk - sold per foot - Was 6620417

2 710706

  • 710706 - CLAMP

3 6563039

  • 6563039 - ELBOW
  • hydraulic tank

4 6565990

  • 6565990 - DECAL
  • OIL HYD 5
  • hydrostatic fluid fill - Was 6561378

5 6702265

  • 6702265 - DECAL
  • WARNING
  • warning - Was 6568691

6 6569021

  • 6569021 - DECAL
  • operation

7 6567623

  • 6567623 - OHB
  • W/WIRE ROPE
  • handbook - W/wire rope & sleeves

8 6558309

  • 6558309 - CABLE BULK/FT
  • bulk - sold per foot - Also Order (2) of 6558310 sleeve - Was 6558305

9 6558310

  • 6558310 - SLEEVE

10 17C836

  • 17C836 - BOLT

11 6555016

  • 6555016 - BUMPER

12 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • Was 6553808

13 61D5

  • 61D5 - NUT HEX FINISHED GR5

14 59D8

  • 59D8 - NUT LOCK HEX PT
  • Was 85D000008B

15 6553709

  • 6553709 - WASHER RECTANGULAR

16 6543321

  • 6543321 - WASHER

17 6560633

  • 6560633 - DAMPER
  • VIBRATION
  • shock

18 6515817

  • 6515817 - WASHER
