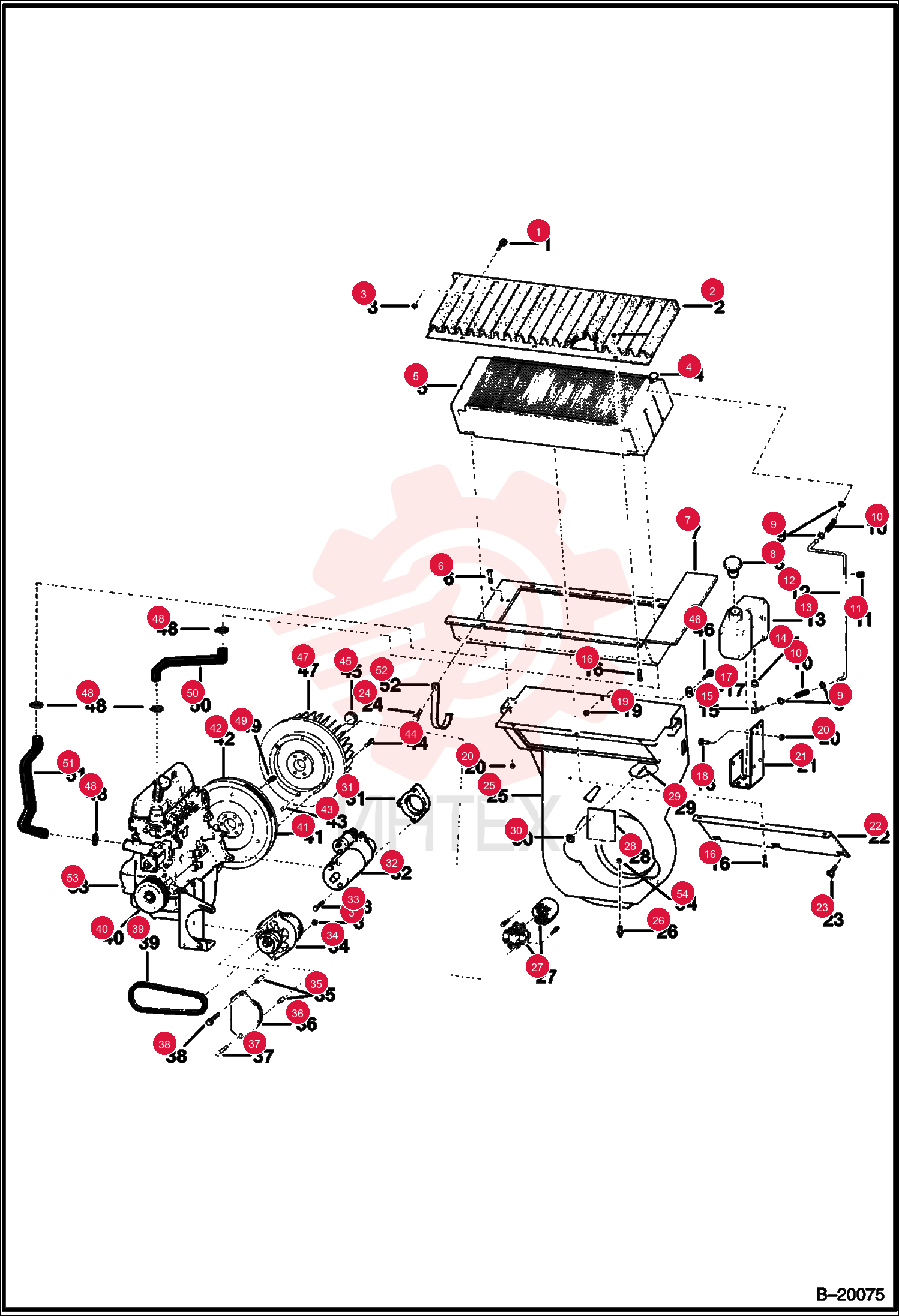

SCREW THD ROLLING TT 84G3716

SCREW THD ROLLING TT 84G3716

SCREW THD ROLLING TT 84G3716

1 84G3716

  • 84G3716 - SCREW THD ROLLING TT

2 6567868

  • 6567868 - GRILL

3 83D6

  • 83D6 - LKNUT HEX FLG GR8

4 6666606

  • 6666606 - RAD CAP
  • Was 6630156

5 6571713

  • 6571713 - EXCHANGER
  • WATER RADIATOR
  • Was 6630246

6 6514571

  • 6514571 - BOLT

7 6578176

  • 6578176 - MOUNT
  • radiator - Was 6562851

8 6702797

  • 6702797 - CAP
  • Was 6558658

9 42HS04

  • 42HS04 - CLAMP HOSE TYPE M
  • Was 6515575

10 6577822

  • 6577822 - HOSE BULK
  • sold per foot

11 6519484

  • 6519484 - GROMMET

12 6562598

  • 6562598 - TUBE

13 6562509

  • 6562509 - TANK

14 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5

15 6553412

  • 6553412 - ELBOW

16 21C508

  • 21C508 - BOLT

17 774220

  • 774220 - NUT
  • spring

18 17C612

  • 17C612 - SCREW HEX CAP

19 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • carriage - Was 6553808

20 83D5

  • 83D5 - LKNUT HEX FLG GR8

21 57D6

  • 57D6 - NUT HEX FLNG GR8
  • Was 57D000005B

22 6562599

  • 6562599 - MOUNT

23 6709415

  • 6709415 - SHIELD
  • Was 6565576

24 6563590

  • 6563590 - COVER

25 6565418

  • 6565418 - SCREW
  • wing - Was 35C000512B

26 35C610

  • 35C610 - BOLT 5

27 6564047

  • 6564047 - HOUSING
  • blower

28 6575657

  • 6575657 - HOUSING
  • blower

29 35C620

  • 35C620 - BOLT 5

30 6555293

  • 6555293 - NAIL

31 6562480

  • 6562480 - BLOCK

32 17C632

  • 17C632 - BOLT 5

33 6563043

  • 6563043 - BUSHING

34 6563037

  • 6563037 - SHIELD

35 17C672

  • 17C672 - BOLT

36 29CM860

  • 29CM860 - BOLT
  • Delco Alternator

37 17C540

  • 17C540 - BOLT
  • Bobcat Alternator

38 6557143

  • 6557143 - BELT
  • alternator

39 6558802

  • 6558802 - PULLEY

40 6562279

  • 6562279 - RING GEAR

41 214165

  • 214165 - DOWEL

42 17C528

  • 17C528 - BOLT

43 6558410

  • 6558410 - PLUG

44 37C516

  • 37C516 - BOLT SQ NECK RND HD
  • Was 6565089

45 6562659

  • 6562659 - WHEEL BLW
  • Dowel Pin Alignment

46 6565466

  • 6565466 - BLOWER
  • Counter Bore

47 42H32

  • 42H32 - HS CLAMP5

48 94G620

  • 94G620 - SCREW

49 6562986

  • 6562986 - HOSE
  • radiator

50 6562987

  • 6562987 - HOSE
  • radiator

51 6562431

  • 6562431 - RETAINER
  • hose retainer

52 59D6

  • 59D6 - NUT LOCK HEX PT
