Bobcat
/
743.0
/

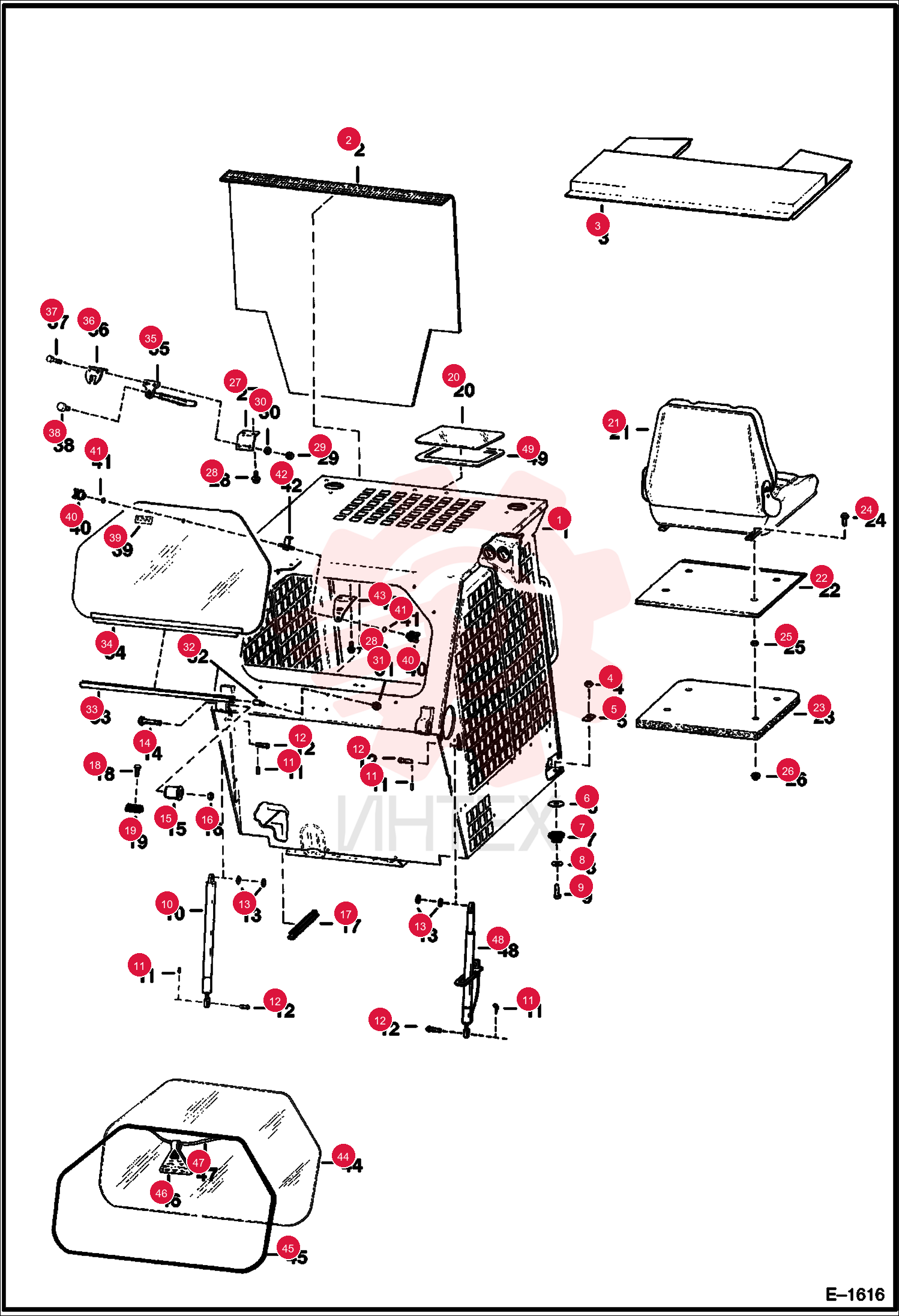

INSULATION 6576494 (2)

INSULATION 6576494 (2)

INSULATION 6576494 (2)

1 6576494

  • 6576494 - INSULATION
  • Was 6568179

2 6565373

  • 6565373 - INSULATION

3 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

4 6553709

  • 6553709 - WASHER RECTANGULAR

5 6543321

  • 6543321 - WASHER

6 6560633

  • 6560633 - DAMPER
  • VIBRATION

7 6515817

  • 6515817 - WASHER

8 17C840

  • 17C840 - BOLT

9 91G416

  • 91G416 - SCREW
  • Was 91G000410B

10 6700171

  • 6700171 - CYLINDER
  • GAS
  • W/O lock - Also Order 6675257 clevis - Was 6700000

11 6670730

  • 6670730 - SPRING
  • GAS
  • W/O lock - heavy duty - 6670730 Gas spring to be used when loader is equipped W/Cab Enclosure. Because 6670730 Gas Spring in heavy duty w/larger diameter
  • (2) 91G-410 Screws
  • with low profile heads
  • must be used in place of 35C-410 Bolt located behind gas spring on left side of ROPS - includes clevis on both ends

12 6631418

  • 6631418 - RING RUE

13 6567743

  • 6567743 - PIN

14 6567604

  • 6567604 - SPACER

15 17C1056

  • 17C1056 - BOLT

16 6562602

  • 6562602 - BUSHING ISOLATOR
  • rubber

17 83D10

  • 83D10 - NUT 5

18 6555351

  • 6555351 - SEAL BULK/FT 15
  • bulk - sold per foot

19 84G2516

  • 84G2516 - SCREW THD ROLLING TT

20 6568475

  • 6568475 - STOP

21 6701986

  • 6701986 - WINDOW
  • TOP
  • top - Was 6563391

22 6705735

  • 6705735 - WINDOW TOP CAB
  • top

23 6577439

  • 6577439 - INSULATION
  • Was 6567903

24 6577273

  • 6577273 - INSULATION
  • Was 6567902

25 35C516

  • 35C516 - SCREW HEX HD W/F GR5

26 61D5

  • 61D5 - NUT HEX FINISHED GR5

27 83D5

  • 83D5 - LKNUT HEX FLG GR8

28 6568540

  • 6568540 - MOUNT W L

29 84G3112

  • 84G3112 - SCREW THD ROLLING TT

30 50D10

  • 50D10 - LOCKNUT

31 25E10

  • 25E10 - WASHER FLAT PLAIN

32 59D4

  • 59D4 - NUT LOCK HEX PT

33 6576513

  • 6576513 - BOLT
  • Was 6630927

34 6630926

  • 6630926 - HINGE

35 6630925

  • 6630925 - WINDOW

36 85G1014

  • 85G1014 - SCREW

37 6571529

  • 6571529 - KNOB

38 58K109

  • 58K109 - O RING 10

39 6571532

  • 6571532 - BRACKET

40 6571533

  • 6571533 - MOUNT

41 6704891

  • 6704891 - WINDOW REAR
  • rear - Was 6703021

42 6658352

  • 6658352 - MOULDING
  • bulk - sold per foot

43 6731478

  • 6731478 - TAG EXIT
  • Was 6559515

44 6554149

  • 6554149 - CORD
  • bulk - sold per foot - Also Order Ref. 46 (6731478 exit tag)

45 6664351

  • 6664351 - MOULDING
  • Use W/cab headliner

46 6664351

  • 6664351 - MOULDING
  • Use W/cab headliner
