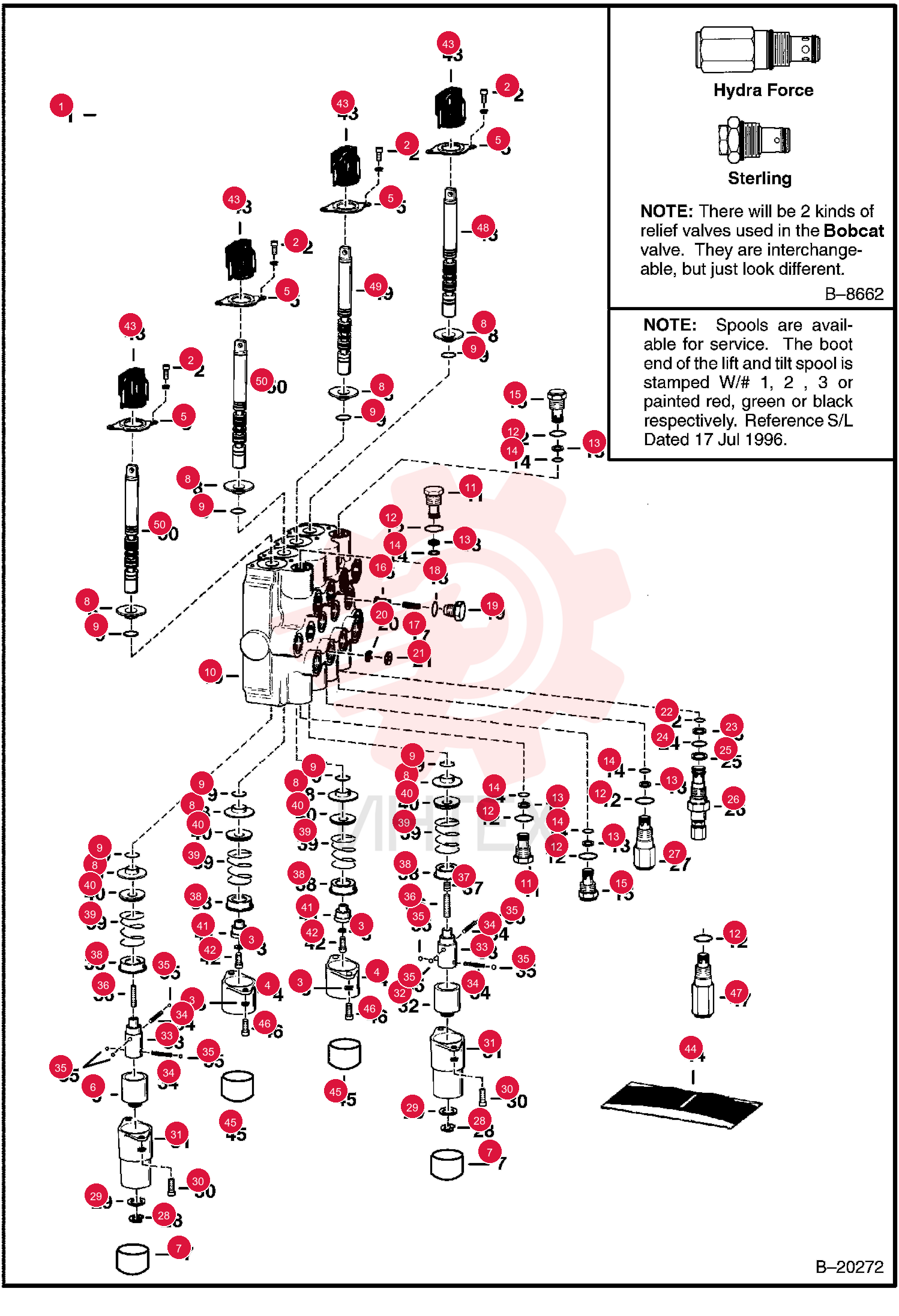

SCREW 6588165 (3)
1 6588165
- 6588165 - SCREW
- Was 73G000410B
2 22E4
- 22E4 - WASHER
3 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- W/.50" flange thickness - Was 6587633
4 6592123
- 6592123 - RETAINER
5 6593349
- 6593349 - SLEEVE
- Aux.
6 6660644
- 6660644 - CAP
7 6592103
- 6592103 - BUSHING
- See Service Letter 5 Jan. 87
8 6665089
- 6665089 - SEAL 5
- lip seal - Was 6659554
9 6646372
- 6646372 - SEAL
- QUAD RING
- quad ring seal
10 6592720
- 6592720 - PLUG
- W/Ref. 12-14
11 79K10
- 79K10 - O RING 10
12 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
13 58K014
- 58K014 - O-RING 10
- back-up washer required - Was 25K20016
14 6677106
- 6677106 - O-RING
- backup washer not required
15 6667549
- 6667549 - VALVE
- CHECK
- anti-cavitation - W/Ref. 12-14 - Was 6661345
16 6592115
- 6592115 - SEAT
17 6592117
- 6592117 - SPRING
- LOAD CHECK
18 79K8
- 79K8 - O RING 10
19 6592116
- 6592116 - NUT
- load check
20 6593680
- 6593680 - RETAINER
21 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
22 6599161
- 6599161 - VALVE
- RELIEF
- W/Ref. 12 -14 - See Note
23 799119
- 799119 - RING
24 6592098
- 6592098 - WASHER
25 6588163
- 6588163 - SCREW
- 7/8" - Was 69G000412B
26 29G416
- 29G416 - BOLT
- 1" - Was 6588982
27 6589226
- 6589226 - COVER
- END
- 0.63" flange
28 6592096
- 6592096 - SLEEVE
- lift
29 6587575
- 6587575 - ADAPTER
- Was 6592099
30 6592107
- 6592107 - SPRING
- DETENT 5
31 6592105
- 6592105 - BALL 5
32 6586918
- 6586918 - SCREW
- DETENT
- Was 6538466
33 6592752
- 6592752 - PLUG
- plastic
34 6592100
- 6592100 - COLLAR
35 6587580
- 6587580 - SPRING
- Was 6592106
36 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
37 6592109
- 6592109 - ADAPTER
38 6583727
- 6583727 - BOOT
- See Note
39 6816251
- 6816251 - KIT
- SEAL
- - Ref. 9
- 12-14
- 18
- 22-25
- 30 & 43 - Was 6589858
40 6816250
- 6816250 - KIT
- SEAL
- - Ref. 9
- 30 & 43 - For One Spool - Was 6803605
41 6661328
- 6661328 - SEAL KIT
- main relief - Ref. 22-25
42 6809425
- 6809425 - SEAL KIT
- upper deck - Ref. 12-14 & 18 - Was 6586461
43 6662848
- 6662848 - CAP
- Use with 7101345 Bonnet
44 69G414
- 69G414 - BOLT
- Was 6588164
45 6664373
- 6664373 - VALVE
- RELIEF
- optional - port relief & anti-cav. W/Ref. 12 - 2500 PSI - use in tilt cylinder base end port
46 6666582
- 6666582 - SPOOL BOM
- lift - #1 or red - SEE NOTE
47 6666583
- 6666583 - SPOOL BOM
- lift - #2 or green - SEE NOTE
48 6666584
- 6666584 - SPOOL BOM
- lift - #3 or black - SEE NOTE
49 6666585
- 6666585 - SPOOL
- TILT
- tilt - #1 or red - SEE NOTE
50 6666586
- 6666586 - SPOOL
- TILT
- tilt - #2 or green - SEE NOTE
51 6666587
- 6666587 - SPOOL
- TILT
- tilt - #3 or black - SEE NOTE
52 6592119
- 6592119 - SPOOL
- auxiliary - SEE NOTE
