Bobcat
/
743.0
/

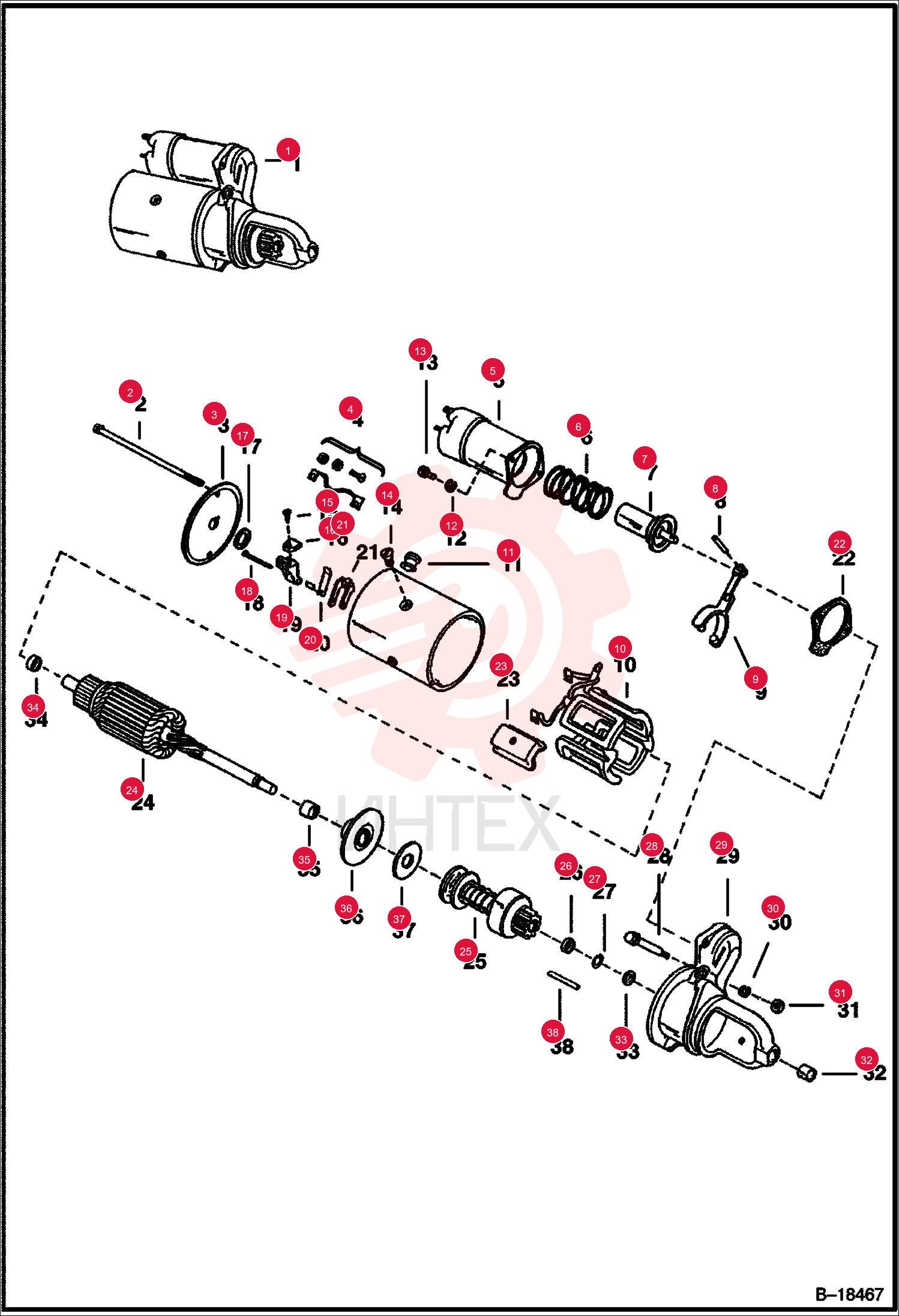

STARTER 6630182REM (2)

STARTER 6630182REM (2)

STARTER 6630182REM (2)

1 6630182REM

  • 6630182REM - STARTER
  • remanufactured

2 6630404

  • 6630404 - BOLT

3 6511627

  • 6511627 - HOLDER

4 6599449

  • 6599449 - SOLENOID
  • Delco 1998339

5 6632400

  • 6632400 - SOLENOID
  • Delco 1113598

6 888968

  • 888968 - SPRING
  • Delco 1998339 - Was 906910B

7 6645248

  • 6645248 - SPRING
  • Delco 1113598

8 6658903

  • 6658903 - PLUNGER
  • Was 6599448

9 896126

  • 896126 - LEVER

10 6630407

  • 6630407 - FIELDCOIL
  • field

11 23E8

  • 23E8 - WASHER

12 6517496

  • 6517496 - SCREW
  • Ground

13 859377

  • 859377 - SCREW

14 6630403

  • 6630403 - BRUSH

15 871521

  • 871521 - PIN
  • Was NSS

16 6630402

  • 6630402 - BR HOLDER

17 6630406

  • 6630406 - BR SPRING

18 6511626

  • 6511626 - HOLDER

19 991374

  • 991374 - GASKET

20 6511629

  • 6511629 - ARMATURE
  • Was 991100B

21 6645247

  • 6645247 - DRIVE ASSEMBLY
  • Was 899271B

22 942142

  • 942142 - SNAP RING

23 884576

  • 884576 - BOLT.

24 6630419

  • 6630419 - HOUSING
  • W/Ref. 32

25 23E5

  • 23E5 - L WASHER

26 860669

  • 860669 - BUSHING

27 874935

  • 874935 - BUSHING

28 6630411

  • 6630411 - PLATE
  • center bearing - W/Ref. 35

29 6630412

  • 6630412 - GASKET

30 6630405

  • 6630405 - PIN
  • DOWEL
