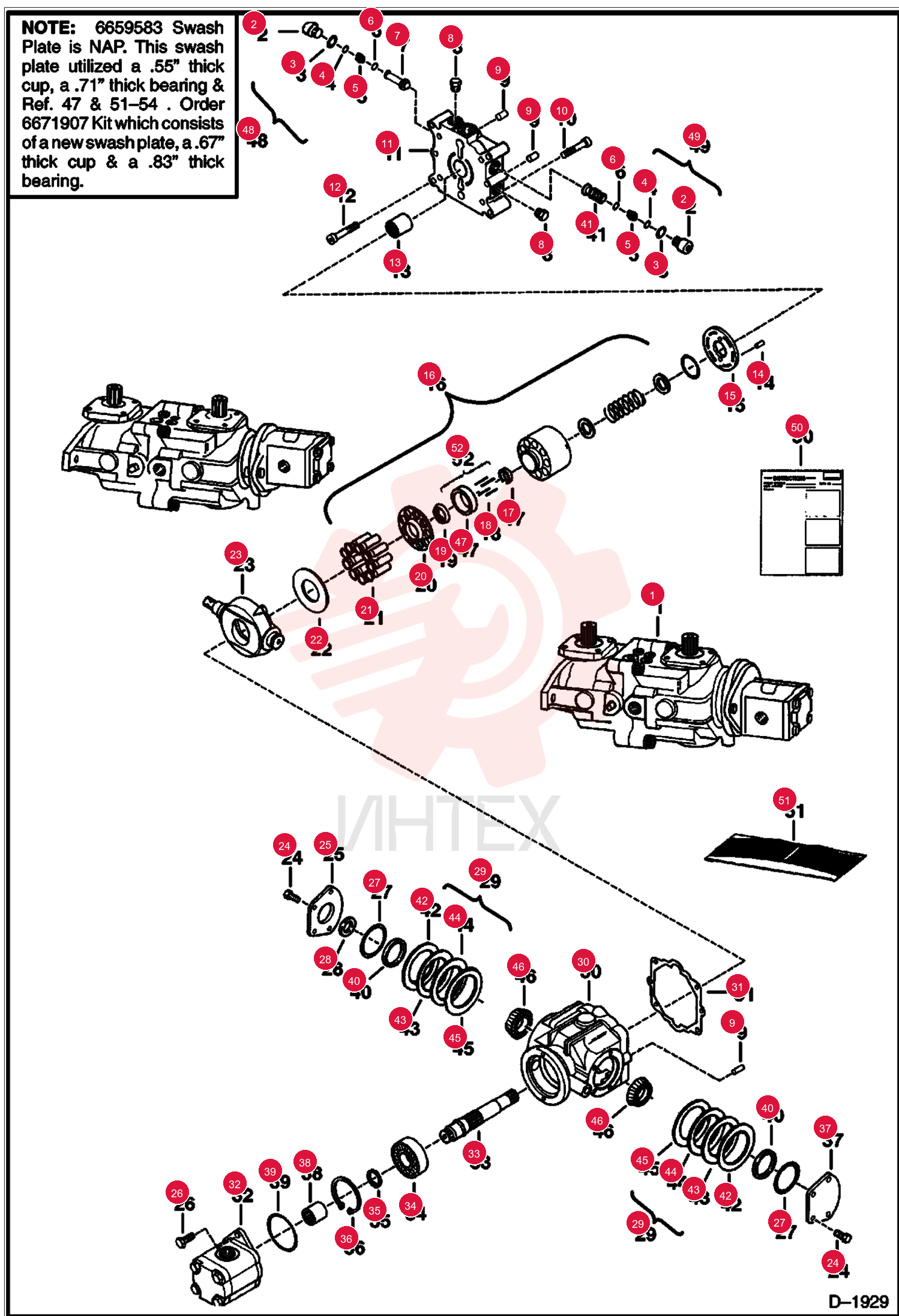

PUMP, HYD W/O GEAR PUMP 6662349REM (8)
1 6662349REM
- 6662349REM - PUMP
- HYD W/O GEAR PUMP
- Was 6662349
2 6657028
- 6657028 - O-RING
3 79K8
- 79K8 - O RING 10
4 6645086
- 6645086 - PLUG
- Was 6657081
5 6518460
- 6518460 - PIN
6 6650637
- 6650637 - BOLT
7 6669405
- 6669405 - CAP
- END
- Was 6650653
8 6652018
- 6652018 - BOLT
9 6650635
- 6650635 - BEARING
10 6650636
- 6650636 - PIN
11 6666291
- 6666291 - PLATE
- WEAR
- Was 6650673
12 6661758
- 6661758 - ROT GROUP
- W/Ref. 17-21
13 6650630
- 6650630 - RETAINER
14 6650627
- 6650627 - PLATE THR
- thrust
15 6671907
- 6671907 - SWASHPLATE
- W/Ref. 55 - Do not use Ref. 11
- 47
16 6650668
- 6650668 - BOLT
17 6657067
- 6657067 - COVER
- W/Ref. 28
18 6666339
- 6666339 - SCREW
- Was 6650679
19 6660814
- 6660814 - RING
- QUAD
20 6678226
- 6678226 - SEAL
- OIL
- Was 6673881
21 6660815
- 6660815 - SHIM KIT
- Ref. 42 - 45 - SEE NOTE - Use with 6659583 swash plate
22 6657077
- 6657077 - HOUSING
23 6650634
- 6650634 - GASKET
24 6650645
- 6650645 - SHAFT
25 6650640
- 6650640 - BEARING
26 6650641
- 6650641 - SNAP RING
27 6652019
- 6652019 - SNAP RING
28 6657068
- 6657068 - COVER
29 6650677
- 6650677 - COUPLER
30 6645080
- 6645080 - O-RING
- O.D. of Ref. 32
31 6659582
- 6659582 - SPACER
- SEE NOTE - Use with 6659583 swash plate
32 6659578
- 6659578 - SHIM
- .003 - SEE NOTE
33 6659579
- 6659579 - SHIM
- .005 - SEE NOTE
34 6659580
- 6659580 - SHIM
- .010 - SEE NOTE
35 6659581
- 6659581 - SHIM
- .020 - SEE NOTE
36 6659584
- 6659584 - KIT
- BEARING
- W/cup - .55 Cup & .71 Bearing - SEE NOTE - Was 6660117
37 6669411
- 6669411 - BEARING
- W/cup - .67 Cup & .83 Bearing - SEE NOTE
38 6670684
- 6670684 - VALVE
- CHECK
39 6670685
- 6670685 - VALVE
- RELIEF
- Was 6689601
40 6722075
- 6722075 - INSTRUCTIONS
41 6658092
- 6658092 - SEAL KIT
- Ref. 3
- 4
- 28
- 31 & 39 - ALSO INCLUDES Ref. 4
- 5
- 12
- 13
- 18
- 32
- 33
- 39
- 41
- 45 & 46
42 7339370
- 7339370 - KIT GUIDE
- W/Ref. (4) 18 & 47
