753.0
/

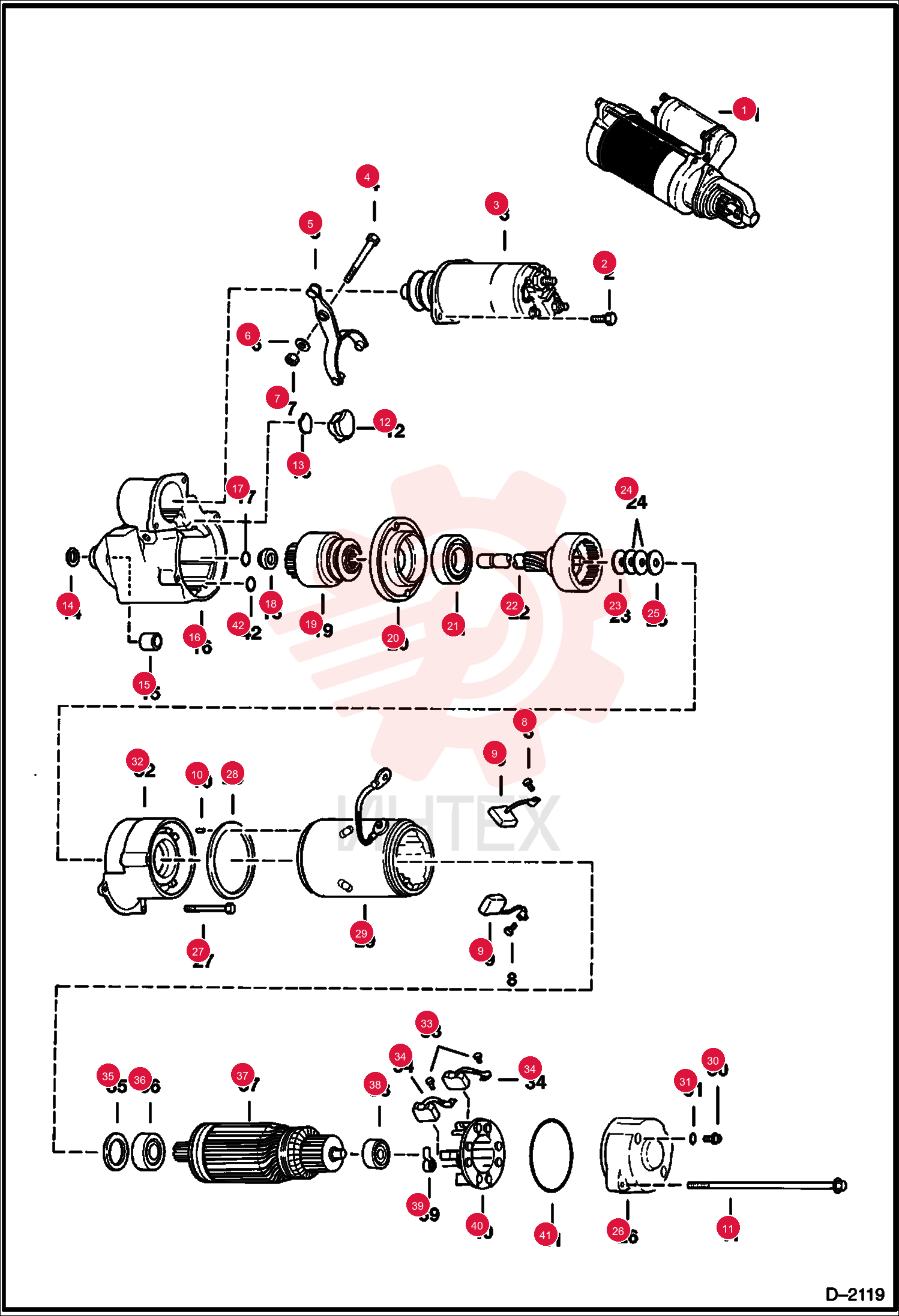

STARTER 6660797REM (4)

STARTER 6660797REM (4)

STARTER 6660797REM (4)

1 6660797REM

  • 6660797REM - STARTER
  • remanufactured

2 6658582

  • 6658582 - SOLENOID
  • STARTER

3 1CM650

  • 1CM650 - SCREW HEX CAP

4 6658572

  • 6658572 - LEVER

5 1EM60

  • 1EM60 - WASHER

6 7DM6

  • 7DM6 - NUT

7 13GM404

  • 13GM404 - SCREW

8 6658566

  • 6658566 - BRSH INSL

9 6658567

  • 6658567 - BUSHING

10 6658579

  • 6658579 - HOUSING
  • drive

11 6658573

  • 6658573 - STOP

12 6661688

  • 6661688 - DRIVE

13 6661686

  • 6661686 - SUPPORT
  • drive - W/Seal

14 6658571

  • 6658571 - BEARING
  • center

15 6658576

  • 6658576 - SHAFT
  • drive

16 6658577

  • 6658577 - SUPPORT
  • armature

17 6658580

  • 6658580 - FRAME AND FLD
  • assy.

18 6658575

  • 6658575 - FRAME

19 13GM408

  • 13GM408 - SCREW

20 6658565

  • 6658565 - BRUSH GRN

21 6658569

  • 6658569 - BEARING

22 6658574

  • 6658574 - ARMATURE

23 6658570

  • 6658570 - BEARING

24 6658568

  • 6658568 - SPRING

25 6658564

  • 6658564 - HOLDER
  • BRUSH
  • brush assy.

26 6658581

  • 6658581 - O-RING
