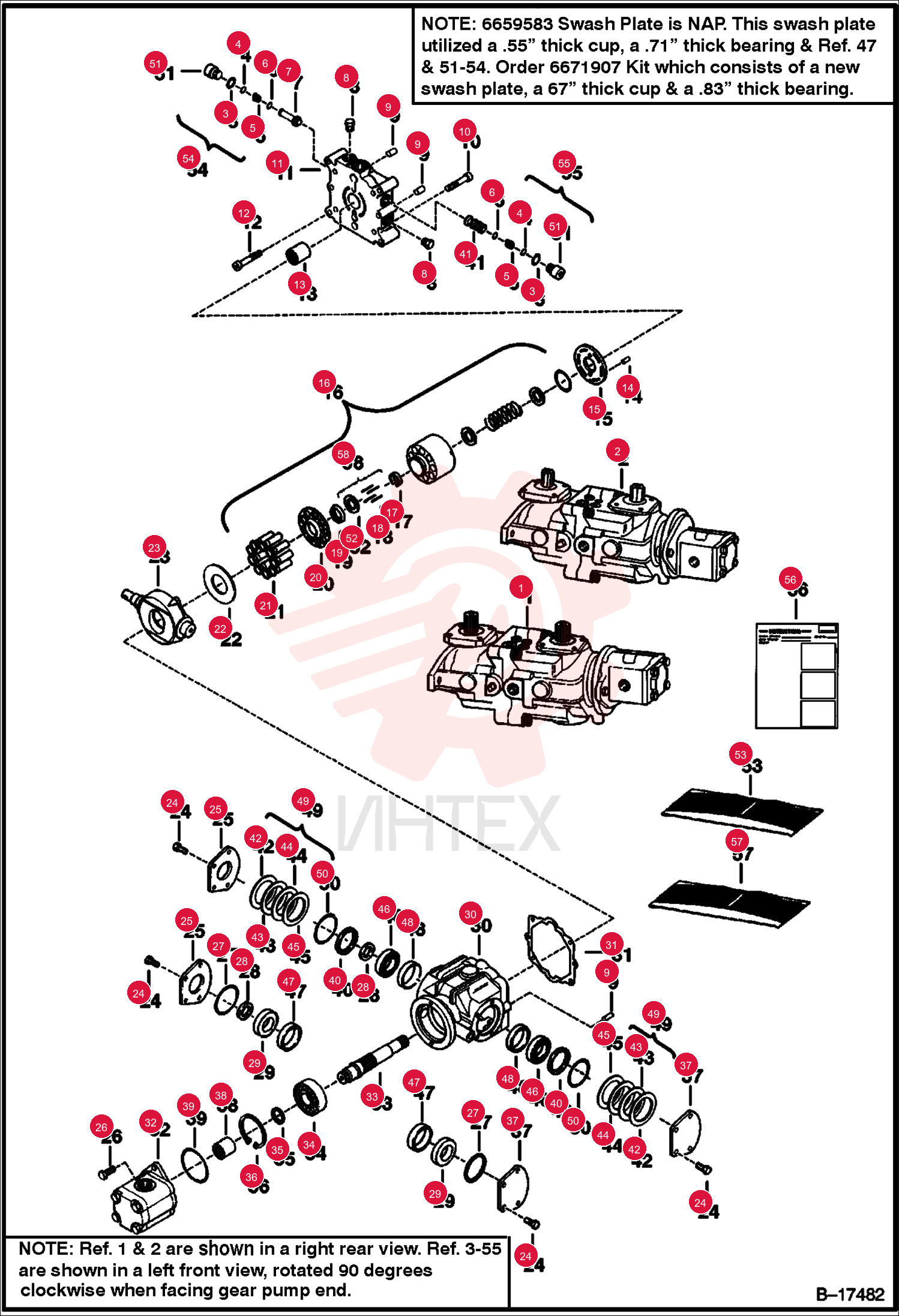

PUMP, HYD W/O GEAR PUMP 6662349REM (1)
1 6662349REM
- 6662349REM - PUMP
- HYD W/O GEAR PUMP
- Was 6662349
2 6657028
- 6657028 - O-RING
3 79K8
- 79K8 - O RING 10
4 6657081
- 6657081 - PLUG
- For M91-35906
- 35908
- 35910 & 35911
5 6645086
- 6645086 - PLUG
- For M91-35916
6 6518460
- 6518460 - PIN
7 6650637
- 6650637 - BOLT
8 6669405
- 6669405 - CAP
- END
- Was 6650653
9 6652018
- 6652018 - BOLT
10 6650635
- 6650635 - BEARING
11 6650636
- 6650636 - PIN
12 6666291
- 6666291 - PLATE
- WEAR
- Was 6650673
13 6661758
- 6661758 - ROT GROUP
- W/Ref. 17-21 - Was 6634311
14 6650630
- 6650630 - RETAINER
15 6650627
- 6650627 - PLATE THR
- thrust
16 6671907
- 6671907 - SWASHPLATE
- For M91-35906
- 35908 & 35910 - Was 6657075 - Do not use Ref. 11
- 47
17 6659583
- 6659583 - SWASHPLATE
- For M91-35911 & 35916
18 6650668
- 6650668 - BOLT
19 6657067
- 6657067 - COVER
- W/Ref. 28
20 6666339
- 6666339 - SCREW
- Was 6650679
21 6678226
- 6678226 - SEAL
- OIL
- Was 6673881
22 6659985
- 6659985 - BEARING
- For M91-35906
- 35908 & 35910- Was 6657069
23 6657077
- 6657077 - HOUSING
24 6650634
- 6650634 - GASKET
25 6650645
- 6650645 - SHAFT
26 6650640
- 6650640 - BEARING
27 6650641
- 6650641 - SNAP RING
28 6652019
- 6652019 - SNAP RING
29 6657068
- 6657068 - COVER
30 6650677
- 6650677 - COUPLER
31 6645080
- 6645080 - O-RING
- O.D. of Ref. 32
32 6659582
- 6659582 - SPACER
- For M91-35911 & 35916 - Use with 6659583 swash plate
33 6659578
- 6659578 - SHIM
- .003 For M91-35911 & 35916
34 6659579
- 6659579 - SHIM
- .005 For M91-35911 & 35916
35 6659580
- 6659580 - SHIM
- .010 For M91-35911 & 35916
36 6659581
- 6659581 - SHIM
- .020 For M91-35911 & 35916
37 6659584
- 6659584 - KIT
- BEARING
- For M91-35911 & 35916 - Was 6659584 - Was 6660117
38 6659986
- 6659986 - RACE
- For M91-35906
- 35908 & 35910
39 6659584
- 6659584 - KIT
- BEARING
- For M91-35911 only - Was 6660118
40 6660815
- 6660815 - SHIM KIT
- Ref. 42 - 45 - Use with 6659583 swash plate
41 6660814
- 6660814 - RING
- QUAD
42 6722046
- 6722046 - HYDRO-KIT
- Ref. 4
- 12
- 13
- 18
- 21
- 46
- 47
- 50
- 55
- 56
- 58
- 59 & 65 - Also includes Ref. 23
- 28
- 31
- 40
- 46 & 48-50 on this illustration - swashplate bushing to bearing upgrade
43 6670684
- 6670684 - VALVE
- CHECK
44 6670685
- 6670685 - VALVE
- RELIEF
- Was 6689601
45 6722075
- 6722075 - INSTRUCTIONS
46 6671516
- 6671516 - KIT
- SEAL
- - Ref. 4
- 5
- 12
- 13
- 18
- 32
- 33
- 39
- 41
- 45
- 46 & 59 - Also includes Ref. 3
- 4
- 27
- 28
- 31 & 39 on this page - Was 7296604
47 7339370
- 7339370 - KIT GUIDE
- W/Ref. (4) 18 & 52
