843.0
/

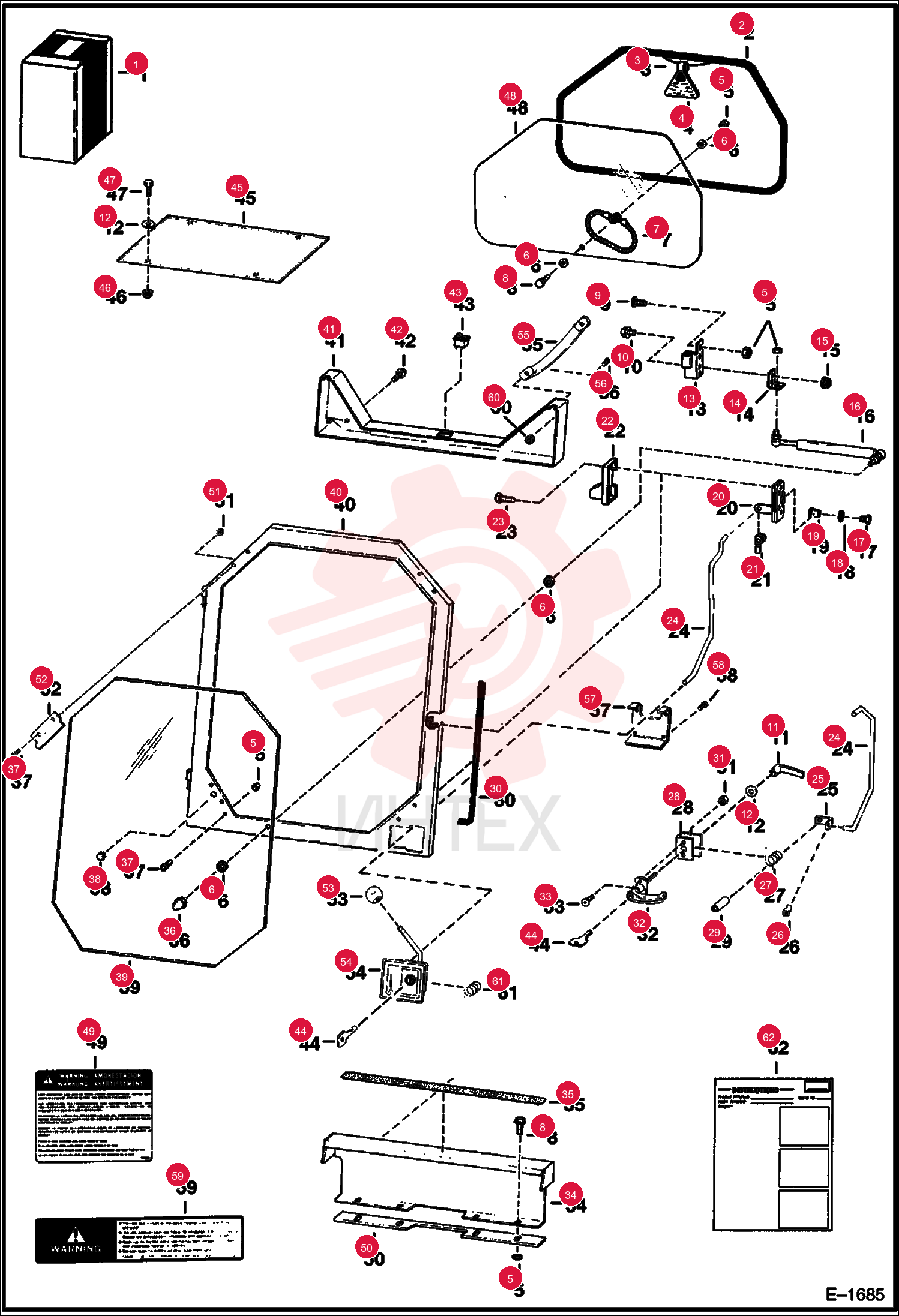

MOULDING 6658352 (1)

MOULDING 6658352 (1)

MOULDING 6658352 (1)

1 6658352

  • 6658352 - MOULDING
  • 8.5' (259 cm) bulk - sold per foot - Was 6554221

2 6554149

  • 6554149 - CORD
  • 101" (2565
  • 4 mm long - bulk - sold per foot - Also Order Ref. 4 (6731478 exit tag) - Was 6554223

3 6731478

  • 6731478 - TAG EXIT
  • Was 6559515

4 83D5

  • 83D5 - LKNUT HEX FLG GR8

5 25E16

  • 25E16 - WASHER FLAT PLAIN

6 6555331

  • 6555331 - WIRE ROPE

7 35C516

  • 35C516 - SCREW HEX HD W/F GR5

8 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • Was 6553808

9 35C412

  • 35C412 - SCREW FLGD HEX CAP

10 6515600

  • 6515600 - HANDLE
  • Use with old style latch

11 25E18

  • 25E18 - WASHER FLAT PLAIN
  • Use with old style latch

12 6571715

  • 6571715 - HINGE

13 6568055

  • 6568055 - BRACKET

14 83D4

  • 83D4 - LKNUT HEX FLG GR8

15 6649244

  • 6649244 - BALL STUD
  • For Gas Spring

16 6649245

  • 6649245 - CLIP

17 6630797

  • 6630797 - GAS SPRING

18 17C714

  • 17C714 - BOLT

19 25E19

  • 25E19 - WASHER

20 6568047

  • 6568047 - STRIKER
  • bushing

21 6660932

  • 6660932 - LATCH
  • Was 6647789

22 6568728

  • 6568728 - SHIELD

23 35C416

  • 35C416 - BOLT

24 6568727

  • 6568727 - ROD

25 6704425

  • 6704425 - ROD
  • Was 6576470

26 6568528

  • 6568528 - BRACKET

27 6568725

  • 6568725 - SPRING

28 6568527

  • 6568527 - BRACKET

29 6568526

  • 6568526 - SPACER

30 6568704

  • 6568704 - SEAL BULK
  • 12' (365
  • 7 cm) bulk - sold per foot

31 50D10

  • 50D10 - LOCKNUT

32 75G1016

  • 75G1016 - BOLT

33 6568164

  • 6568164 - SHIELD

34 6564833

  • 6564833 - SAFETY

35 46D5

  • 46D5 - NUT LOW CROWN ACORN

36 25G510

  • 25G510 - BOLT

37 6632454

  • 6632454 - PLUG
  • BUTTON

38 6569033

  • 6569033 - WINDOW
  • .25" poly carbonate

39 6704434

  • 6704434 - DOOR
  • Use with new style latch - Was 6576465

40 6568724

  • 6568724 - SHIELD
  • Use with old style latch

41 84G3112

  • 84G3112 - SCREW THD ROLLING TT

42 6631009

  • 6631009 - SWITCH

43 6632560

  • 6632560 - KEY
  • Use with old style latch

44 6705216

  • 6705216 - WINDOW
  • top - Was 6564829

45 83D6

  • 83D6 - LKNUT HEX FLG GR8
  • Was 85D000006B

46 35C616

  • 35C616 - SCREW FLGD HEX CAP
  • Was 17C000616B

47 6564830

  • 6564830 - WINDOW
  • rear

48 6563410

  • 6563410 - DECAL
  • WARNING

49 6569352

  • 6569352 - SPACER

50 57D5

  • 57D5 - NUT HEX FLNG GR8

51 6576238

  • 6576238 - CLIP
  • window

52 6647635

  • 6647635 - KNOB

53 6641274

  • 6641274 - LATCH
  • new style

54 6631935

  • 6631935 - HANDLE

55 7G416

  • 7G416 - BOLT
  • Was 7G000412B

56 6704426

  • 6704426 - RETAINER
  • Was 6578398

57 45G1008

  • 45G1008 - BOLT

58 6531482

  • 6531482 - DECAL
  • WARNING
  • warning

59 7160765

  • 7160765 - NUT
  • Was 6660988

60 6662834

  • 6662834 - SPRING

61 6570279

  • 6570279 - INSTRUCTIONS
