Bobcat
/
843.0
/

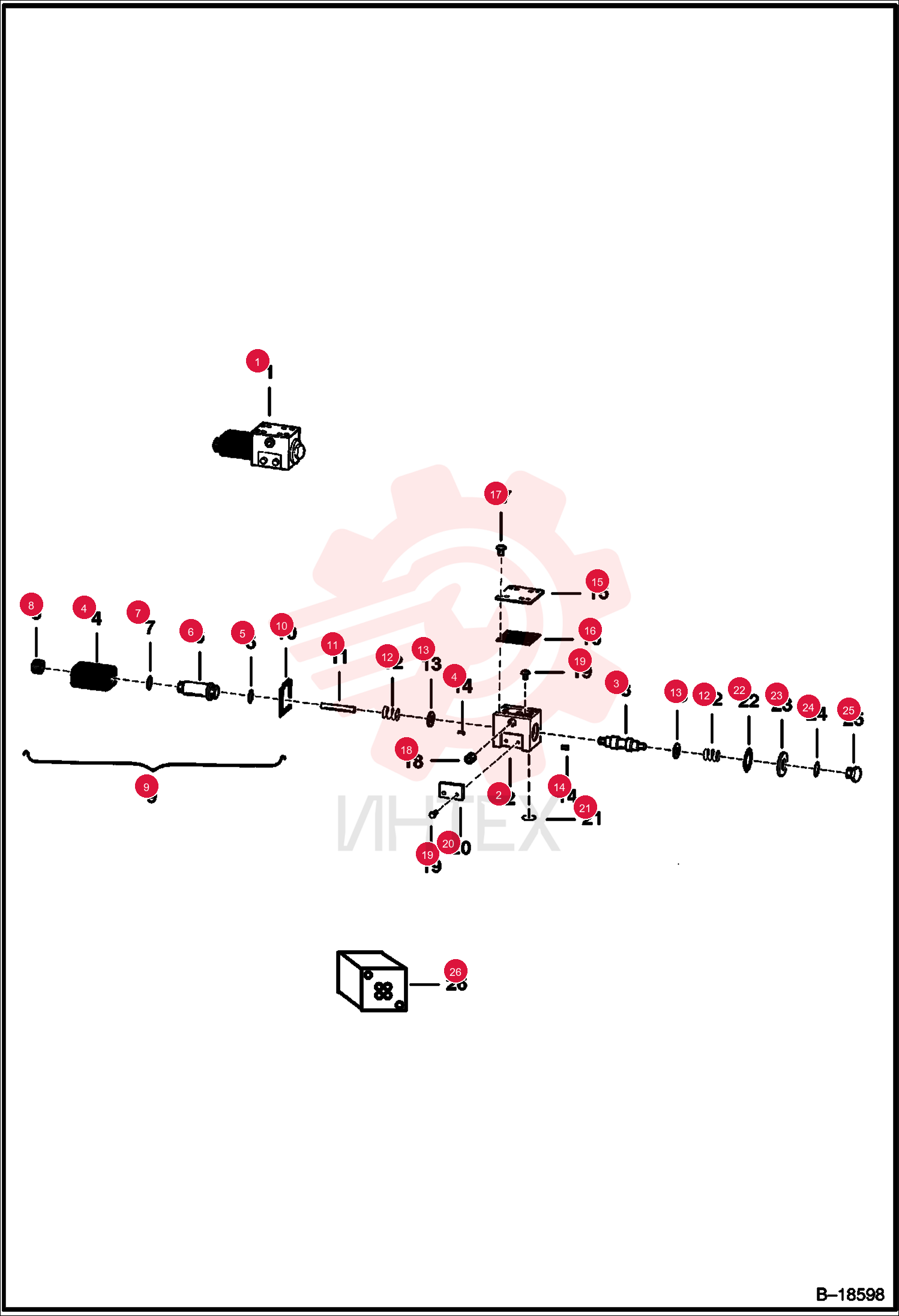

VALVE, SOLENOID 6649944

VALVE, SOLENOID 6649944

VALVE, SOLENOID 6649944

1 6649944

  • 6649944 - VALVE
  • SOLENOID

2 6651173

  • 6651173 - HOUSING

3 6651174

  • 6651174 - PISTON

4 6651175

  • 6651175 - SOLENOID

5 6651180

  • 6651180 - O-RING

6 6651200

  • 6651200 - O-RING

7 6651199

  • 6651199 - RETAINER

8 6651201

  • 6651201 - CORE ASSEMBLY
  • W/Ref. 5-8

9 6651185

  • 6651185 - GASKET

10 6651187

  • 6651187 - PIN
  • drive

11 6651182

  • 6651182 - SPRING

12 6651179

  • 6651179 - WASHER

13 6651183

  • 6651183 - ROLL PIN

14 6651188

  • 6651188 - PLATE

15 6651177

  • 6651177 - GASKET

16 6651186

  • 6651186 - SCREW

17 6651184

  • 6651184 - PLUG

18 6651191

  • 6651191 - SCREW

19 6651190

  • 6651190 - PLATE

20 6651178

  • 6651178 - O-RING

21 6651176

  • 6651176 - GASKET

22 6651195

  • 6651195 - WASHER

23 6651180

  • 6651180 - O-RING

24 6651193

  • 6651193 - PLUG

25 6659255

  • 6659255 - BLOCK
  • PORT
