Bobcat
/
843.0
/

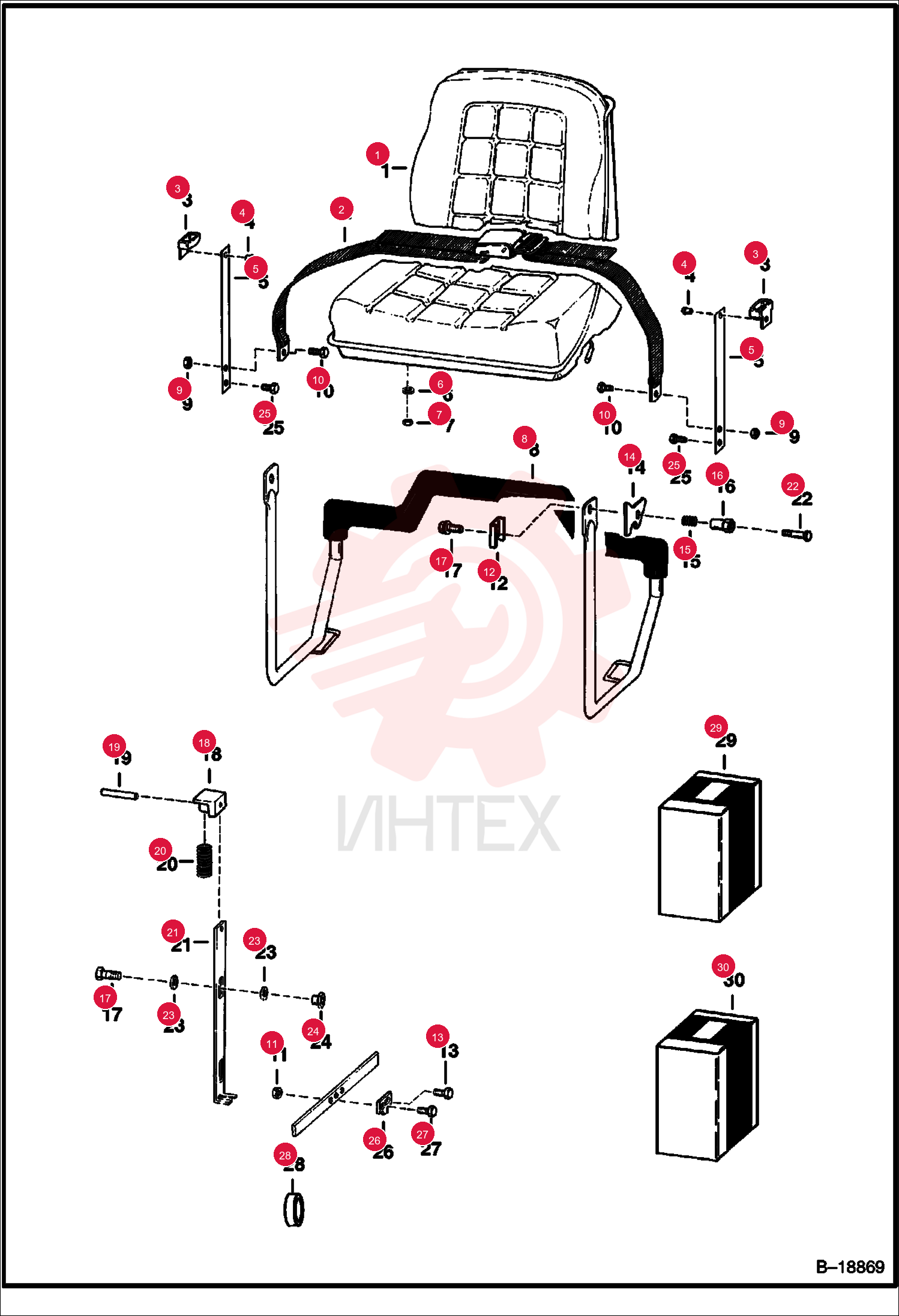

SEATBELT STANDARD 6675074 (3)

SEATBELT STANDARD 6675074 (3)

SEATBELT STANDARD 6675074 (3)

1 6675074

  • 6675074 - SEATBELT STANDARD
  • W/O spring plates

2 6630207

  • 6630207 - RIVET POP
  • Was 6512797

3 6711908

  • 6711908 - SPNG PLATE
  • Use W/Ref. 2 (NLA/6667875 seat belt)

4 6725373

  • 6725373 - SPRING BELT GUIDE
  • Use W/Ref. 2 (6675074 seal belt)

5 4E5

  • 4E5 - WASHER

6 61D5

  • 61D5 - NUT HEX FINISHED GR5

7 6706324

  • 6706324 - ARM
  • SEAT BAR
  • Was 6703301

8 85D7

  • 85D7 - NUT PRETRQ HEX LOCK

9 17C716

  • 17C716 - BOLT

10 83D6

  • 83D6 - LKNUT HEX FLG GR8

11 6563557

  • 6563557 - WASHER

12 17C616

  • 17C616 - BOLT 5

13 6563313

  • 6563313 - RETAINER

14 6704453

  • 6704453 - SPRING COMPRESSION
  • Was 6503387

15 6568742

  • 6568742 - BUSHING

16 17C612

  • 17C612 - SCREW HEX CAP

17 6563148

  • 6563148 - BLOCK
  • SPRING

18 14J2512

  • 14J2512 - PIN 5

19 6702430

  • 6702430 - SPRING
  • COMPRESSION
  • Was 6563149

20 6563160

  • 6563160 - LOCK

21 35C608

  • 35C608 - BOLT

22 6563152

  • 6563152 - WASHER
  • nylon

23 6559479

  • 6559479 - NUT RETAINING

24 84G3712

  • 84G3712 - SCREW THD ROLLING TT

25 6563151

  • 6563151 - LINK

26 17C614

  • 17C614 - BOLT

27 6562956

  • 6562956 - CLAMP
