Bobcat
/
853.0
/

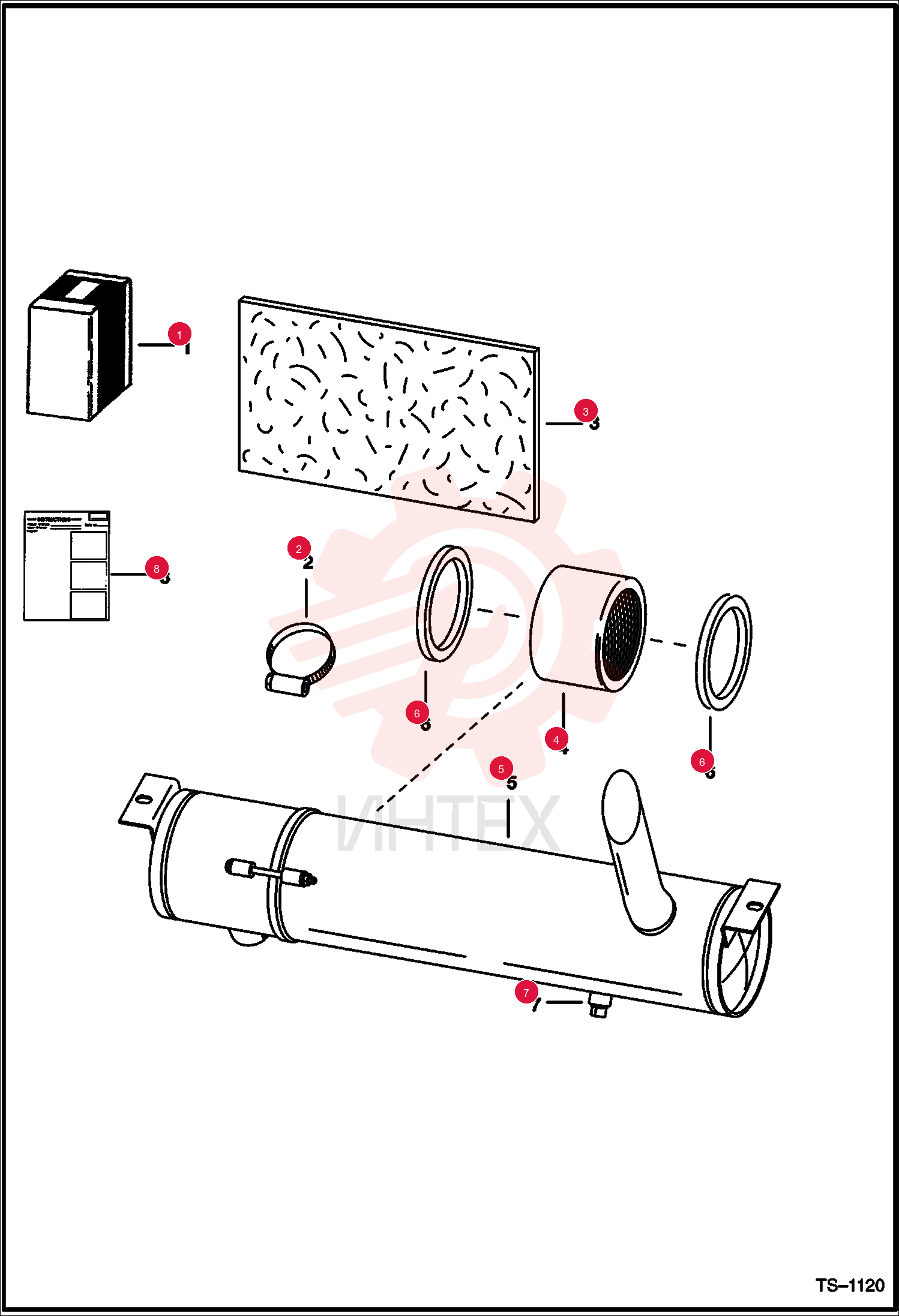

CLAMP 44H48 (4)

CLAMP 44H48 (4)

CLAMP 44H48 (4)

1 44H48

  • 44H48 - CLAMP
  • Was 6515576

2 6571628

  • 6571628 - INSULATION

3 6632304

  • 6632304 - PURIFIER
  • Also Order Ref. 6

4 6662299

  • 6662299 - MUFFLER
  • W/Ref. 6

5 17C464

  • 17C464 - BOLT

6 25E14

  • 25E14 - WASHER FLAT

7 85D4

  • 85D4 - NUT 5

8 6633675

  • 6633675 - GASKET

9 6661062

  • 6661062 - PLUG
  • PIPE
  • brass - 0.38"

10 6570254

  • 6570254 - INSTRUCTIONS
