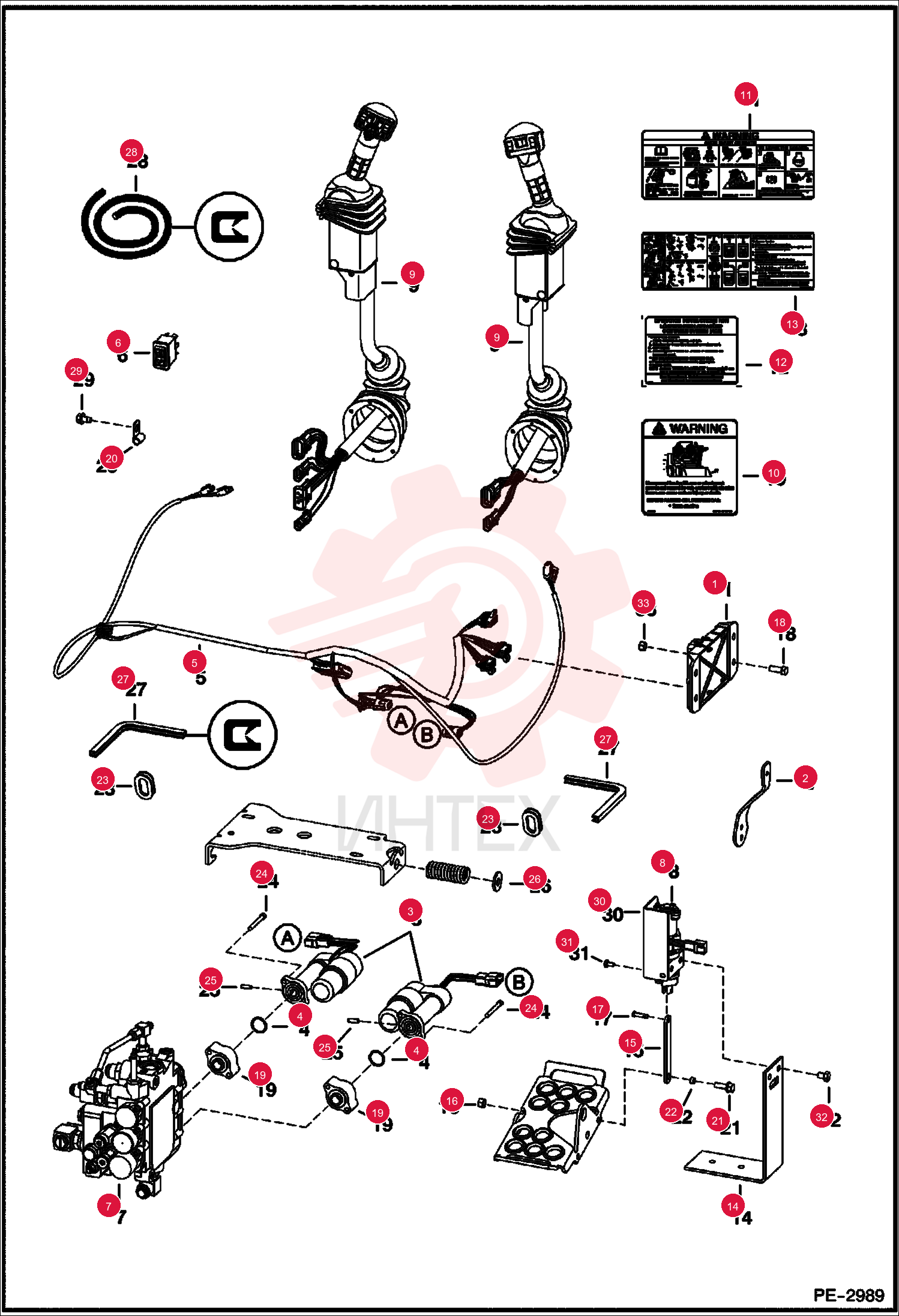

CONTROLLER, ACS 6680410
1 6680410
- 6680410 - CONTROLLER
- ACS
- plastic - W/ 3-connector plug - Was 6676337
2 6717393
- 6717393 - LEVER
- throttle
3 7101672
- 7101672 - ACTUATOR
- W/Ref. 4 (58K120 O-ring) - Use W/Ref. 19 (7101705 adapter)
4 58K120
- 58K120 - O-RING
- Use W/Ref. 3 (NLA/ 6678775 actuator & 7101672 actuator)
5 6686220
- 6686220 - O-RING
- Use W/Ref. 3 (NLA/ 7103129 actuator)
6 6733292
- 6733292 - HARNESS
- ACS
- Was 6726925
7 6676537
- 6676537 - SWITCH
8 6684912
- 6684912 - SENSOR
- FOOT RH
- - Was 6680420
9 6676029
- 6676029 - SOLENOID
- LOCK SPOOL
10 6684911
- 6684911 - SENSOR
- FOOT LH
- - Was 6680421
11 6676029
- 6676029 - SOLENOID
- LOCK SPOOL
12 6718397
- 6718397 - DECAL
- WARNING
- no riders
13 6728540
- 6728540 - DECAL
- WARNING
14 6727926
- 6727926 - DECAL
- OPERATION
- hand & foot controls - Was 6728045
15 7126869
- 7126869 - BRACKET
- Was 6726573
16 6726681
- 6726681 - LINK
- AFC POD
17 95D5
- 95D5 - NUT
18 6727496
- 6727496 - PIN
19 17C616
- 17C616 - BOLT 5
20 6725128
- 6725128 - ADAPTER
- actuator - W/o-ring groove - Use W/Ref. 3 (NLA/ 6678775 actuator)
21 7101705
- 7101705 - ADAPTER
- ACTUATOR
- W/O o-ring groove - Use W/Ref. 3 (NLA/ 7103129 actuator & 7101682 actuator)
22 30H62
- 30H62 - CLIP
23 35C514
- 35C514 - SCREW FLGD HEX CAP
24 6729467
- 6729467 - SPACER
- COLLAR
25 6714726
- 6714726 - PLUG
26 69G436
- 69G436 - BOLT
27 7108236
- 7108236 - PIN
- Was 6718506
28 25E24
- 25E24 - WASHER
- Was 25E000022B
29 6654139
- 6654139 - MOULDING BULK/FT
- sold per foot
30 84G3710
- 84G3710 - SCREW
31 43C408
- 43C408 - BOLT
32 17C608
- 17C608 - BOLT
33 95D6
- 95D6 - NUT HEXAGON
