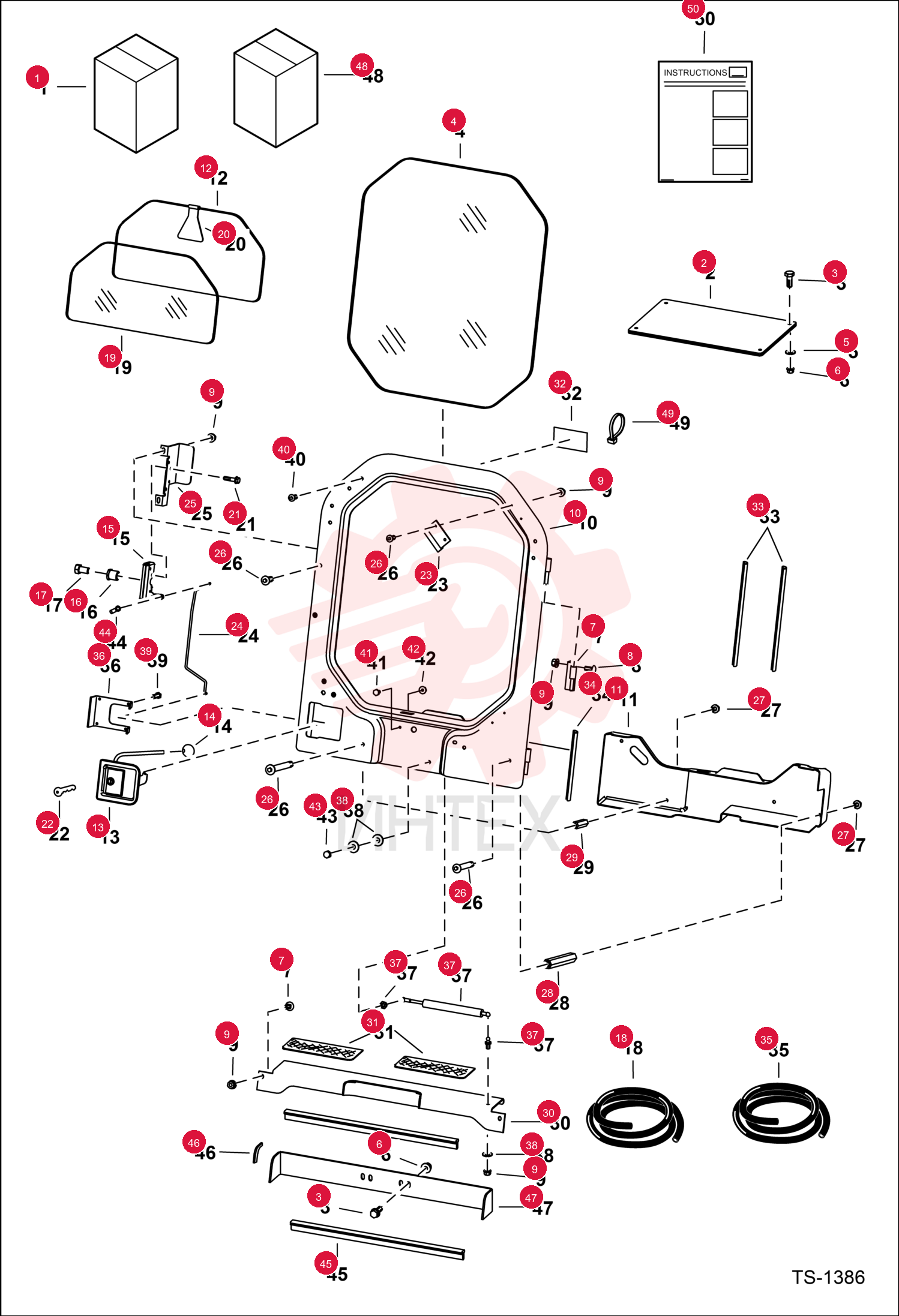

WINDOW 6705216
1 6705216
- 6705216 - WINDOW
- top
2 35C616
- 35C616 - SCREW FLGD HEX CAP
3 6708499
- 6708499 - WINDOW
- .5'' thick - plexiglass - for special applications door
4 25E18
- 25E18 - WASHER FLAT PLAIN
5 83D6
- 83D6 - LKNUT HEX FLG GR8
6 6707216
- 6707216 - HINGE
7 10C512
- 10C512 - BOLT SQ NECK RND HD
8 57D5
- 57D5 - NUT HEX FLNG GR8
9 6707220
- 6707220 - FRAME
- DOOR CAB
- Also Order Ref. 32
10 6707179
- 6707179 - SHIELD
11 6665530
- 6665530 - LATCH
- W/Ref. 14 - Also Order Ref. 22
12 6647635
- 6647635 - KNOB
13 6665531
- 6665531 - LATCH
14 6568047
- 6568047 - STRIKER
- bushing
15 17C712
- 17C712 - BOLT
16 6554149
- 6554149 - CORD
- bulk - sold per foot
17 6665568
- 6665568 - SEAL BULK
- bulk - sold per foot
18 6579325
- 6579325 - WINDOW
- .25" thick poly carbonate
19 6731478
- 6731478 - TAG EXIT
- Was 6559515
20 35C412
- 35C412 - SCREW FLGD HEX CAP
21 6632560
- 6632560 - KEY
22 6708500
- 6708500 - CLAMP
23 6707221
- 6707221 - ROD
- latch release
24 6707222
- 6707222 - MOUNT
- latch
25 25G512
- 25G512 - SCREW
26 35C510
- 35C510 - SCREW FLGD HEX CAP
27 6707223
- 6707223 - COUPLING
28 6707224
- 6707224 - COUPLING
29 6708926
- 6708926 - SHIELD
- bolts to cab
30 6703757
- 6703757 - TREAD
- SAFETY
31 7234369
- 7234369 - DECAL
- EXIT
- Was 6707852
32 6513152
- 6513152 - SEAL
- BULK/FT 25
- bulk - sold per foot
33 6703751
- 6703751 - RETAINER
34 6630797
- 6630797 - GAS SPRING
35 6632221
- 6632221 - BALL STUD
- ball
36 2756257
- 2756257 - CLIP
- spring
37 25E16
- 25E16 - WASHER FLAT PLAIN
38 45G1008
- 45G1008 - BOLT
39 5289686
- 5289686 - PLUG
- black - 0.38" dia hole
40 17C408
- 17C408 - BOLT
41 55D4
- 55D4 - NUT
42 46D5
- 46D5 - NUT LOW CROWN ACORN
43 6512274
- 6512274 - CLIP
- NLA - Was 6512274
44 6632045
- 6632045 - SEAL
- BULK
- bulk - sold per foot
45 6707236
- 6707236 - SHIELD
- bolts to mainframe
46 6708976
- 6708976 - KIT
- SHIELD
- shield - Ref. 3
- 6
- 7
- 9
- 30
- 31 & 46-48
47 6610510
- 6610510 - STRAP
- TIE 10
48 6724029
- 6724029 - INSTRUCTIONS
