Bobcat
/
873.0
/

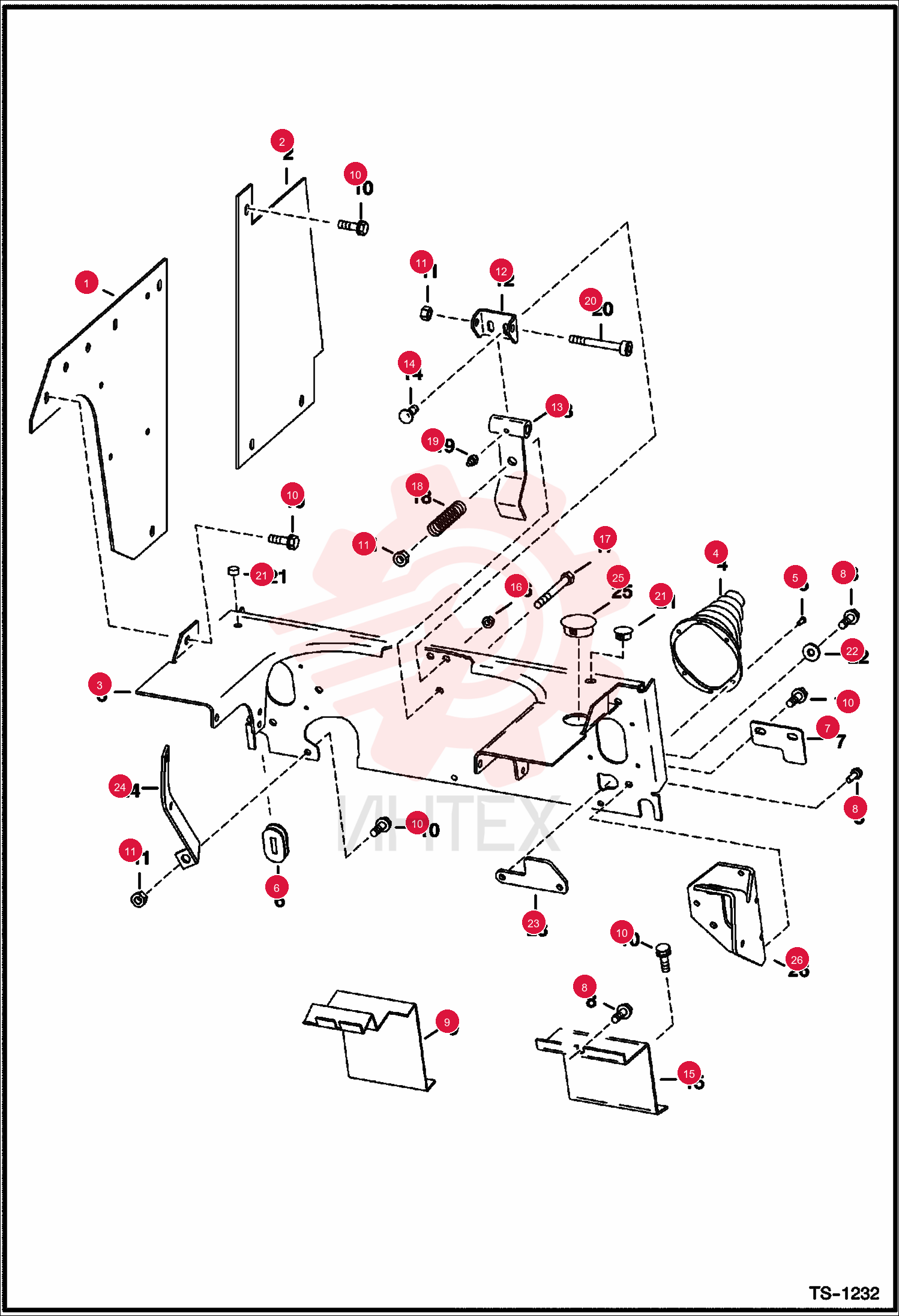

PANEL 6710325

PANEL 6710325

PANEL 6710325

1 6710325

  • 6710325 - PANEL
  • Was 6708510

2 6706335

  • 6706335 - PANEL

3 6716013

  • 6716013 - SHIELD

4 6706336

  • 6706336 - SHIELD

5 6532127

  • 6532127 - BOOT AND PLATE ASSY

6 6630207

  • 6630207 - RIVET POP

7 6577961

  • 6577961 - GROMMET

8 6707344

  • 6707344 - COVER

9 84G3716

  • 84G3716 - SCREW THD ROLLING TT

10 6706331

  • 6706331 - STEPPANEL

11 84G3712

  • 84G3712 - SCREW THD ROLLING TT

12 95D6

  • 95D6 - NUT HEXAGON
  • Was 91D000006B

13 6701951

  • 6701951 - BRACKET

14 6701950

  • 6701950 - SPRG PLT.

15 10C512

  • 10C512 - BOLT SQ NECK RND HD

16 6706330

  • 6706330 - PEDAL

17 59D5

  • 59D5 - NUT LOCK HEX PT

18 17C664

  • 17C664 - BOLT

19 6505082

  • 6505082 - SPRING

20 10H25

  • 10H25 - FTG GREASE STRAIGHT

21 38C836

  • 38C836 - BOLT

22 6657719

  • 6657719 - PLUG
  • 0.75" dia hole - Was 6649949

23 616783

  • 616783 - WASHER

24 6703330

  • 6703330 - STOPLEVER
  • stop

25 6707344

  • 6707344 - COVER
  • stop - Was 6713343

26 6703551

  • 6703551 - BRACE

27 6707674

  • 6707674 - PLUG HOLE
