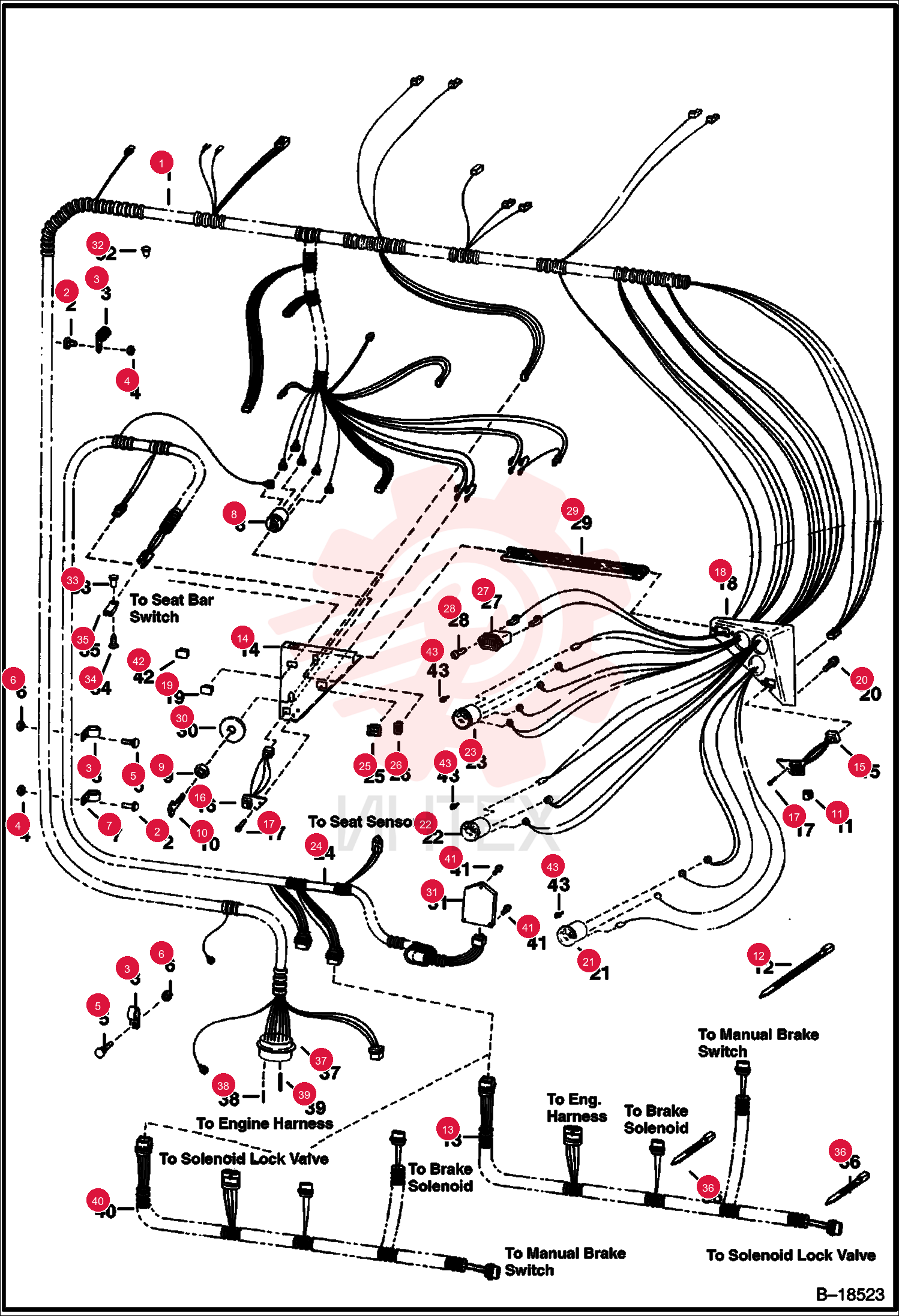

HARNESS 6707665
1 6707665
- 6707665 - HARNESS
2 6711767
- 6711767 - HARNESS
- CAB BASE
- for side console
3 35C410
- 35C410 - SCREW HEX HD W/F GR5
4 30H56
- 30H56 - CLIP INSULATED
5 83D4
- 83D4 - LKNUT HEX FLG GR8
6 10C412
- 10C412 - BOLT
7 61D4
- 61D4 - NUT 5
8 30H29
- 30H29 - CLAMP
9 6665606
- 6665606 - SWITCH
- IGN
- ignition - W/Ref. 9 & 10
10 6674202
- 6674202 - NUT
- Was 6598721
11 6693241
- 6693241 - KEY (2)
- ignition - single key W/O ring
12 6660594
- 6660594 - BUTTON
- on/off
13 6610510
- 6610510 - STRAP
- TIE 10
14 6706876
- 6706876 - HARNESS
- See Ref. 40
15 6710313
- 6710313 - HARNESS
- See Ref. 40
16 6708425
- 6708425 - PANEL
- LH
17 6708426
- 6708426 - INSTPANEL
- LH - export
18 6712152
- 6712152 - INSTPANEL
- LH for side console
19 6667904
- 6667904 - SWITCH
- aux. controls module - W/Ref. 11 - 5-pin connector
20 6667903
- 6667903 - SWITCH
- AUX
- aux. controls module - W/Ref. 11 - 4-pin connector
21 6674220
- 6674220 - SWITCH
- OVERRIDE TRACTION
- push-to-operate
22 6667905
- 6667905 - SWITCH
- traction override - Was 6706995
23 6669225
- 6669225 - SCREW
- Was 58G000408B
24 6706896
- 6706896 - INSTR PNL
- RH
25 6665314
- 6665314 - PLUG ROCKER SW
- Was 6719038
26 6702642
- 6702642 - SCREW WSHRD PLASTITE
27 7343542
- 7343542 - GAUGE OIL TEMP
- engine temp - Was 6669662
28 6669664
- 6669664 - GAUGE VOLT
- W/O clamp
29 6669665
- 6669665 - GAUGE FUEL
- W/O clamp
30 6706828
- 6706828 - HARNESS
- Was NLA
31 6710312
- 6710312 - HARNESS
32 6712134
- 6712134 - HARNESS
- CONTROLLER
33 6712135
- 6712135 - HARNESS
34 6713932
- 6713932 - HARNESS
35 6713933
- 6713933 - HARNESS
36 6665318
- 6665318 - SWITCH
- glow plug
37 6668927
- 6668927 - SWITCH
- glow plug
38 6636018
- 6636018 - LIGHT INDICATOR
- indicator
39 6664886
- 6664886 - METER HOUR
40 65G608
- 65G608 - SCREW PNH SLTD TAP
41 6578780
- 6578780 - CROSSMEMBER
42 6709027
- 6709027 - PLATE 10
- brake start
43 6680446
- 6680446 - CONTROLLER
- Was 6674223
44 6680444
- 6680444 - CONTROLER
- AHC - Was 6674225
45 6707674
- 6707674 - PLUG HOLE
- round - plugs 1.28" (32
- 5mm) diameter hole in cab
46 6665321
- 6665321 - RIVET PLASTIC MALE
- plastic male
47 6665322
- 6665322 - RIVET PLASTIC FEMALE
- plastic female
48 6665000
- 6665000 - BRACKET MOUNTING
49 6665527
- 6665527 - TIE
- never modify
50 6664584
- 6664584 - CONNECTOR
- Also Order Ref. 38 & 39 - Was 6665683
51 6664827
- 6664827 - PIN
52 6664040
- 6664040 - PIN 5
53 6712523
- 6712523 - HARNESS
- for relocation of tilt lock valve solenoid to control valve
54 6671037
- 6671037 - TIE
- yellow
55 91G412
- 91G412 - SCREW
- cross recess pan head - Was 17C000410B
56 25G412
- 25G412 - SCREW SKT BTN HD CAP
- hex socket button head
57 6668814
- 6668814 - SWITCH
- BPV
58 6599696
- 6599696 - SOCK AND BULB
- assy.
59 895771
- 895771 - #161 BULB
