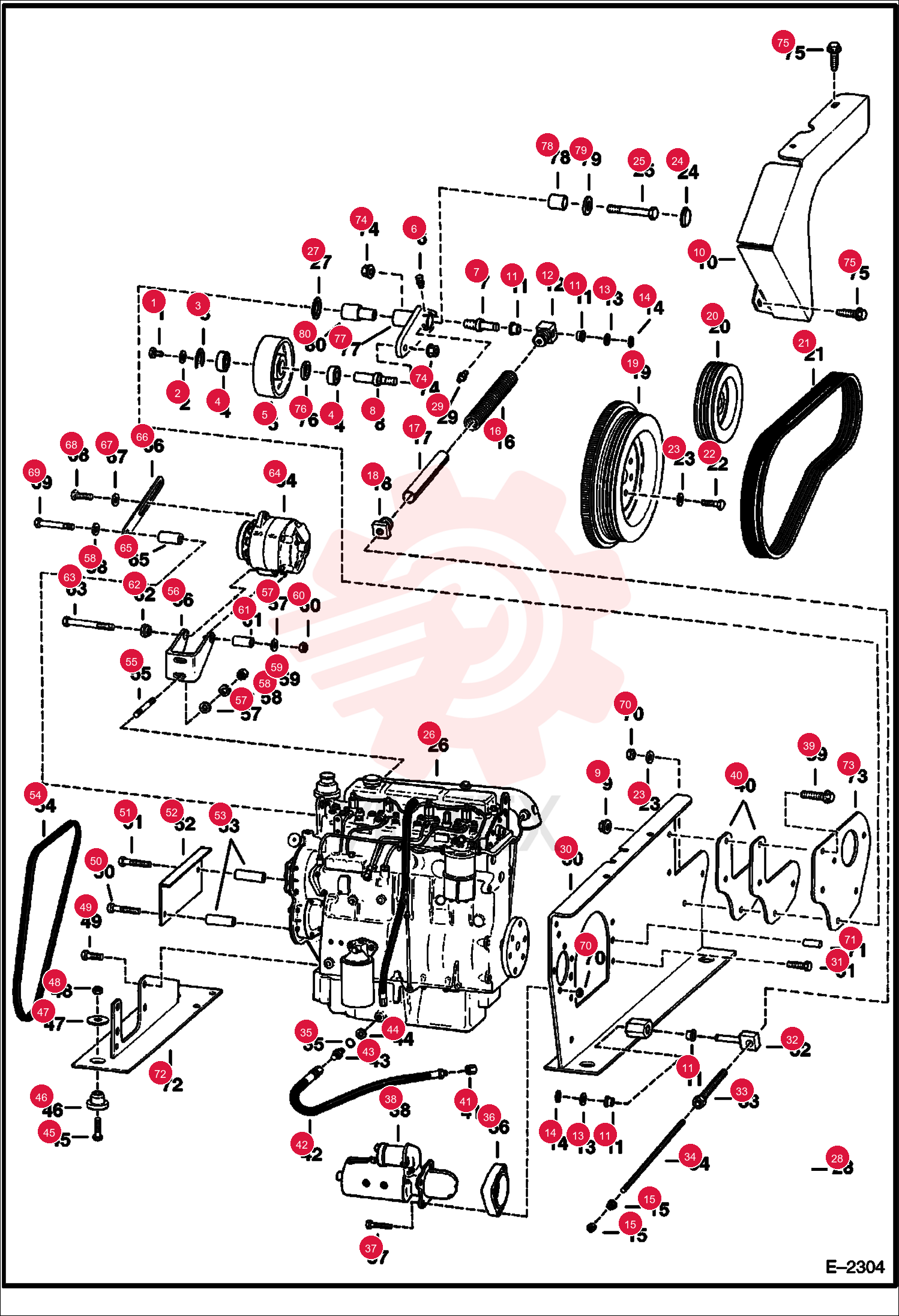

BOLT 17C608
1 17C608
- 17C608 - BOLT
2 27E6
- 27E6 - WASHER HARDEN PLAIN
3 941388
- 941388 - RING
4 6661229
- 6661229 - BEARING
- BALL
5 6587035
- 6587035 - PULLEY
- idler
6 6589189
- 6589189 - SPINDLE
7 6589190
- 6589190 - SPINDLE
8 89D8
- 89D8 - NUT
9 6596836
- 6596836 - SHIELD
- Was 6589546
10 1313116
- 1313116 - BUSHING
11 6568424
- 6568424 - ADAPTER
12 25E21
- 25E21 - WASHER FLAT PLAIN
13 710779
- 710779 - RING
14 61D4
- 61D4 - NUT 5
15 6569498
- 6569498 - SPRING ASSEMBLY
- W/Ref. 17
16 6568425
- 6568425 - ADAPTER
17 6576512
- 6576512 - FLYWHEEL
- W/Ring Gear
18 6515771
- 6515771 - GEAR
- RING
19 6567024
- 6567024 - PULLEY
- HYDRO. PUMP
20 6569809
- 6569809 - BELT
- DRIVE
21 18C824
- 18C824 - BOLT
22 6557929
- 6557929 - WASHER
23 6700782
- 6700782 - CAP
- GREASE
24 17C896
- 17C896 - BOLT
- Was 17C000868B
25 6662789
- 6662789 - SEAL
26 83D8
- 83D8 - LKNUT HEX FLG GR8
27 10H25
- 10H25 - FTG GREASE STRAIGHT
28 6589233
- 6589233 - MOUNT
29 18C616
- 18C616 - BOLT 5
30 6568830
- 6568830 - PINSWIVEL
31 6568826
- 6568826 - BOLT
- HOLW
- hollow
32 6568828
- 6568828 - ROD
- THRED
33 79K8
- 79K8 - O RING 10
34 6562480
- 6562480 - BLOCK
35 17C644
- 17C644 - BOLT
- Was 17C000640B
36 35C840
- 35C840 - BOLT
37 6596199
- 6596199 - SPACER
- Was 6588899
38 36K6
- 36K6 - CAP
39 6805079
- 6805079 - HOSE
- Was 6564639
40 15K6
- 15K6 - ADAPTER
- W/Ref. 35
41 6571723
- 6571723 - WASHER
- O-Ring retainer - Was 6804342
42 17C1052
- 17C1052 - BOLT
43 6513606
- 6513606 - MOUNT
- neoprene - Was 6514897
44 6569054
- 6569054 - WASHER
45 85D10
- 85D10 - NUT
- 5
46 17C1020
- 17C1020 - BOLT 5
- Was 8C001020B
47 18C580
- 18C580 - BOLT
48 18C556
- 18C556 - BOLT
49 6568797
- 6568797 - SHIELD
50 6568798
- 6568798 - SPACER
51 6516339
- 6516339 - BELT
- FAN
- Was 6631520
52 3725702
- 3725702 - STUD
53 999672
- 999672 - BRACKET
54 3725703
- 3725703 - WASHER
55 4E6
- 4E6 - WASHER
56 62D6
- 62D6 - NUT HEX FINISHED GR5
57 3725381
- 3725381 - NUT
58 907237
- 907237 - SLEEVE
59 907238
- 907238 - SPACER
60 3455218
- 3455218 - SCREW
61 6513120
- 6513120 - SPACER
62 6631521
- 6631521 - LEVER
63 27E5
- 27E5 - WASHER
64 35C512
- 35C512 - SCREW FLGD HEX CAP
65 18C628
- 18C628 - BOLT
66 85D6
- 85D6 - NUT PRETRQ HEX LOCK
- Was 87D000006B
67 742510
- 742510 - PIN
68 6589234
- 6589234 - MOUNT
69 6596200
- 6596200 - MOUNT
70 57D10
- 57D10 - NUT
- Was 83D000010B
71 84G3712
- 84G3712 - SCREW THD ROLLING TT
72 6701159
- 6701159 - SHIM
73 6589139
- 6589139 - BRACKET
- idler
74 6587765
- 6587765 - BUSHING
- PRESS FIT
75 6587826
- 6587826 - WASHER
76 6596889
- 6596889 - IDLER PIN
- Was 6587801
