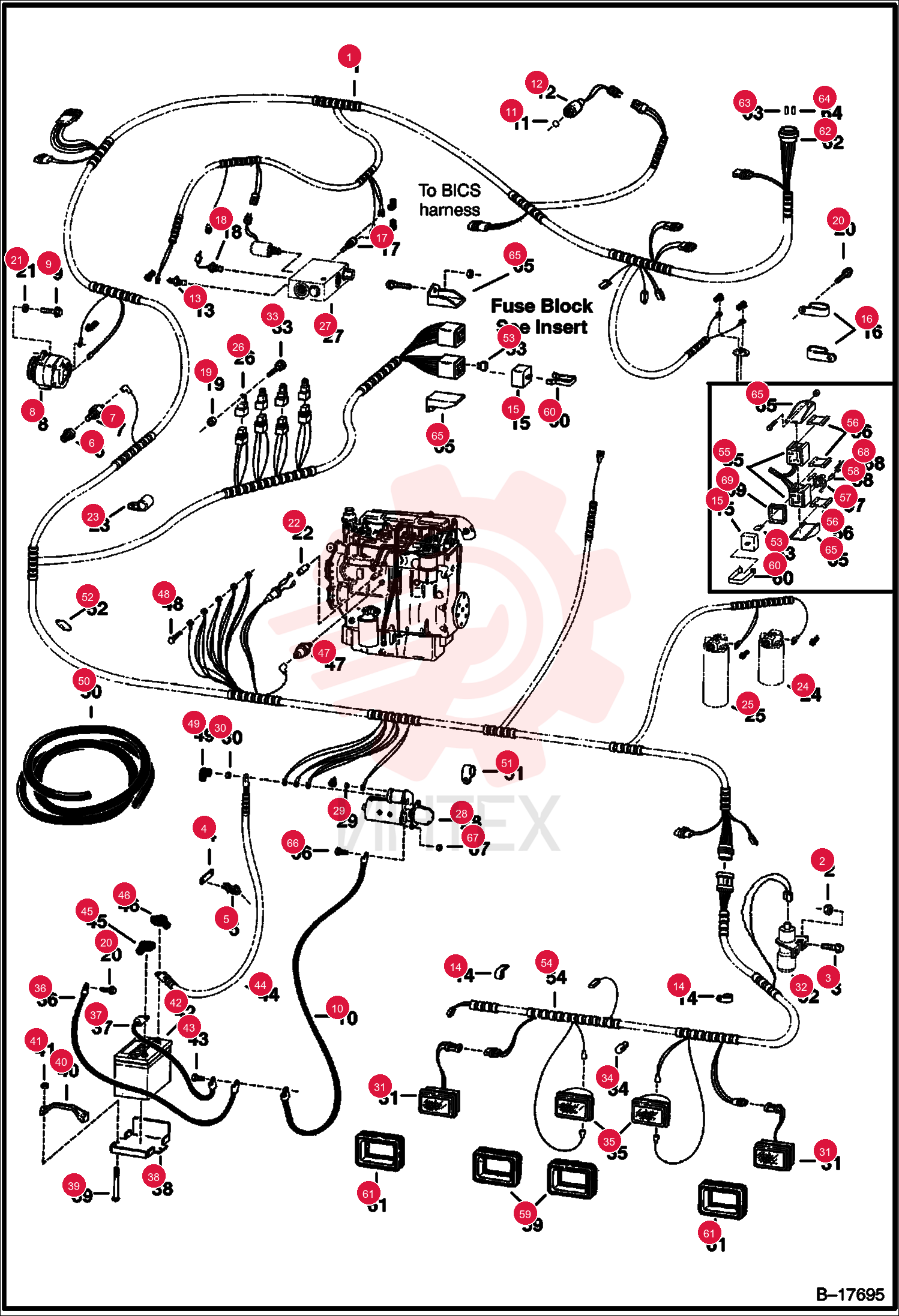

HARNESS 6597224
1 6597224
- 6597224 - HARNESS
- engine - Was 6594891
2 57D5
- 57D5 - NUT HEX FLNG GR8
3 35C516
- 35C516 - SCREW HEX HD W/F GR5
4 6567596
- 6567596 - MOUNT
5 6630586
- 6630586 - CLIP
6 19F4
- 19F4 - BUSHING
7 6658818
- 6658818 - SENDER TEMP
- eng temp - threaded connector
8 35C512
- 35C512 - SCREW FLGD HEX CAP
9 6572161
- 6572161 - CABLE
- ground
10 79K6
- 79K6 - O RING 10
11 6657267
- 6657267 - SWITCH
- hydro. press.
12 6631047
- 6631047 - SWITCH
- hydro. temp. & radiator temp. - 200 degrees
13 30H35
- 30H35 - CLIP INSULATED
14 6665358
- 6665358 - COVER
- FUSE
15 31H46
- 31H46 - CLAMP
16 6664440
- 6664440 - SWITCH
- hydro. temp. - 100 degrees
17 6657082
- 6657082 - TEMP SEND
- hydro. temp. - 230 degrees
18 61D4
- 61D4 - NUT 5
19 84G3712
- 84G3712 - SCREW THD ROLLING TT
20 27E5
- 27E5 - WASHER
21 909477
- 909477 - VALVEFUEL
- ELEC. SHUT-OFF
22 30H60
- 30H60 - CLIP INSULATED
23 6670312
- 6670312 - SWITCH
- MAGNETIC
- starter relay - Was 6665005
24 6651664
- 6651664 - STARTER
25 4DM5
- 4DM5 - NUT HEXAGON M5
26 4DM10
- 4DM10 - NUT HEX
27 6707789
- 6707789 - LIGHT ASSEMBLY
28 6666568
- 6666568 - BULB
- 21W
29 6667887
- 6667887 - BULB
- 21/5W
30 6668007
- 6668007 - SCREW
31 6668010
- 6668010 - LENS
32 10C412
- 10C412 - BOLT
33 898731
- 898731 - LAMP
34 6665431
- 6665431 - SOCKET AY
- threaded bulb
35 6665922
- 6665922 - HOUSING
- LAMP ASSY
- Ref. 34 - Was 6661353
36 6563025
- 6563025 - CABLE
- negative
37 6576189
- 6576189 - CABLE
- NEGATIVE
- negative
38 6561733
- 6561733 - BOX
- battery
39 6569203
- 6569203 - CLAMP BATTERY
40 59D5
- 59D5 - NUT LOCK HEX PT
41 7312553
- 7312553 - BATTERY 1000 CCA DRY
- - Was 6665427
42 7269857
- 7269857 - BATTERY WET 1000 CCA
43 18C520
- 18C520 - BOLT
44 6576188
- 6576188 - CABLE
- POSITIVE
- less conduit
45 6599652
- 6599652 - BOOT
46 2356058
- 2356058 - BOOT
47 6631010
- 6631010 - SWITCH
- PRESS OIL ENG
- eng. oil press.
48 18C508
- 18C508 - BOLT
49 6560172
- 6560172 - COVER
50 6563505
- 6563505 - CONDUIT
- bulk - sold per foot
51 30H50
- 30H50 - CLAMP
52 6567537
- 6567537 - DIODE
53 6707620
- 6707620 - FUSE
- 10A MINI 5
54 6707621
- 6707621 - FUSE
- 15A MINI 5
55 6707623
- 6707623 - FUSE
- 25A MINI 5
56 6594892
- 6594892 - HARNESS
- light
57 6665356
- 6665356 - FUSEBLOCK
- fuse - W/Ref. 69
58 6665411
- 6665411 - WEDGE
- red
59 6665357
- 6665357 - 2ND LOCK
- yellow
60 6650107
- 6650107 - SEAL
61 6703796
- 6703796 - MOUNT
- light
62 6708437
- 6708437 - SPRG CLIP
- fuse cover
63 6705980
- 6705980 - MOUNT
- Was 6705774
64 6664585
- 6664585 - CONNECTOR
- Also Order Ref. 63 & 64 - Was 6665682
65 6664828
- 6664828 - SOCKET
66 6664041
- 6664041 - PIN 10
67 6665369
- 6665369 - MOUNT
- FUSE
- fuse
68 17C644
- 17C644 - BOLT
69 85D6
- 85D6 - NUT PRETRQ HEX LOCK
- Was 87D000006B
70 6668719
- 6668719 - PIN
- female - for 14 gauge wire
71 6668720
- 6668720 - PIN
- female - Use W/ 14 ga wire
72 6671528
- 6671528 - CONN SEAL
- green square
