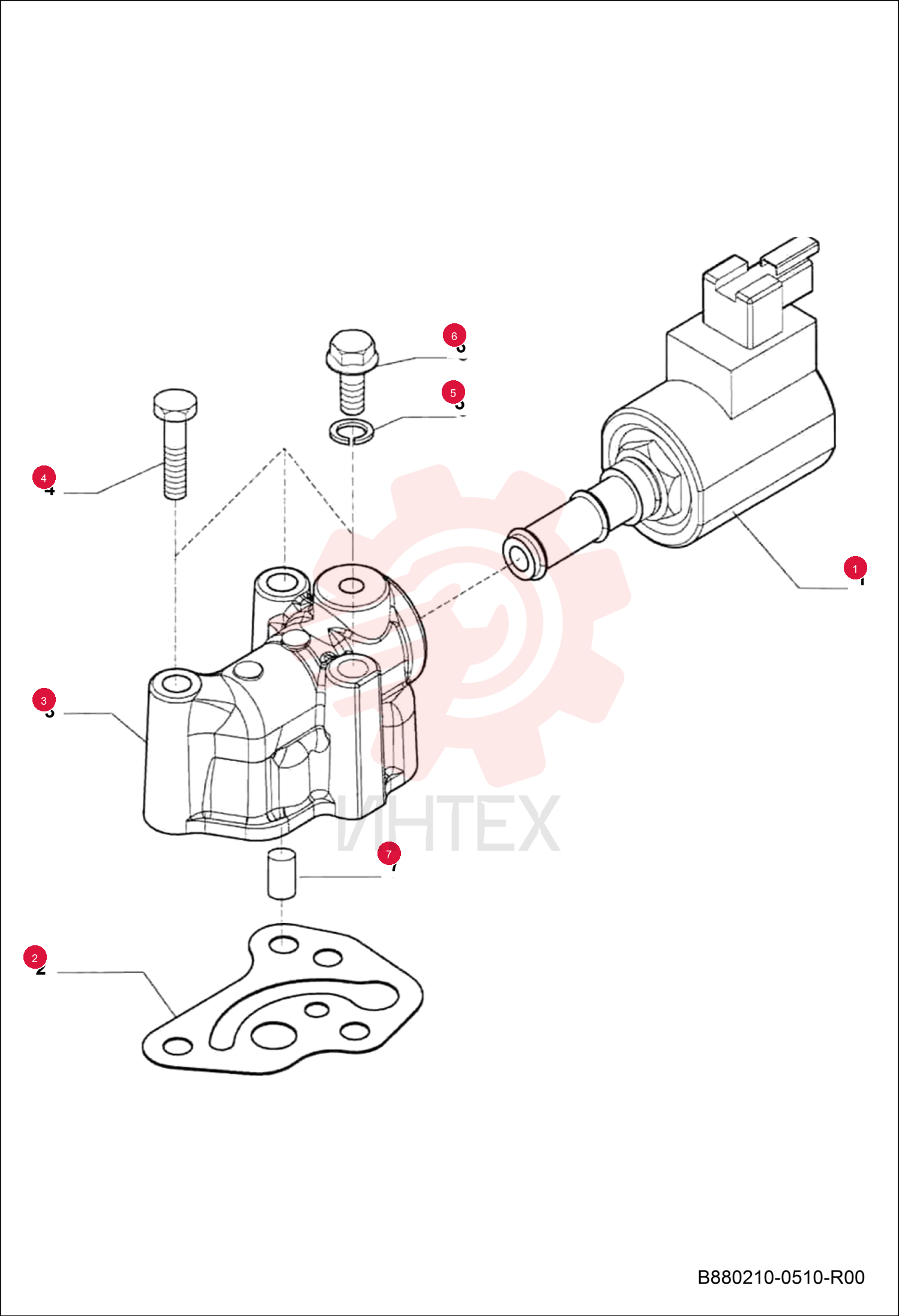

4WD ELECTRO-VALVE

4WD ELECTRO-VALVE

4WD ELECTRO-VALVE

1 7289490

  • 7289490 - 4WD ELECTRO-VALVE

2 7289491

  • 7289491 - GASKET

3 7289492

  • 7289492 - HOUSING

4 7289321

  • 7289321 - BOLT

5 7289337

  • 7289337 - WASHER

6 7289336

  • 7289336 - PLUG

7 7289493

  • 7289493 - BUSHING
