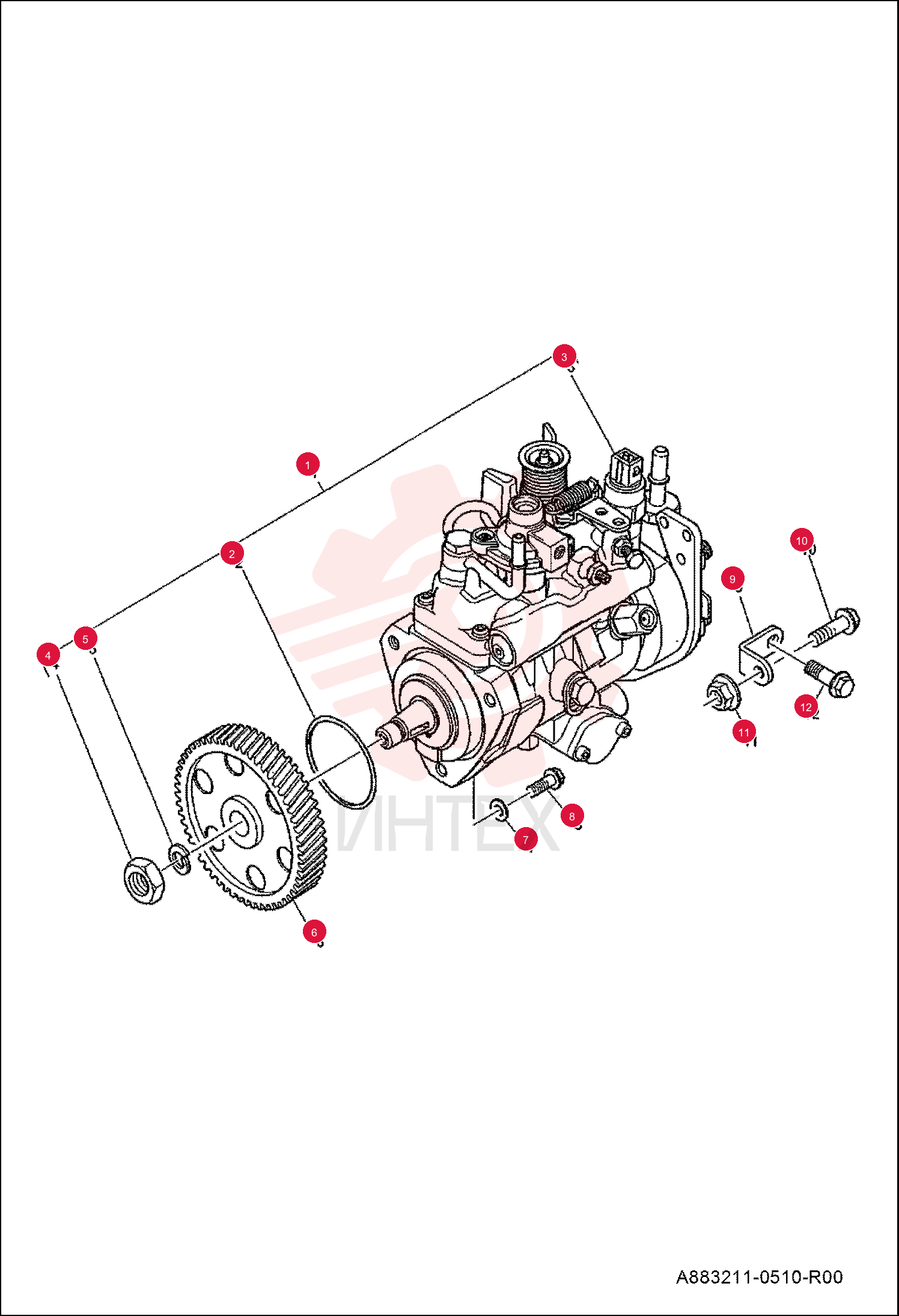

FUEL INJECTION PUMP

FUEL INJECTION PUMP

FUEL INJECTION PUMP

1 7288995

  • 7288995 - FUEL INJECTION PUMP

2 7022462

  • 7022462 - O-RING

3 7022466

  • 7022466 - SOLENOID ASSEMBLY

4 7288998

  • 7288998 - NUT

5 7288999

  • 7288999 - WASHER

6 7289000

  • 7289000 - INJECTION PUMP GEAR

7 7289001

  • 7289001 - WASHER

8 6668278

  • 6668278 - SCREW

9 6911966

  • 6911966 - BRACKET

10 7289004

  • 7289004 - SCREW

11 7289005

  • 7289005 - NUT

12 7289006

  • 7289006 - SCREW
