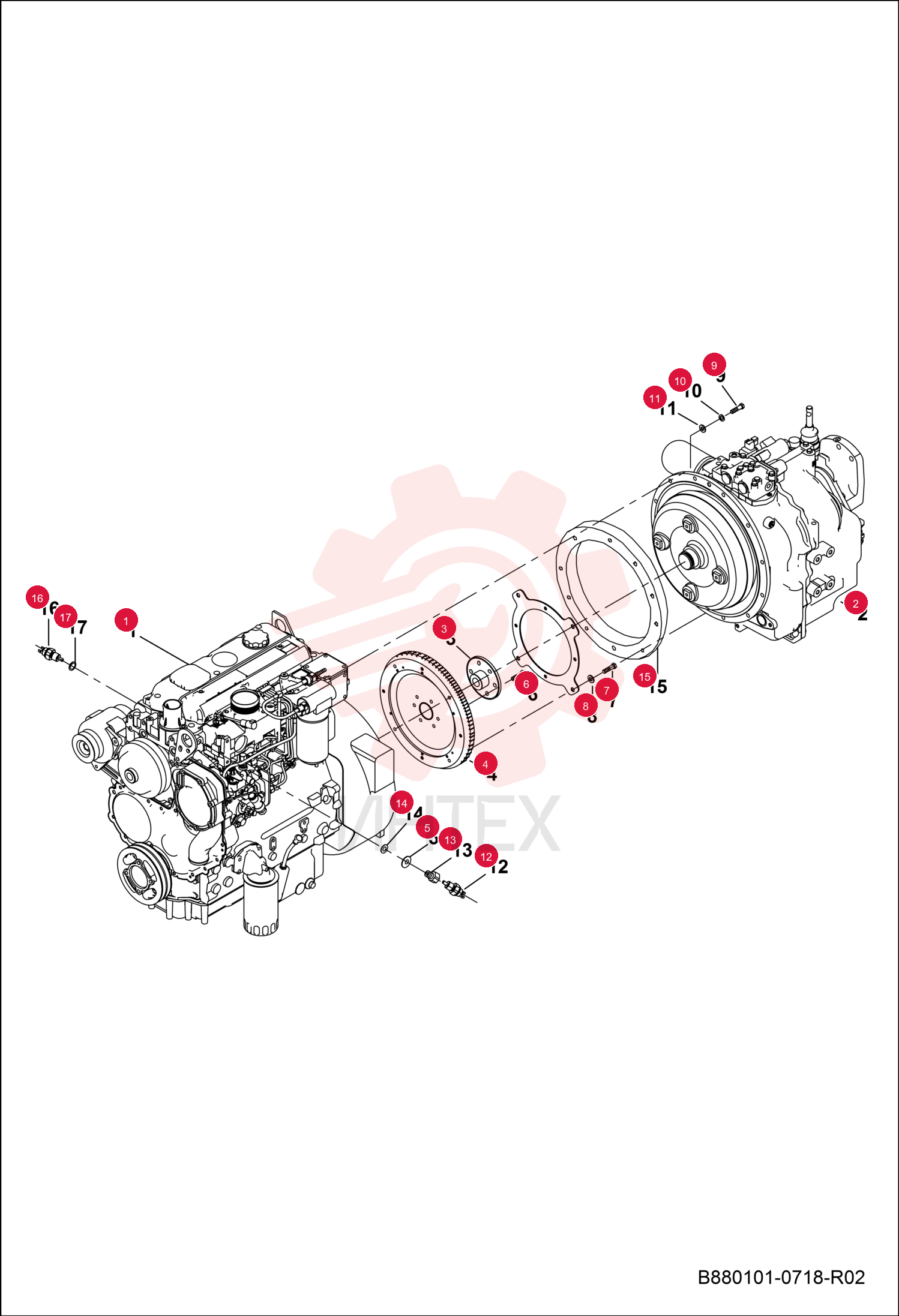

ENGINE ASSEMBLY

ENGINE ASSEMBLY

ENGINE ASSEMBLY

1 7288897

  • 7288897 - ENGINE ASSEMBLY

2 7289309

  • 7289309 - TRANSMISSION 4WD

3 7289310

  • 7289310 - FLYWHEEL COUPLING

4 7289311

  • 7289311 - FLYWHEEL

5 7290372

  • 7290372 - WASHER

6 7289312

  • 7289312 - BOLT

7 7289313

  • 7289313 - BOLT

8 7289314

  • 7289314 - WASHER FLAT

9 7289315

  • 7289315 - BOLT

10 7289259

  • 7289259 - WASHER LOCK

11 7289278

  • 7289278 - WASHER FLAT

12 7291032

  • 7291032 - SENSOR TEMP

13 7356394

  • 7356394 - ADAPTER

14 7290373

  • 7290373 - O-RING

15 7289319

  • 7289319 - FLANGE

16 7356393

  • 7356393 - SENDER

17 6911881

  • 6911881 - O RING
