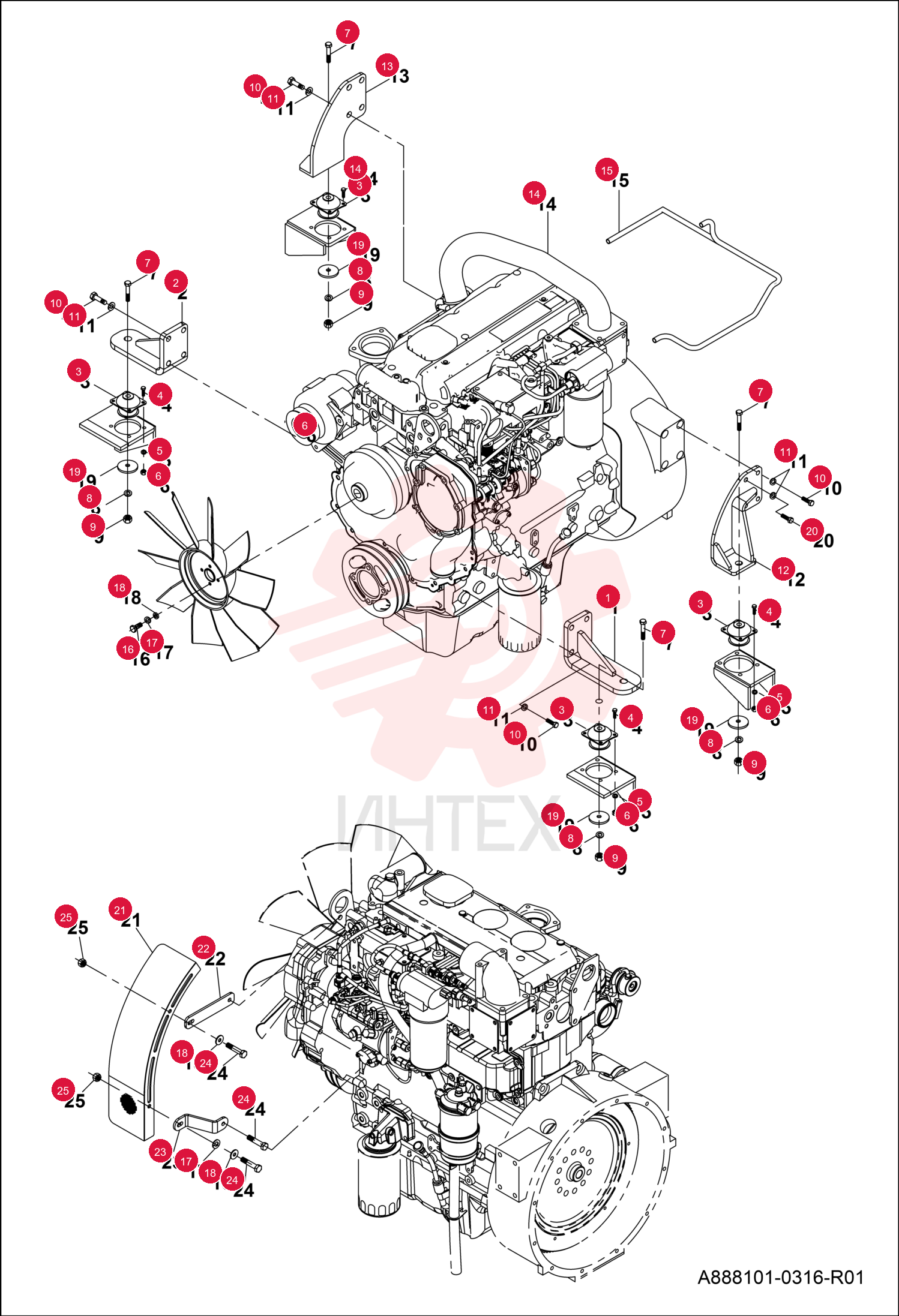

PLATE 7293099

PLATE 7293099

PLATE 7293099

1 7293099

  • 7293099 - PLATE

2 7293100

  • 7293100 - PLATE

3 7290986

  • 7290986 - RUBBER ENG.MOUNT

4 7289258

  • 7289258 - BOLT HEX

5 7289259

  • 7289259 - WASHER LOCK

6 7289637

  • 7289637 - NUT HEX

7 7288883

  • 7288883 - BOLT HEX

8 7293101

  • 7293101 - WASHER

9 7288885

  • 7288885 - NUT HEX

10 7290987

  • 7290987 - BOLT HEX

11 7288887

  • 7288887 - WASHER LOCK

12 7293102

  • 7293102 - PLATE

13 7293103

  • 7293103 - PLATE

14 7288897

  • 7288897 - ENGINE ASSEMBLY

15 7288894

  • 7288894 - INSTALMENT BAR

16 7289692

  • 7289692 - BOLT

17 7288891

  • 7288891 - WASHER LOCK

18 7288892

  • 7288892 - WASHER FLAT

19 7290990

  • 7290990 - WASHER FLAT

20 7289638

  • 7289638 - BOLT HEX

21 7305138

  • 7305138 - FAN COVER

22 7305139

  • 7305139 - BRACKET

23 7305140

  • 7305140 - BRACKET

24 7289261

  • 7289261 - BOLT HEX

25 7289641

  • 7289641 - NUT HEX
