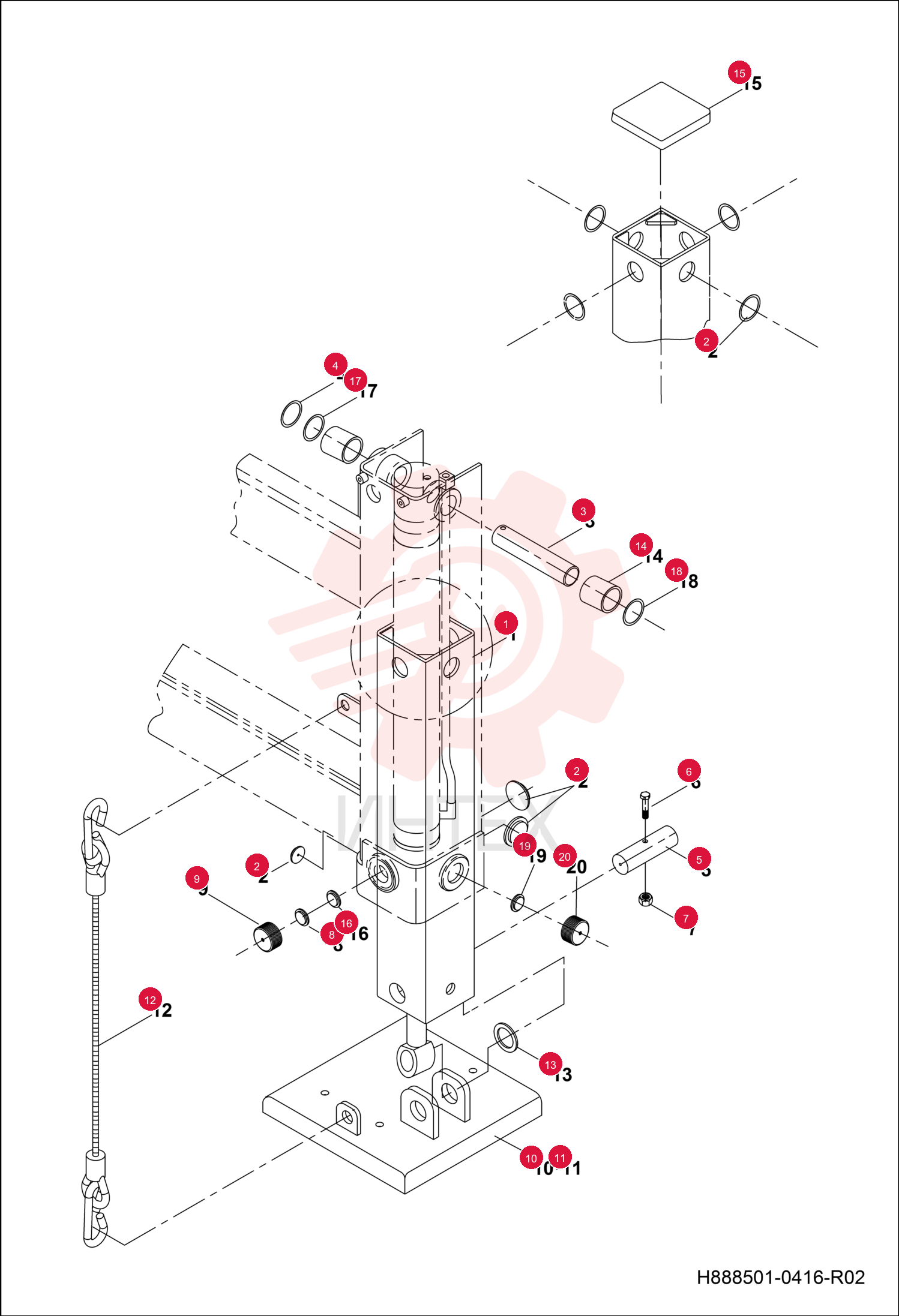

STABILIZER 7292505

STABILIZER 7292505

STABILIZER 7292505

1 7292505

  • 7292505 - STABILIZER

2 7292506

  • 7292506 - POLYAMIDE

3 7292507

  • 7292507 - PIN

4 7290773

  • 7290773 - SEGMENT

5 7292508

  • 7292508 - PIN

6 7290722

  • 7290722 - BOLT HEX

7 7288888

  • 7288888 - NUT HEX

8 7292509

  • 7292509 - POLYAMIDE

9 7317894

  • 7317894 - SCREW

10 7292510

  • 7292510 - WEDGE

11 7290740

  • 7290740 - FOOT BASE (RIGHT)

12 7290741

  • 7290741 - FOOT BASE (LEFT)

13 7290749

  • 7290749 - ROPE

14 7290713

  • 7290713 - SHIM RING

15 7292511

  • 7292511 - BUSHING

16 7292512

  • 7292512 - COVER

17 7292513

  • 7292513 - POLYAMIDE

18 7290774

  • 7290774 - WASHER FLAT

19 7292514

  • 7292514 - SHIM

20 7304326

  • 7304326 - WEDGE

21 7317895

  • 7317895 - SCREW

22 7304327

  • 7304327 - SCREW
