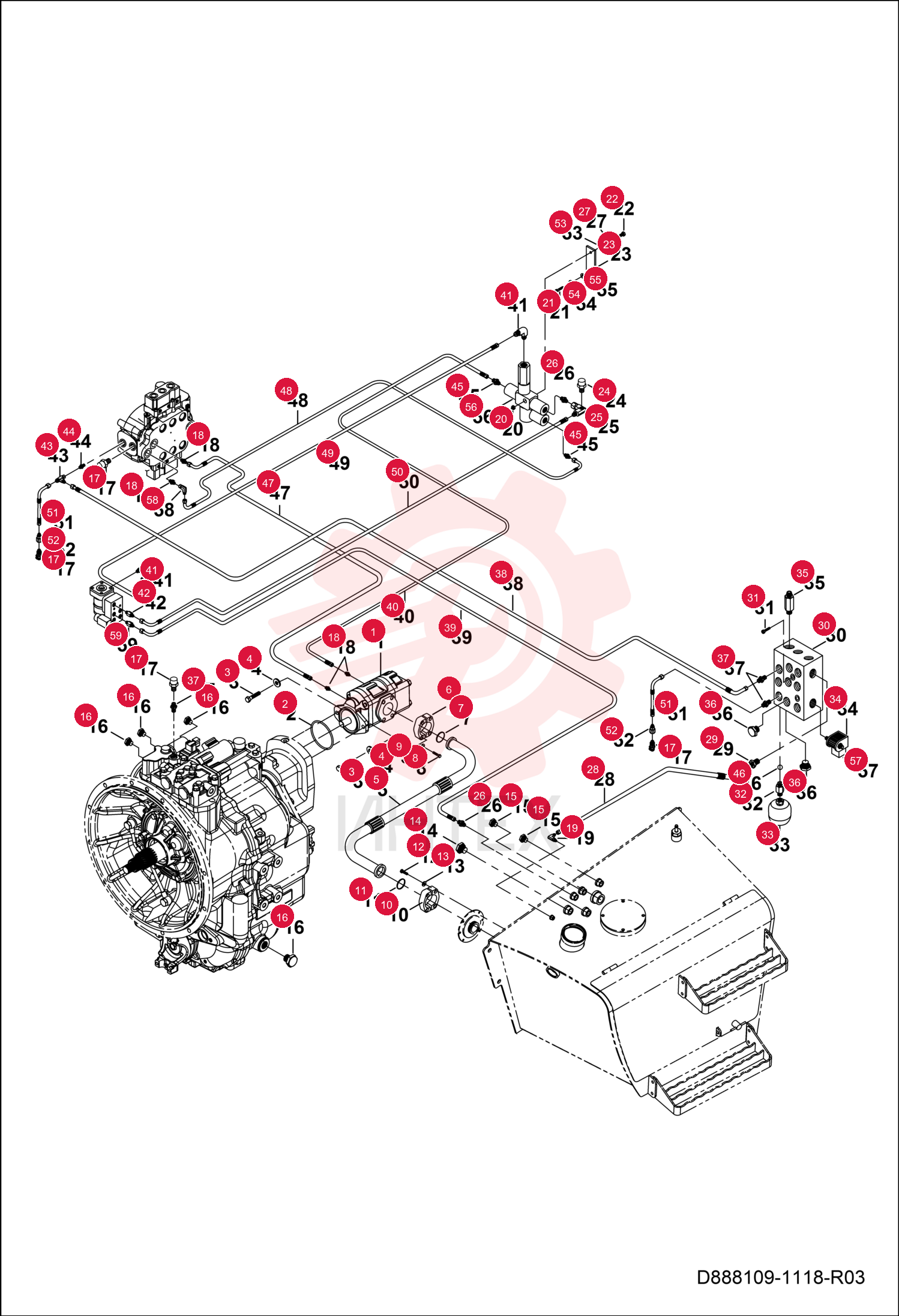

PUMP 7291463 (2)

PUMP 7291463 (2)

PUMP 7291463 (2)

1 7291463

  • 7291463 - PUMP

2 7291464

  • 7291464 - O-RING

3 7289750

  • 7289750 - BOLT HEX

4 7289751

  • 7289751 - WASHER

5 7293325

  • 7293325 - FITTING

6 7289743

  • 7289743 - FLANGE

7 7291465

  • 7291465 - O-RING

8 7289752

  • 7289752 - BOLT HEX

9 7289635

  • 7289635 - WASHER LOCK

10 7289756

  • 7289756 - FLANGE

11 7291608

  • 7291608 - O-RING

12 7289757

  • 7289757 - BOLT

13 7289758

  • 7289758 - WASHER LOCK

14 7293323

  • 7293323 - PLUG

15 7289762

  • 7289762 - PLUG DRAIN

16 7293324

  • 7293324 - PLUG

17 7292914

  • 7292914 - MINIMES

18 7289748

  • 7289748 - FITTING

19 7289829

  • 7289829 - FITTING HYDRAULIC

20 7289263

  • 7289263 - NUT HEX

21 7289849

  • 7289849 - BOLT HEX

22 7289753

  • 7289753 - BOLT

23 7299326

  • 7299326 - BRACKET

24 7291387

  • 7291387 - FITTING

25 7291386

  • 7291386 - FITTING

26 7289724

  • 7289724 - FITTING HYDRAULIC

27 7288892

  • 7288892 - WASHER FLAT

28 7293328

  • 7293328 - HOSE

29 7293287

  • 7293287 - FITTING

30 7292921

  • 7292921 - BLOCK

31 7292589

  • 7292589 - BOLT

32 7292911

  • 7292911 - ADAPTER

33 7292910

  • 7292910 - ACCUMULATOR

34 7292925

  • 7292925 - COIL

35 7292924

  • 7292924 - VALVE

36 7289761

  • 7289761 - PLUG MALE

37 7292905

  • 7292905 - FITTING

38 7293329

  • 7293329 - HOSE

39 7301987

  • 7301987 - HOSE

40 7293331

  • 7293331 - HOSE

41 7289717

  • 7289717 - FITTING HYDRAULIC

42 7289721

  • 7289721 - FITTING HYDRAULIC

43 7292897

  • 7292897 - T-FITTING

44 7289842

  • 7289842 - FITTING

45 7289740

  • 7289740 - FITTING

46 7301175

  • 7301175 - BALL

47 7293334

  • 7293334 - HOSE

48 7293335

  • 7293335 - HOSE

49 7299329

  • 7299329 - HOSE

50 7299330

  • 7299330 - HOSE

51 7292918

  • 7292918 - HOSE

52 7292919

  • 7292919 - MINIMESS ADAPTER

53 7288891

  • 7288891 - WASHER LOCK

54 7289259

  • 7289259 - WASHER LOCK

55 7288892

  • 7288892 - WASHER FLAT

56 7371066

  • 7371066 - PRIORITY VALVE

57 7292923

  • 7292923 - VALVE

58 7291467

  • 7291467 - FITTING HYDRAULIC

59 7289719

  • 7289719 - FITTING HYDRAULIC
