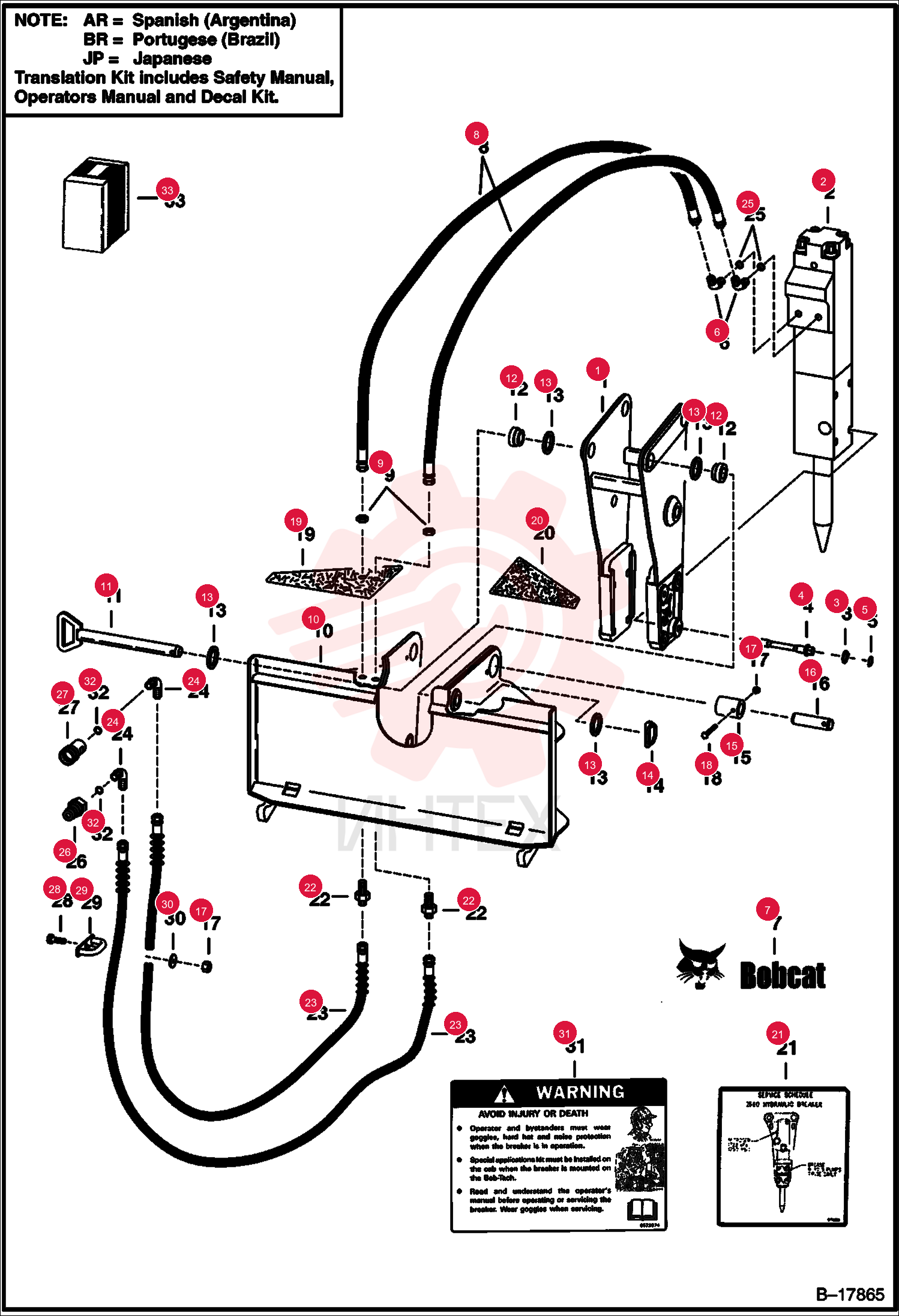

FRAME 6706764 (2)
1 6706764
- 6706764 - FRAME
2 6664545
- 6664545 - BREAKER
3 6728010
- 6728010 - WASHER
- locking - Was 6662308
4 6664544
- 6664544 - BOLT
5 6662309
- 6662309 - RING
- RETAINER
- retaining
6 18K7
- 18K7 - FITTING
- W/Ref. 25
7 6727323
- 6727323 - DECAL
- LOGO BOBCAT AND HEAD
- RH - Was 6567988
8 6727324
- 6727324 - DECAL
- LOGO BOBCAT AND HEAD
- LH - Was 6567987
9 6705737
- 6705737 - HOSE
- HYD ASSY
10 86F7
- 86F7 - NUT 5
11 6576880
- 6576880 - PIN
12 6705536
- 6705536 - BUSHING
13 6584872
- 6584872 - WASHER 5
14 6560382
- 6560382 - PIN
- LOCK
15 6707445
- 6707445 - BUSHING
- Weld-in - Use W/ Ref. 16
16 6707444
- 6707444 - PIN
- W/Bolt hole - 5"(127mm) long
17 85D6
- 85D6 - NUT PRETRQ HEX LOCK
18 17C648
- 17C648 - SCREW HEX CAP
19 6575710
- 6575710 - TREAD
- SAFETY
20 6708628
- 6708628 - DECAL
- SERVICE
- service
21 45K7
- 45K7 - CONNECTR
22 6714880
- 6714880 - HOSE
- HYD ASSY
- Was 6710460
23 17KB1012
- 17KB1012 - FITTING
- HYD ELBOW
- W/Ref. 32 - used with flush face couplers - Was 1302104B
24 17K7
- 17K7 - ELBOW
- W/Ref. 32 - used with poppet couplers
25 79K10
- 79K10 - O RING 10
26 6598757
- 6598757 - COUPLER
- POPPET MALE
- straight
27 7246777
- 7246777 - COUPLER
- FF MALE
- - Was 6674688
28 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
29 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
30 7246797
- 7246797 - COUPLER
- FF FEMALE
- - heavy duty - Was 6680017
31 6598758
- 6598758 - COUPLER FF FEMALE
- straight
32 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
33 37C652
- 37C652 - BOLT
34 6706160
- 6706160 - GUIDE
- HOSE ASSY
35 872229
- 872229 - WASHER
36 6572074
- 6572074 - DECAL
- WARNING
- warning
37 79K10
- 79K10 - O RING 10
- Use with poppet couplers
38 79K12
- 79K12 - O RING 10
- Use with flush face couplers
39 6716672AR
- 6716672AR - KIT
- DECAL
- decal - SEE NOTE
40 6716672BR
- 6716672BR - KIT
- DECAL
- decal - SEE NOTE
41 6716672JP
- 6716672JP - KIT
- DECAL
- decal - SEE NOTE
42 6716671AR
- 6716671AR - KIT
- TRANSLATION
- translation - SEE NOTE
43 6716671BR
- 6716671BR - KIT
- TRANSLATION
- translation - SEE NOTE
44 6718926AR
- 6718926AR - KIT
- DECAL
- decal - SEE NOTE-for 2 pos frame
45 6718926BR
- 6718926BR - KIT
- DECAL
- decal - SEE NOTE-for 2 pos frame
46 6718926JP
- 6718926JP - KIT
- DECAL
- decal - SEE NOTE-for 2 pos frame
47 6718925AR
- 6718925AR - KIT
- TRANSLATION
- trans - SEE NOTE-for 2 pos frame
48 6718925BR
- 6718925BR - KIT
- TRANSLATION
- trans - SEE NOTE-for 2 pos frame
