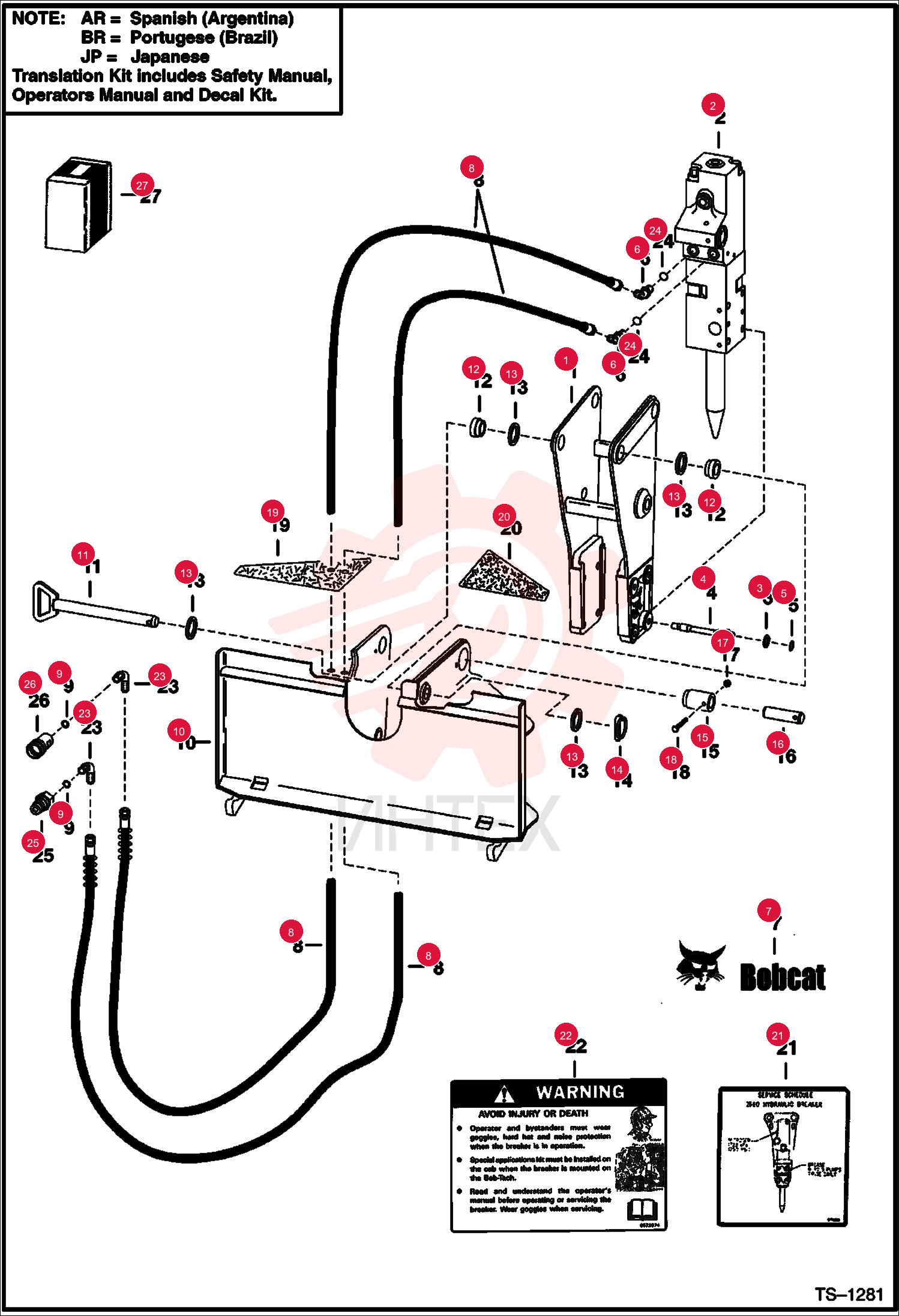

FRAME 6706764 (1)
1 6706764
- 6706764 - FRAME
2 6728010
- 6728010 - WASHER
- locking - Was 6662308
3 6664544
- 6664544 - BOLT
4 6662309
- 6662309 - RING
- RETAINER
- retaining
5 18K7
- 18K7 - FITTING
- W/Ref. 24
6 6727323
- 6727323 - DECAL
- LOGO BOBCAT AND HEAD
- RH - Was 6567988
7 6727324
- 6727324 - DECAL
- LOGO BOBCAT AND HEAD
- LH - Was 6567987
8 6709838
- 6709838 - HOSE
9 79K8
- 79K8 - O RING 10
10 6531754
- 6531754 - FRAME
- 2-POS
- mounting
11 6576880
- 6576880 - PIN
12 6705536
- 6705536 - BUSHING
13 6584872
- 6584872 - WASHER 5
14 6560382
- 6560382 - PIN
- LOCK
15 6707445
- 6707445 - BUSHING
- Weld-in - Use with Ref. 16
16 6707444
- 6707444 - PIN
- W/Bolt hole - 5"(127mm) long
17 85D6
- 85D6 - NUT PRETRQ HEX LOCK
18 17C648
- 17C648 - SCREW HEX CAP
19 6533397
- 6533397 - TREAD
- SAFETY
20 6533398
- 6533398 - TREAD
- SAFETY
21 6708628
- 6708628 - DECAL
- SERVICE
- service
22 6572074
- 6572074 - DECAL
- WARNING
- warning
23 763818
- 763818 - ELBOW
- W/Ref. 24
24 79K10
- 79K10 - O RING 10
25 7246789
- 7246789 - COUPLER FF MALE HTMA
- - Was 6667806
26 7246789EF
- 7246789EF - COUPLER FF MALE 3/8 BODY 1/2 SAE THREAD
27 7246788
- 7246788 - COUPLER
- FF FEMALE
- - straight - case drain - Was 6667805
28 7246788EF
- 7246788EF - COUPLER FF FEMALE 3/8 BDY 1/2 SAE THREAD
29 7246797
- 7246797 - COUPLER
- FF FEMALE
- - heavy duty - Was 6680017
30 6716672AR
- 6716672AR - KIT
- DECAL
- decal - SEE NOTE
31 6716672BR
- 6716672BR - KIT
- DECAL
- decal - SEE NOTE
32 6716672JP
- 6716672JP - KIT
- DECAL
- decal - SEE NOTE
33 6716671AR
- 6716671AR - KIT
- TRANSLATION
- translation - SEE NOTE
34 6716671BR
- 6716671BR - KIT
- TRANSLATION
- translation - SEE NOTE
