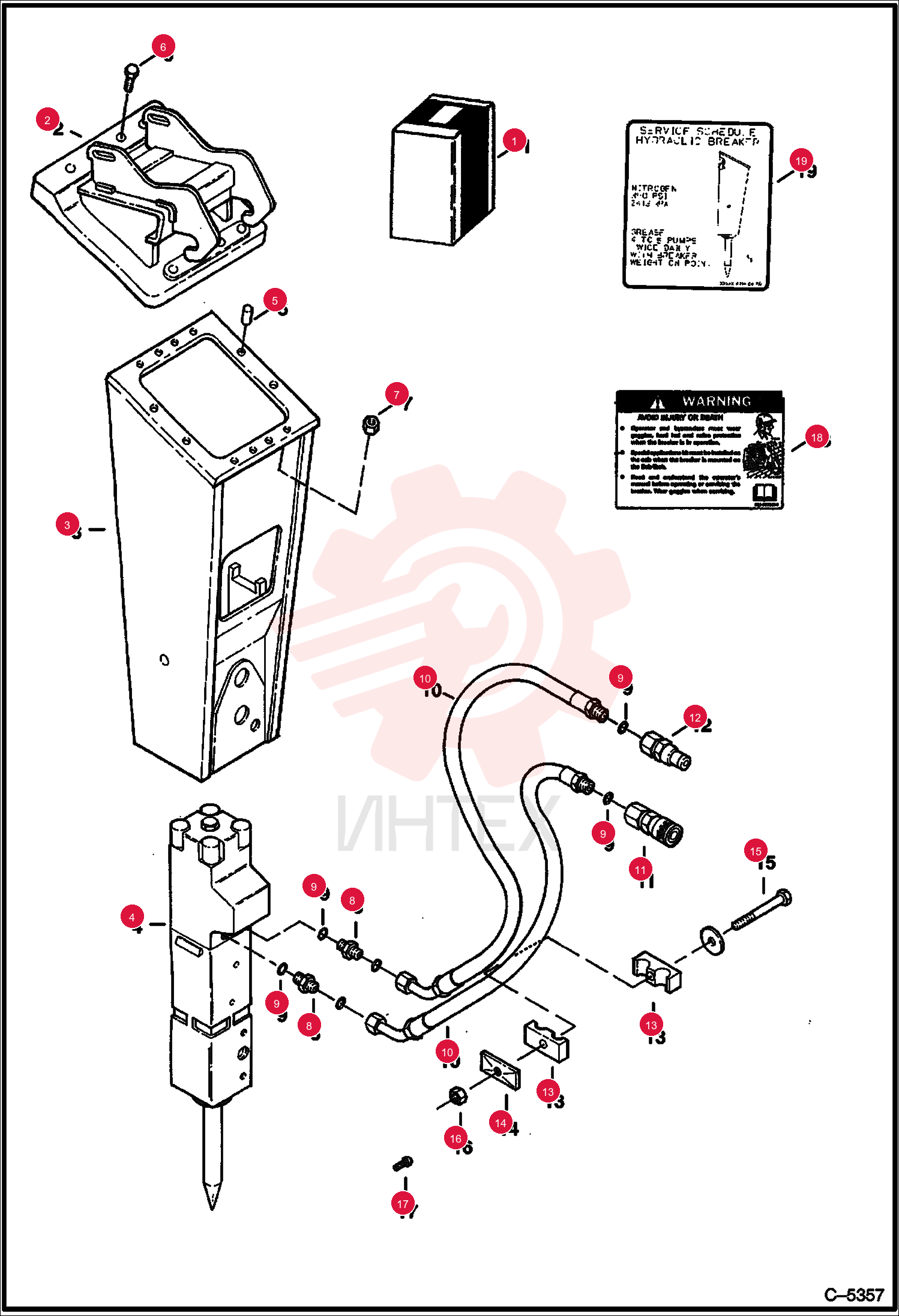

FRAME 6714415 (4)
1 6714415
- 6714415 - FRAME
- NLA - Was 6714415
2 6714286
- 6714286 - HOUSING
- Breaker Mounting
3 6714480
- 6714480 - DOWEL PIN
4 17C1448
- 17C1448 - BOLT
5 93D14
- 93D14 - NUT
6 99K12
- 99K12 - O-RING
7 97K12
- 97K12 - O-RING
- flared end
8 15KB1212
- 15KB1212 - FITTING
- HYD CONNECTOR
- W/Ref. 9 - Was 15KN00008B
9 79K12
- 79K12 - O RING 10
10 6726700
- 6726700 - HOSE
- 341 only - NOT IN KIT - W/Ref. 9
11 6715085
- 6715085 - HOSE
- 337 only - W/Ref. 9
12 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
13 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
14 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
15 7246777
- 7246777 - COUPLER
- FF MALE
- - straight - Was 6674688
16 7248556
- 7248556 - CLAMP
- HOSE
- Was 6595353
17 6595356
- 6595356 - COVER
- PLATE
18 17C652
- 17C652 - BOLT
19 95D6
- 95D6 - NUT HEXAGON
20 6C404
- 6C404 - SCREW
21 6572074
- 6572074 - DECAL
- WARNING
- Warning
22 6714104
- 6714104 - DECAL
- SERVICE
- Service Schedule
