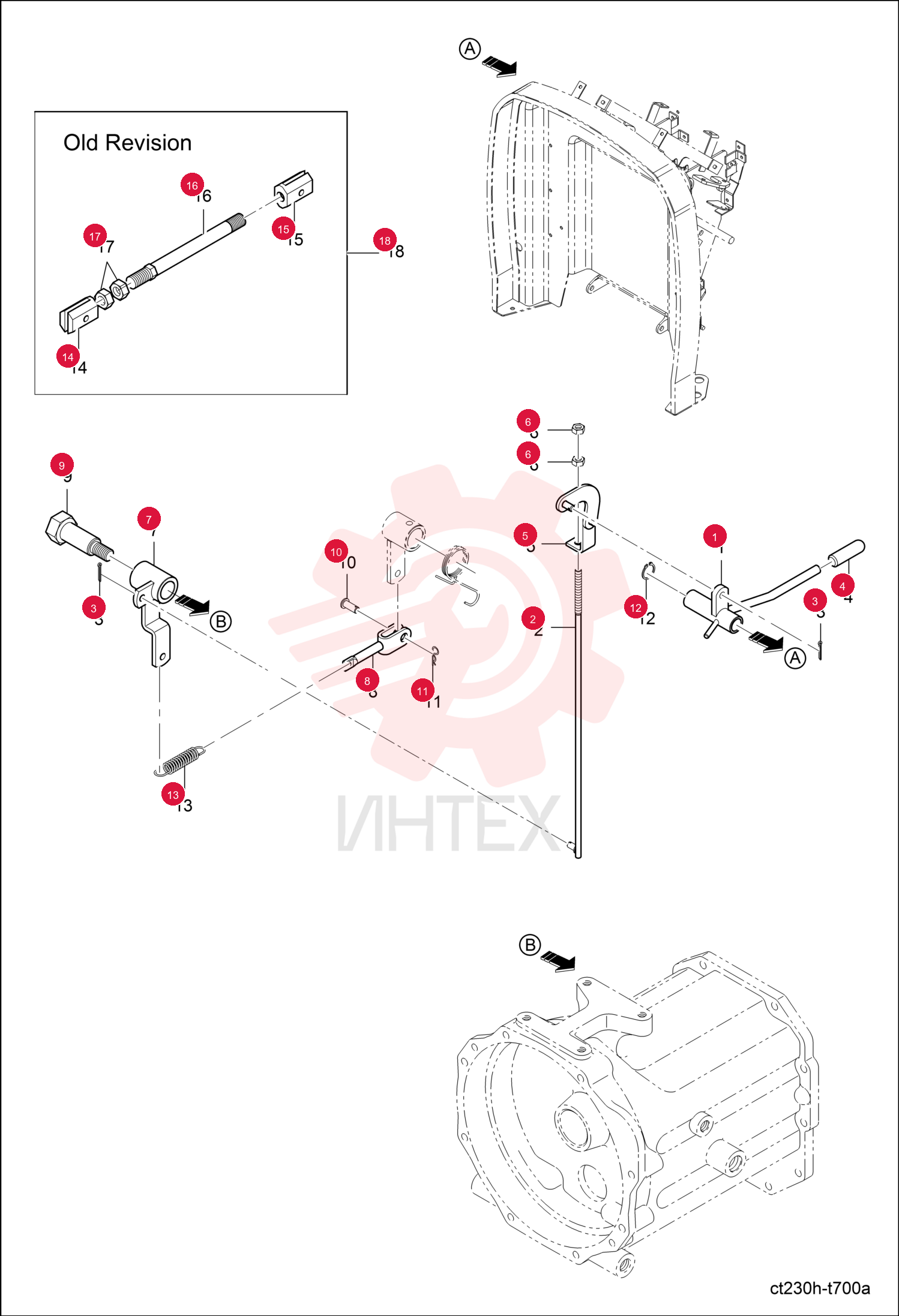

LEVER, SET 7001050

LEVER, SET 7001050

LEVER, SET 7001050

1 7001050

  • 7001050 - LEVER
  • SET
  • cruise control - Was 6698318

2 6696504

  • 6696504 - ROD

3 6694208

  • 6694208 - PIN SPLIT

4 6697302

  • 6697302 - HANDLE GRIP

5 6697000

  • 6697000 - LINK ASSEMBLY

6 6694040

  • 6694040 - NUT

7 6697004

  • 6697004 - ARM

8 7000265

  • 7000265 - ROD
  • CONNECTING

9 6696213

  • 6696213 - BOLT LOCK (HST PEDAL)

10 6694183

  • 6694183 - PIN JOINT

11 6694211

  • 6694211 - PIN
  • SNAP

12 6694117

  • 6694117 - RING SNAP

13 7000832

  • 7000832 - SPRING
  • EXTENSION

14 6697564

  • 6697564 - ROD
  • END

15 6697567

  • 6697567 - ROD END

16 6652792

  • 6652792 - NUT
  • Was 6694053

17 6696523

  • 6696523 - ROD
  • THREADED ASSY
  • Ref. 14-17
