Bobcat
/
CT225
/

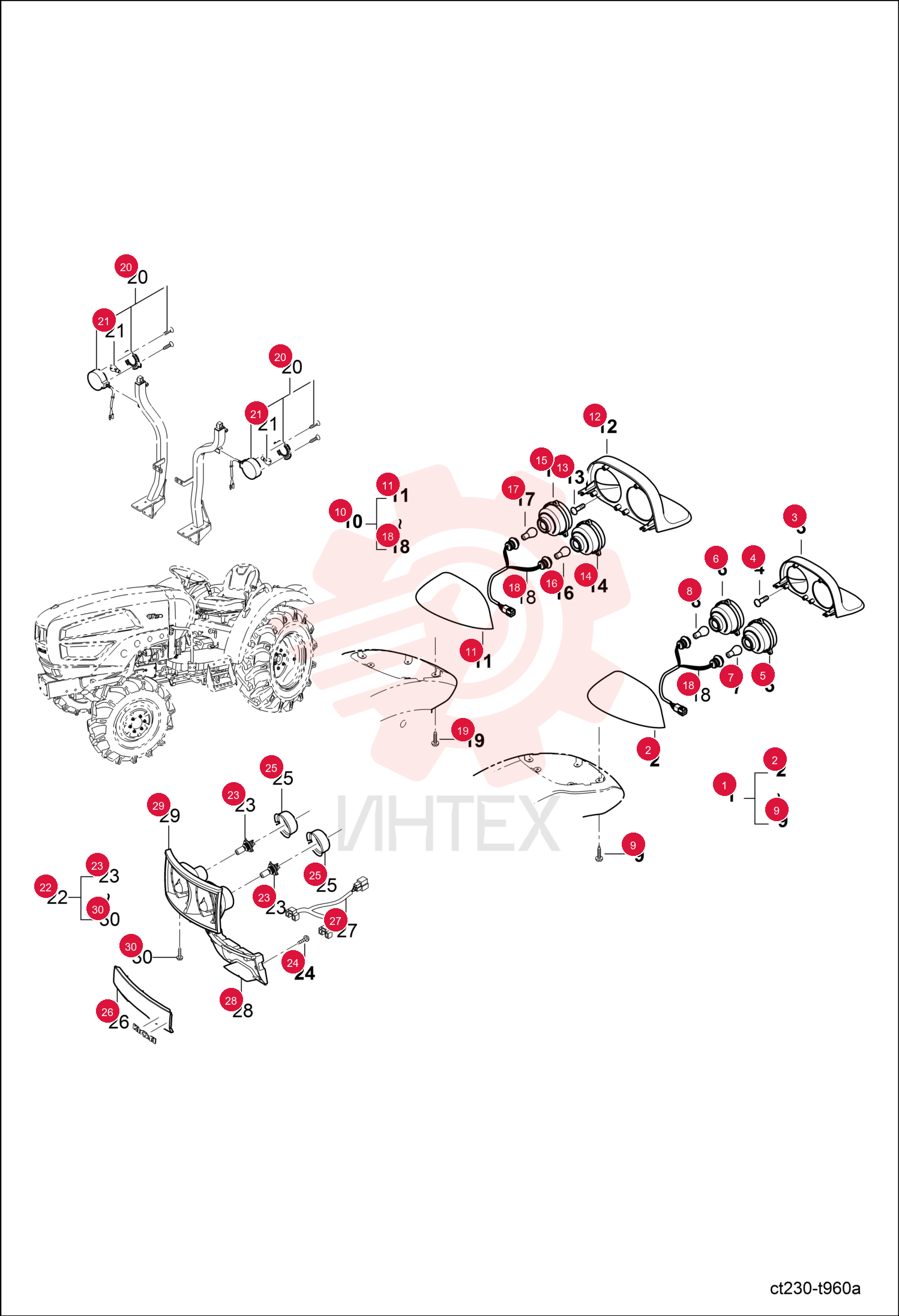

LIGHT, TAIL LH 6697438 (1)

LIGHT, TAIL LH 6697438 (1)

LIGHT, TAIL LH 6697438 (1)

1 6697438

  • 6697438 - LIGHT
  • TAIL LH

2 6697175

  • 6697175 - COVER
  • REAR LAMP LH

3 6697174

  • 6697174 - COVER REAR LAMP LH

4 6694386

  • 6694386 - SCREW

5 6696471

  • 6696471 - LIGHT
  • REAR TURN SIGNAL
  • yellow

6 6697437

  • 6697437 - LIGHT
  • STOP TAIL
  • red

7 6695646

  • 6695646 - LIGHT
  • BULB 12V P21W

8 6695645

  • 6695645 - LIGHT
  • BULB 12V P21/5W

9 6694386

  • 6694386 - SCREW

10 6697440

  • 6697440 - LIGHT
  • TAIL RH

11 6697176

  • 6697176 - COVER
  • REAR LAMP RH

12 6697177

  • 6697177 - COVER REAR LAMP RH

13 6694386

  • 6694386 - SCREW

14 6696471

  • 6696471 - LIGHT
  • REAR TURN SIGNAL
  • yellow

15 6697437

  • 6697437 - LIGHT
  • STOP TAIL
  • red

16 6695646

  • 6695646 - LIGHT
  • BULB 12V P21W

17 6695645

  • 6695645 - LIGHT
  • BULB 12V P21/5W

18 6696936

  • 6696936 - HARNESS
  • LIGHT REAR

19 6694386

  • 6694386 - SCREW

20 6697433

  • 6697433 - LIGHT
  • HAZARD

21 6697431

  • 6697431 - LIGHT
  • BULB 12V 21W

22 6697434

  • 6697434 - LIGHT
  • HEAD

23 6695651

  • 6695651 - LIGHT
  • BULB 12V35/35W

24 6694386

  • 6694386 - SCREW

25 6695882

  • 6695882 - COVER DUST

26 7256371

  • 7256371 - WIRE
  • HEADLIGHT
  • Mesh Screen - Was 6697787

27 6696935

  • 6696935 - HARNESS
  • LIGHT HEAD

28 6697295

  • 6697295 - FRAME
  • GRILL LIGHT

29 6697369

  • 6697369 - HOUSING
  • HEAD LAMP

30 6697611

  • 6697611 - SCREW
