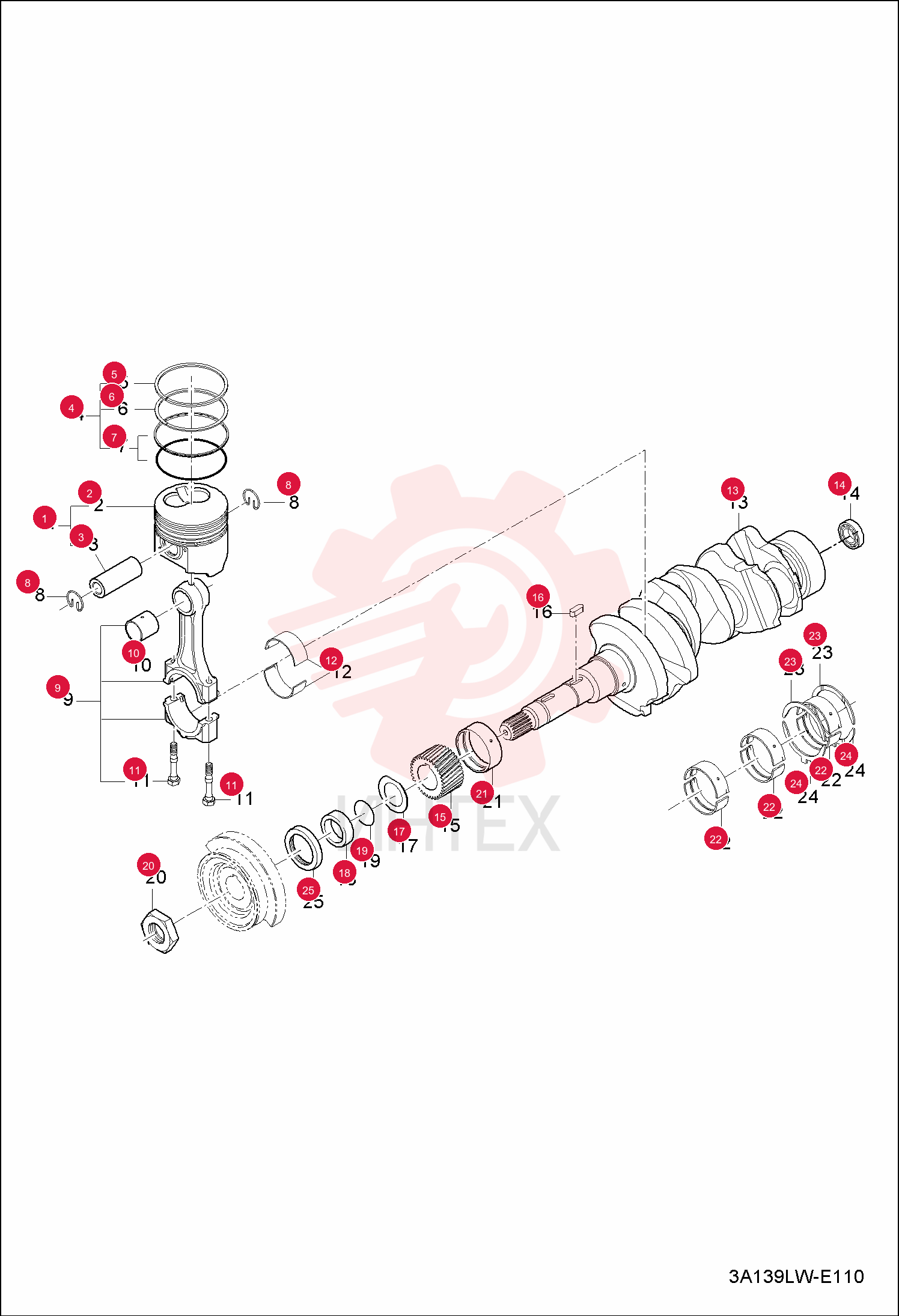

PISTON, ENG 7012669
1 7012669
- 7012669 - PISTON
- ENG
- W/Ref. 3
2 6696403
- 6696403 - PISTON
- PIN
3 7000296
- 7000296 - RING
- OIL ENG
- set - Ref. 5-7
4 7000297
- 7000297 - RING
- PISTON
5 7000298
- 7000298 - RING
- PISTON
6 7000299
- 7000299 - RING
- OIL ENG
7 6695721
- 6695721 - CLIP CIR
8 6695792
- 6695792 - CONNECTOR
- ASSY
- Was 6697573
9 6695664
- 6695664 - BUSHING
- PIN PISTON
10 6697076
- 6697076 - BOLT ROD
11 6695852
- 6695852 - BEARING CRANK PIN
- width .827" (21mm) x length 1.99" (50
- 5mm) - Was 6696229 .745" (18
- 9mm) x length 1.89" (48mm)
12 6695405
- 6695405 - CRANKSHAFT
13 6695459
- 6695459 - BEARING BALL
14 6696010
- 6696010 - GEAR CRANKSHAFT
15 6696169
- 6696169 - KEY
16 6696298
- 6696298 - PUMP
- SLINGER OIL
17 6695758
- 6695758 - BUSHING
- CRANKSHAFT
18 3974577
- 3974577 - O-RING
- Was 6696273
19 6695858
- 6695858 - NUT CRANKSHAFT
20 6695856
- 6695856 - BEARING CRANKSHAFT
21 6695857
- 6695857 - BEARING CRANKSHAFT
22 6696679
- 6696679 - BEARING
- THRUST
23 6696680
- 6696680 - BEARING THRUST
24 6696296
- 6696296 - SEAL OIL
