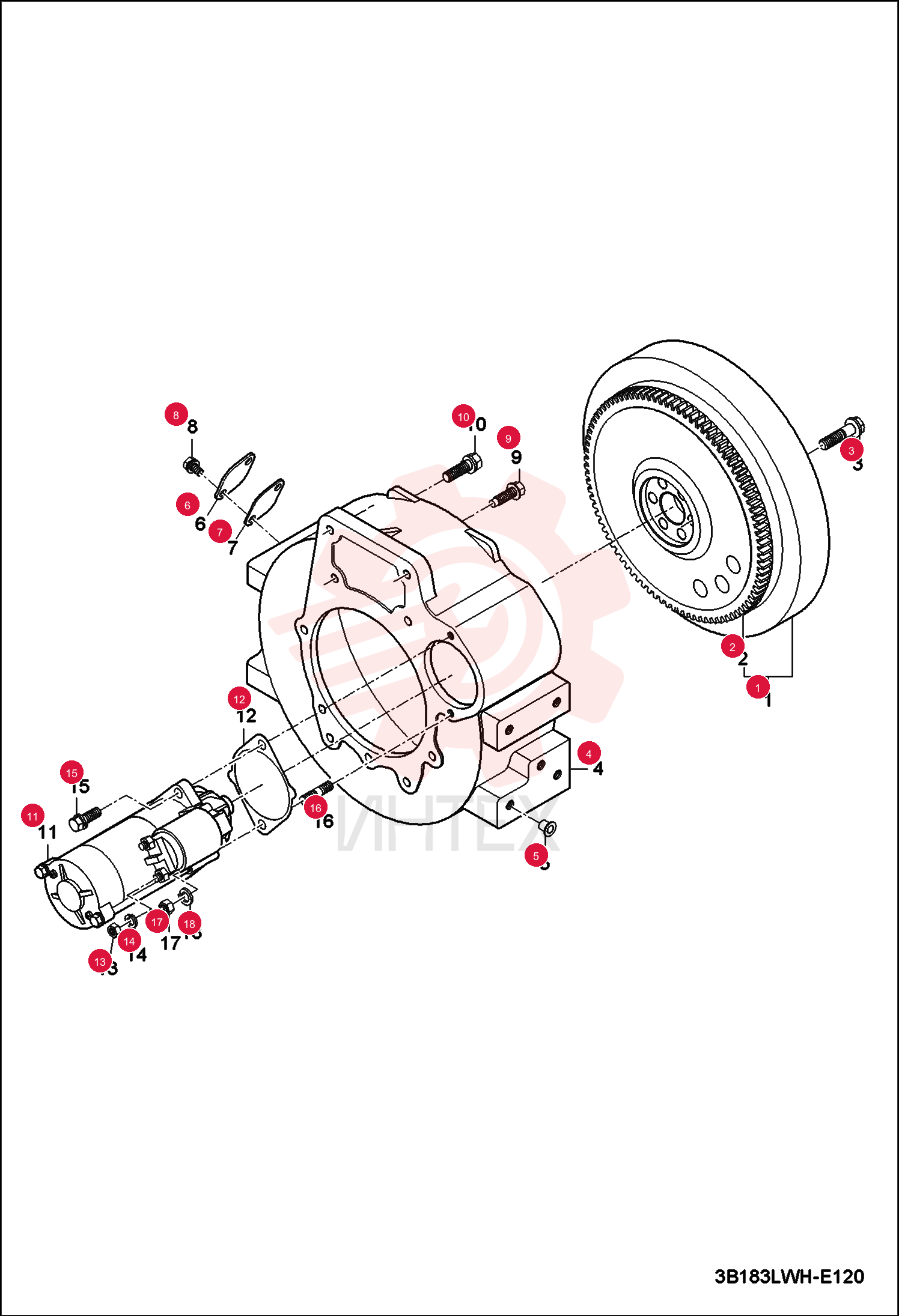

FLYWHEEL ENGINE ASSEMBLY 7020373 (2)

FLYWHEEL ENGINE ASSEMBLY 7020373 (2)

FLYWHEEL ENGINE ASSEMBLY 7020373 (2)

1 7020373

  • 7020373 - FLYWHEEL ENGINE ASSEMBLY
  • W/Ref. 2 - Was 7002153

2 7002847

  • 7002847 - GEAR
  • RING STARTER
  • Was 6696485

3 7002177

  • 7002177 - BOLT
  • FLYWHEEL

4 7002831

  • 7002831 - HOUSING
  • FLYWHEEL
  • Was 7002178

5 6694351

  • 6694351 - PLUG

6 6695806

  • 6695806 - COVER

7 6695944

  • 6695944 - GASKET

8 6694027

  • 6694027 - BOLT FLANGE
  • Was 6697053

9 6697072

  • 6697072 - BOLT FLANGE

10 6693988

  • 6693988 - BOLT

11 7010574

  • 7010574 - STARTER
  • Was 6695348

12 7002846

  • 7002846 - GASKET
  • Was 6695950

13 6697459

  • 6697459 - NUT
  • Was 6694053

14 6697775

  • 6697775 - WASHER SPRING

15 6693982

  • 6693982 - BOLT

16 6696777

  • 6696777 - STUD

17 27DM10

  • 27DM10 - NUT
  • Was 6694059

18 6694093

  • 6694093 - WASHER SPRING
