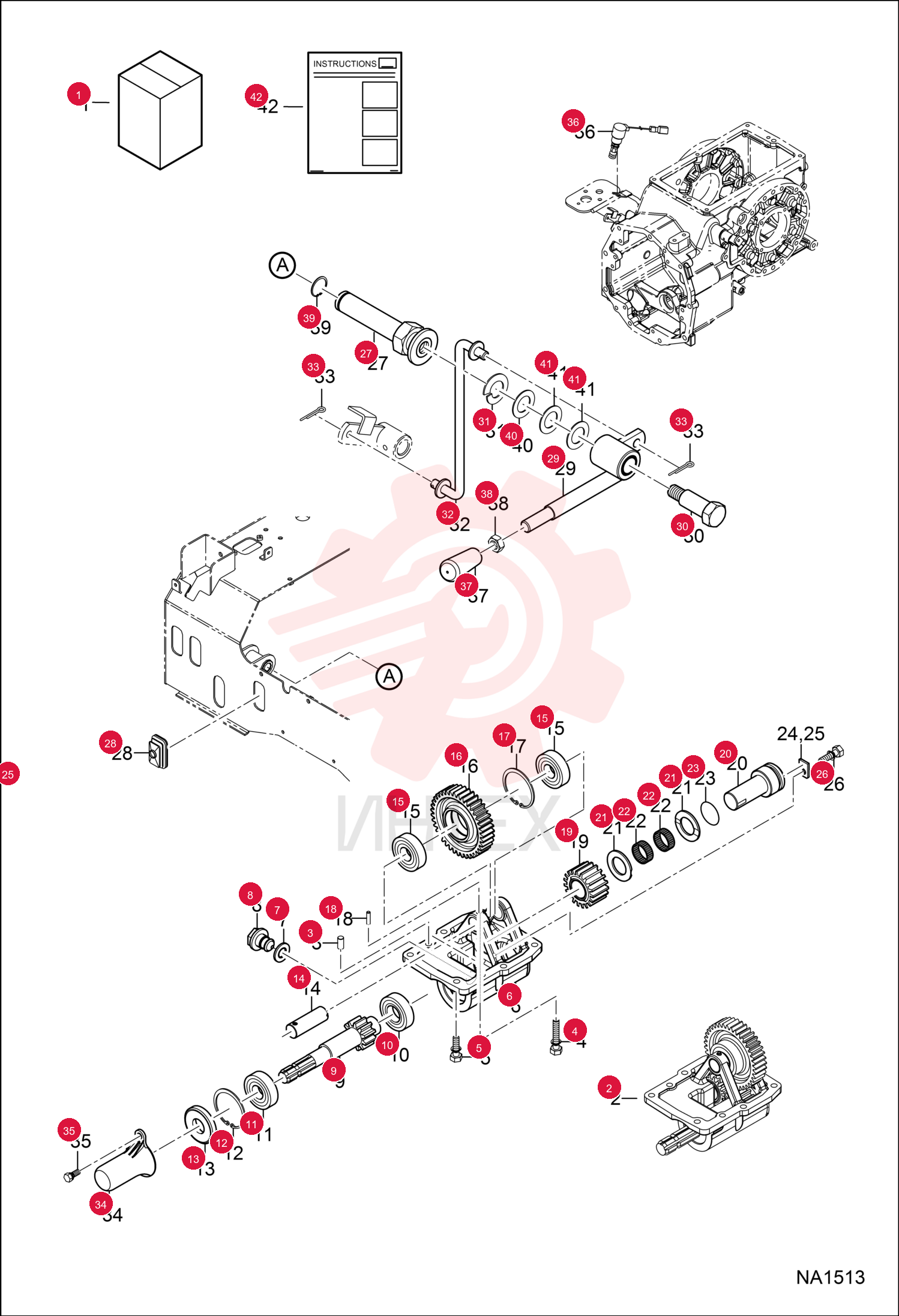

KIT, PTO MID 7188742 (3)

KIT, PTO MID 7188742 (3)

KIT, PTO MID 7188742 (3)

1 7188742

  • 7188742 - KIT
  • PTO MID
  • Ref. 2-42

2 7012639

  • 7012639 - PTO
  • MID
  • Ref. 6-26

3 6694171

  • 6694171 - PIN STRAIGHT

4 6695516

  • 6695516 - BOLT

5 6693982

  • 6693982 - BOLT

6 7013108

  • 7013108 - HOUSING
  • MID PTO

7 6694129

  • 6694129 - WASHER SEAL

8 6697538

  • 6697538 - PLUG

9 7013109

  • 7013109 - SHAFT

10 7002056

  • 7002056 - BEARING
  • BALL

11 6694241

  • 6694241 - BEARING BALL

12 6694100

  • 6694100 - RING SNAP

13 6696576

  • 6696576 - SEAL OIL

14 7001962

  • 7001962 - SHAFT
  • COUNTER MID PTO

15 7002057

  • 7002057 - BEARING
  • BALL

16 7002559

  • 7002559 - GEAR

17 6694100

  • 6694100 - RING SNAP

18 6694200

  • 6694200 - PIN SPRING

19 7013110

  • 7013110 - GEAR

20 7013111

  • 7013111 - SHAFT

21 6695752

  • 6695752 - BUSHING THRUST

22 6694272

  • 6694272 - BEARING NEEDLE

23 6696269

  • 6696269 - SEAL O RING

24 7012895

  • 7012895 - STOP
  • LEVER

25 7012896

  • 7012896 - STOP
  • LEVER

26 6697053

  • 6697053 - BOLT

27 7010533

  • 7010533 - SHAFT
  • PTO MID

28 7002501

  • 7002501 - BOOT

29 7002921

  • 7002921 - LEVER

30 7001963

  • 7001963 - SHAFT
  • LEVER MID PTO

31 6694093

  • 6694093 - WASHER SPRING

32 7010534

  • 7010534 - ROD
  • PTO MID
  • for cab models

33 7002014

  • 7002014 - ROD
  • PTO MID
  • for ROPS models

34 6697496

  • 6697496 - PIN SNAP

35 6698016

  • 6698016 - COVER

36 6694027

  • 6694027 - BOLT FLANGE

37 6697718

  • 6697718 - SWITCH SAFETY STARTER
  • PTO

38 7002924

  • 7002924 - HANDLE
  • GRIP

39 27DM10

  • 27DM10 - NUT
  • Was 6694059

40 6697562

  • 6697562 - RING SNAP

41 6696911

  • 6696911 - WASHER
  • PLAIN

42 6696916

  • 6696916 - WASHER PLAIN

43 6987098

  • 6987098 - INSTRUCTIONS
