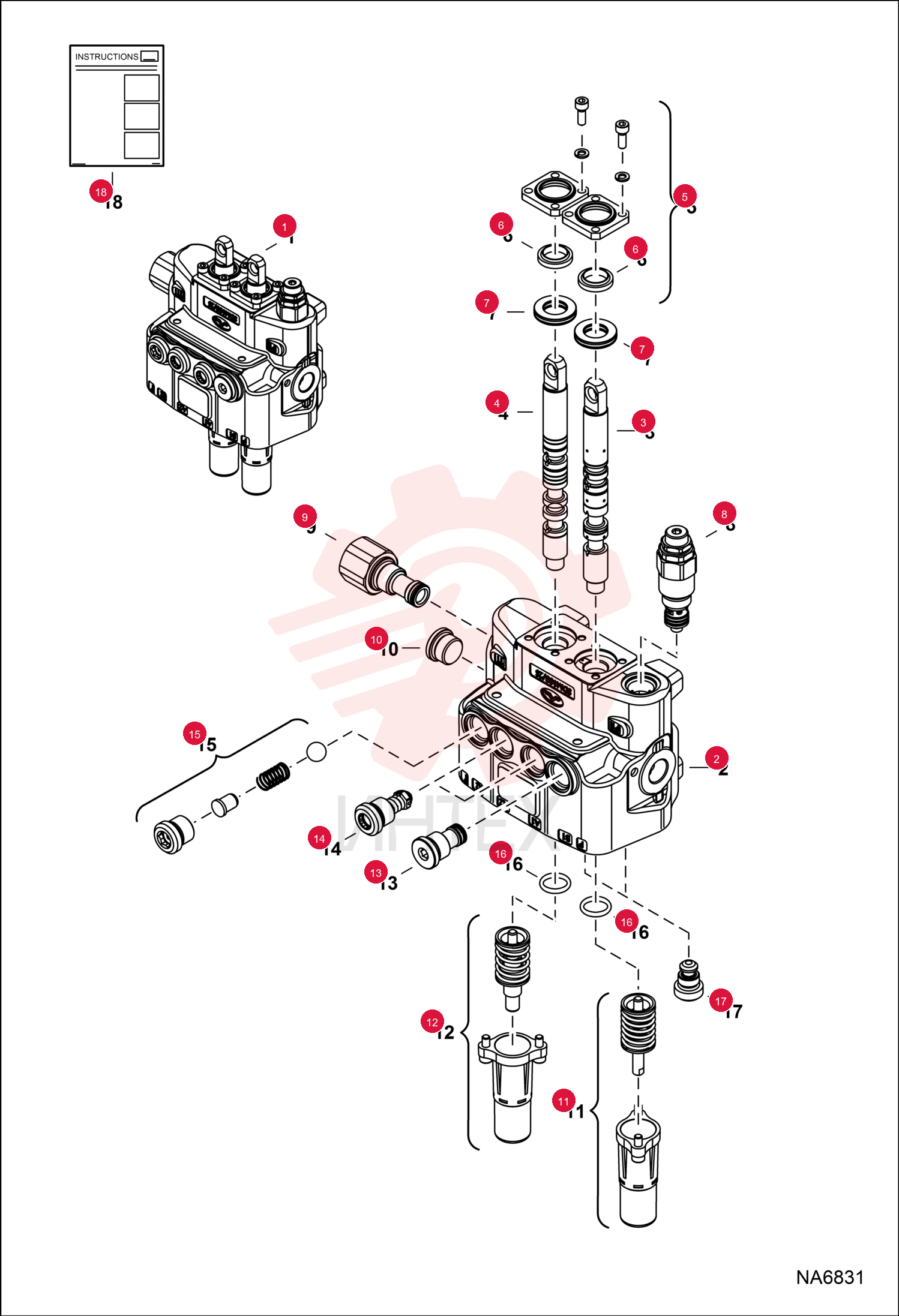

VALVE, MULTI-FUNCTION 7212674 (1)

VALVE, MULTI-FUNCTION 7212674 (1)

VALVE, MULTI-FUNCTION 7212674 (1)

1 7212674

  • 7212674 - VALVE
  • MULTI-FUNCTION
  • Ref. 2-17 - Also Order Ref. 18 instructions - Was 7220958

2 7025565

  • 7025565 - KIT
  • FLANGE

3 7025566

  • 7025566 - SEAL
  • SHAFT

4 7025598

  • 7025598 - RING
  • SEAL

5 7025567

  • 7025567 - VALVE
  • RELIEF MAIN

6 7025568

  • 7025568 - FITTING
  • HYD

7 6679600

  • 6679600 - PLUG

8 7025569

  • 7025569 - KIT
  • COVER END

9 7025570

  • 7025570 - KIT
  • COVER END

10 7025571

  • 7025571 - PLUG

11 7025572

  • 7025572 - VALVE
  • RELIEF PORT

12 7025573

  • 7025573 - KIT
  • VALVE RELIEF PORT

13 6679499

  • 6679499 - O-RING

14 6680092

  • 6680092 - VALVE
  • LOCK LOAD

15 6990452

  • 6990452 - INSTRUCTIONS
