Bobcat
/
CT445
/

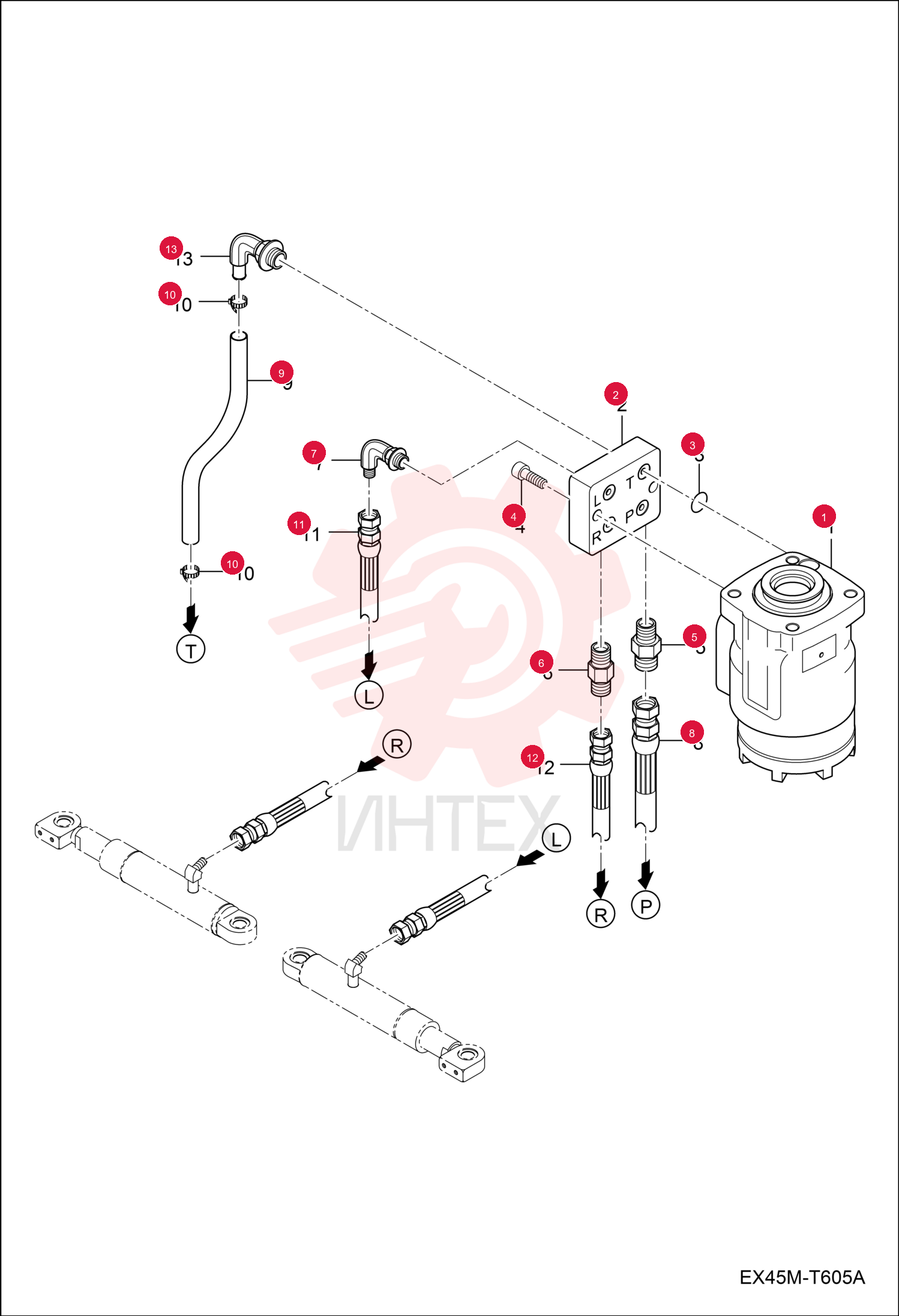

PUMP, STRG POWER 7250060 (2)

PUMP, STRG POWER 7250060 (2)

PUMP, STRG POWER 7250060 (2)

1 7250060

  • 7250060 - PUMP
  • STRG POWER
  • Was 7002902

2 7002317

  • 7002317 - BLOCK
  • PORT

3 6694138

  • 6694138 - O-RING

4 6695572

  • 6695572 - BOLT HEXAGON SOCKET

5 7002037

  • 7002037 - FITTING
  • ADAPTER

6 6695788

  • 6695788 - FITTING
  • ADAPTER

7 6695886

  • 6695886 - FITTING
  • ELBOW

8 7002226

  • 7002226 - HOSE
  • HYD

9 7013001

  • 7013001 - HOSE
  • HYD

10 6694394

  • 6694394 - BAND HOSE

11 7002894

  • 7002894 - HOSE
  • STEERING

12 7002895

  • 7002895 - HOSE
  • STEERING

13 7013128

  • 7013128 - ELBOW
