Bobcat
/
CT445
/

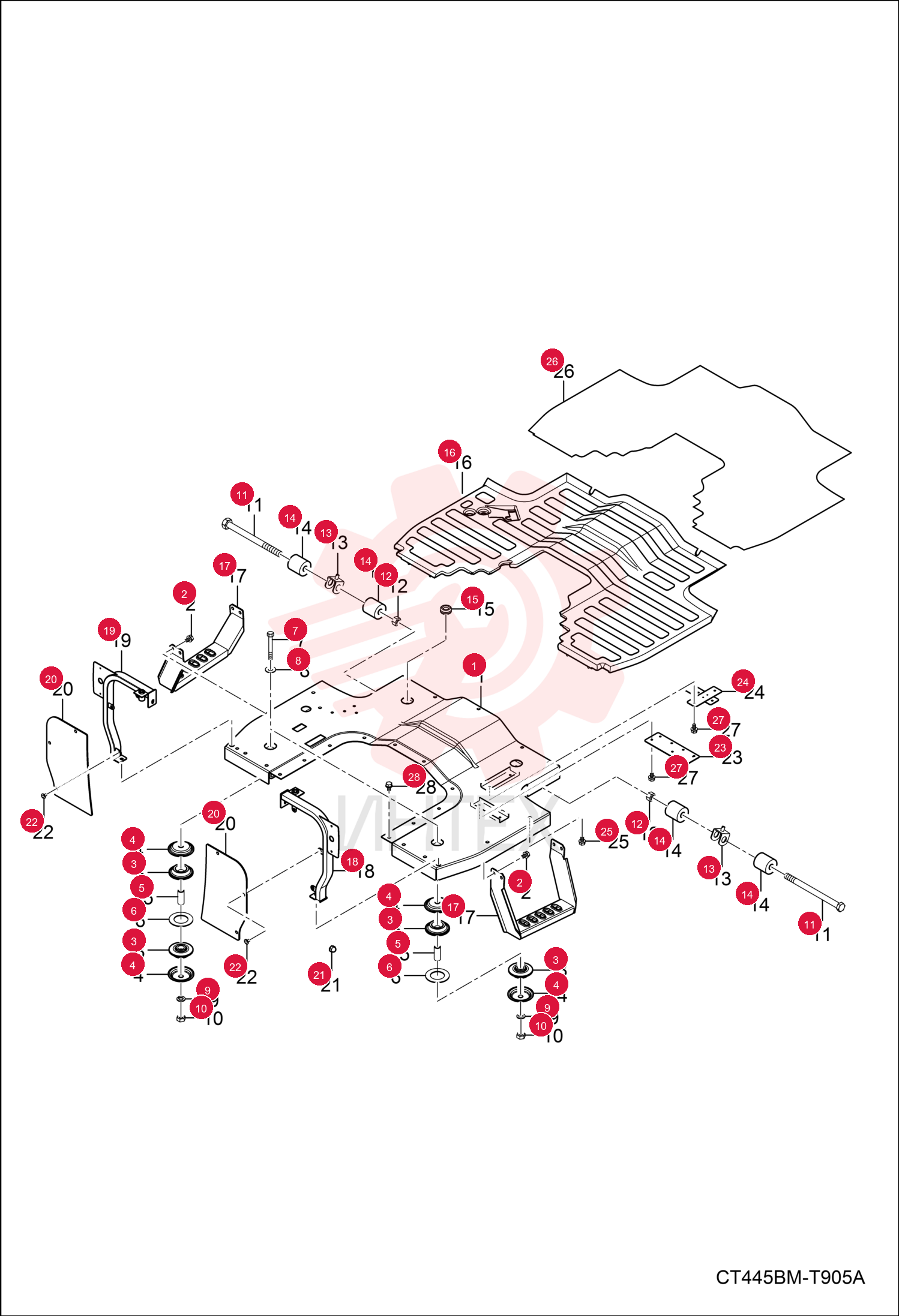

PLATE, FLOOR 7013057 (2)

PLATE, FLOOR 7013057 (2)

PLATE, FLOOR 7013057 (2)

1 7013057

  • 7013057 - PLATE
  • FLOOR

2 6694027

  • 6694027 - BOLT FLANGE

3 6697202

  • 6697202 - WASHER
  • CUSHION

4 6697677

  • 6697677 - STOP

5 6696704

  • 6696704 - SPACER

6 7002523

  • 7002523 - COLLAR

7 6694004

  • 6694004 - BOLT

8 7002315

  • 7002315 - WASHER
  • PLAIN

9 6694094

  • 6694094 - WASHER SPRING

10 6694044

  • 6694044 - NUT

11 6694061

  • 6694061 - NUT

12 7002493

  • 7002493 - BOLT

13 7002519

  • 7002519 - BRACKET

14 6697201

  • 6697201 - BUSHING CUSHION

15 6696060

  • 6696060 - GROMMET

16 7013029

  • 7013029 - MAT
  • STEP

17 7002681

  • 7002681 - STEP

18 7013104

  • 7013104 - SHIELD
  • LH

19 7013105

  • 7013105 - SHIELD
  • RH

20 7002625

  • 7002625 - PLATE

21 6695694

  • 6695694 - CAP
  • NUT

22 6695597

  • 6695597 - BOLT
  • RIVET

23 7002210

  • 7002210 - PLATE
  • HARNESS

24 7002211

  • 7002211 - PLATE
  • HARNESS

25 6695557

  • 6695557 - BOLT

26 7002176

  • 7002176 - PAD

27 6694026

  • 6694026 - BOLT FLANGE

28 6695569

  • 6695569 - BOLT FLANGE
